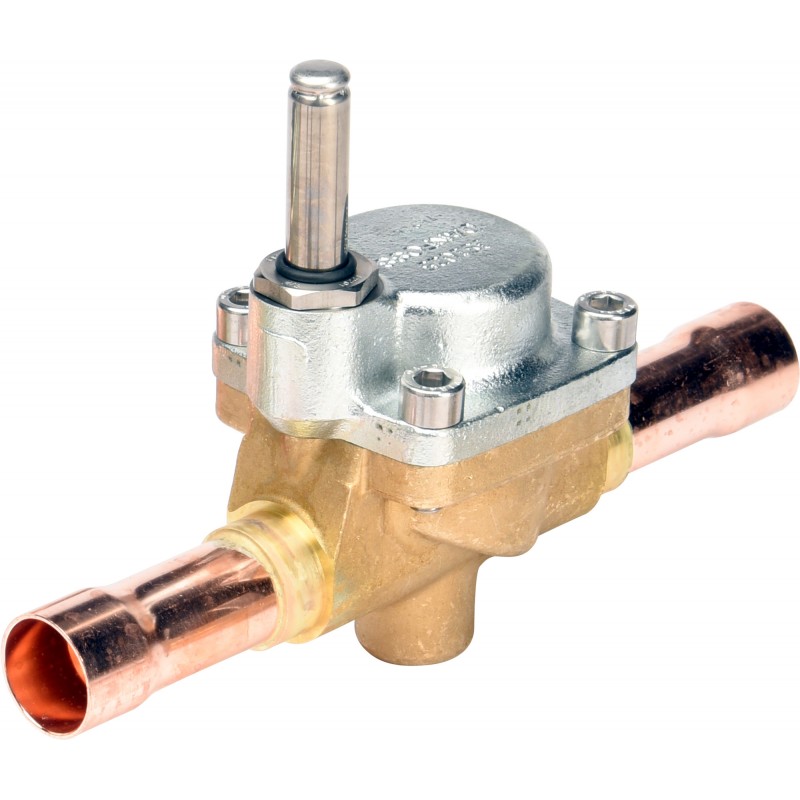

032L8134 DANFOSS REFRIGERATION Solenoid valve, EVR 25, 1 3/8 in, 9.8 m³/h, Function: NO
032L8134
DANFOSS REFRIGERATION
Solenoid valve, EVR 25, 1 3/8 in, 9.8 m³/h, Function: NO
Home > DANFOSS REFRIGERATION
Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS REFRIGERATION
Best sellers
▲More info
▲Inlet connection type: Solder, ODF, Outlet connection type: Solder, ODF, Body material: Brass, Max. Working Pressure [bar]: 45.2, Manual operation option: No, Packing format: Single pack, Quantity per packing format: 1
Product details
| Gross weight | 3.211 Kilogram |
| Net weight | 2.813 Kilogram |
| Volume | 11.246 Liter |
| EAN | 5702428949798 |
| Type | EVR 25 |
| Product group | Solenoid valves |
| Product Name Description | Solenoid valve |
| Gross weight | 3.211 Kilogram |
| Net weight | 2.813 Kilogram |
| Volume | 11.246 Liter |
| EAN | 5702428949798 |
| Type | EVR 25 |
| Product group | Solenoid valves |
| Product Name Description | Solenoid valve |
| Actuator system [mm] | 13.5 mm |
| Ambient temperature | -40 - 80 °C |
| Ambient temperature range [°F] [max] | 175 °F |
| Ambient temperature range [°F] [min] | -40 °F |
| Approval | UL |
| Body material | Brass |
| China RoHS compliance | Yes with exemptions |
| China RoHS exemption clause | 7.1 7.3 |
| Coil | No |
| Contains batteries | No |
| Cv value [gal/min] | 11.3 gal/min |
| Direction | Straightway |
| EU RoHS compliance | Yes with exemptions |
| EU RoHS exemption clause | 6(a) 6(c) |
| Function | NO |
| Inlet connection type | Solder, ODF |
| Inlet size [in] | 1 3/8 in |
| Kv value [m³/h] | 9.8 m³/h |
| Lubricants compatibility | AB MO PAG PAO POE PVE |
| Manual operation option | No |
| Max. Working Pressure [bar] | 45.2 bar |
| Max. Working Pressure [psig] | 655 psig |
| MaxOPD[bar] 10W AC | 21 bar |
| MaxOPD[bar] 20W DC | 21 bar |
| MaxOPD[bar] coil BJ/BX | 21 bar |
| MaxOPD[psi] 10W AC | 305 psi |
| MaxOPD[psi] 14W AC | 305 psi |
| MaxOPD[psi] 20W DC | 305 psi |
| MaxOPD[psi] coil BJ/BX | 305 psi |
| Medium temp. range note | Defrost max 130°C/265°F |
| Medium temperature range [°C] [max] | 105 °C |
| Medium temperature range [°C] [min] | -40 °C |
| Medium temperature range [°F] [max] | 221 °F |
| Medium temperature range [°F] [min] | -40 °F |
| MinODP [bar] | 0.2 bar |
| MinODP [psi] | 2.9 psi |
| Orifice size [mm] | 25 mm |
| Outlet connection type | Solder, ODF |
| Outlet size [in] | 1 3/8 in |
| Packing format | Single pack |
| Parts Program name | EVR |
| Product accessories | Solenoid valve accessories |
| Quantity per packing format | 1 pc |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| Refrigerants | R1234ze(E) R125 R134a R22 R404A R407A R407C R407F R410A R417A R448A R449A R450A R452A R507A R515B R513A |
| SCIP dossier no. | 95debbe1-872f-4331-8148-b4a92f85f8c0 |
| SCIP dossier product name | EVR 10-22 |
| Serviceable | Solenoid valve spare parts |
| Type designation | Solenoid valve, Solder |
| UL approved refrigerants | R125 R134a R152a R22 R404A R407A R407C R407F R410A R417A R448A R449A R450A R452A R507A R515B R290 R513A R600 R600a R1234ze(E) R452B R454B R32 R454A R454C R455A |
| UL mark | Yes |
| Valve operation | Servo-piston |
| Actuator system [mm] | 13.5 mm |
| Ambient temperature | -40 - 80 °C |
| Ambient temperature range [°F] [max] | 175 °F |
| Ambient temperature range [°F] [min] | -40 °F |
| Approval | UL |
| Body material | Brass |
| China RoHS compliance | Yes with exemptions |
| China RoHS exemption clause | 7.1 7.3 |
| Coil | No |
| Contains batteries | No |
| Cv value [gal/min] | 11.3 gal/min |
| Direction | Straightway |
| EU RoHS compliance | Yes with exemptions |
| EU RoHS exemption clause | 6(a) 6(c) |
| Function | NO |
| Inlet connection type | Solder, ODF |
| Inlet size [in] | 1 3/8 in |
| Kv value [m³/h] | 9.8 m³/h |
| Lubricants compatibility | AB MO PAG PAO POE PVE |
| Manual operation option | No |
| Max. Working Pressure [bar] | 45.2 bar |
| Max. Working Pressure [psig] | 655 psig |
| MaxOPD[bar] 10W AC | 21 bar |
| MaxOPD[bar] 20W DC | 21 bar |
| MaxOPD[bar] coil BJ/BX | 21 bar |
| MaxOPD[psi] 10W AC | 305 psi |
| MaxOPD[psi] 14W AC | 305 psi |
| MaxOPD[psi] 20W DC | 305 psi |
| MaxOPD[psi] coil BJ/BX | 305 psi |
| Medium temp. range note | Defrost max 130°C/265°F |
| Medium temperature range [°C] [max] | 105 °C |
| Medium temperature range [°C] [min] | -40 °C |
| Medium temperature range [°F] [max] | 221 °F |
| Medium temperature range [°F] [min] | -40 °F |
| MinODP [bar] | 0.2 bar |
| MinODP [psi] | 2.9 psi |
| Orifice size [mm] | 25 mm |
| Outlet connection type | Solder, ODF |
| Outlet size [in] | 1 3/8 in |
| Packing format | Single pack |
| Parts Program name | EVR |
| Product accessories | Solenoid valve accessories |
| Quantity per packing format | 1 pc |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| Refrigerants | R1234ze(E) R125 R134a R22 R404A R407A R407C R407F R410A R417A R448A R449A R450A R452A R507A R515B R513A |
| SCIP dossier no. | 95debbe1-872f-4331-8148-b4a92f85f8c0 |
| SCIP dossier product name | EVR 10-22 |
| Serviceable | Solenoid valve spare parts |
| Type designation | Solenoid valve, Solder |
| UL approved refrigerants | R125 R134a R152a R22 R404A R407A R407C R407F R410A R417A R448A R449A R450A R452A R507A R515B R290 R513A R600 R600a R1234ze(E) R452B R454B R32 R454A R454C R455A |
| UL mark | Yes |
| Valve operation | Servo-piston |
