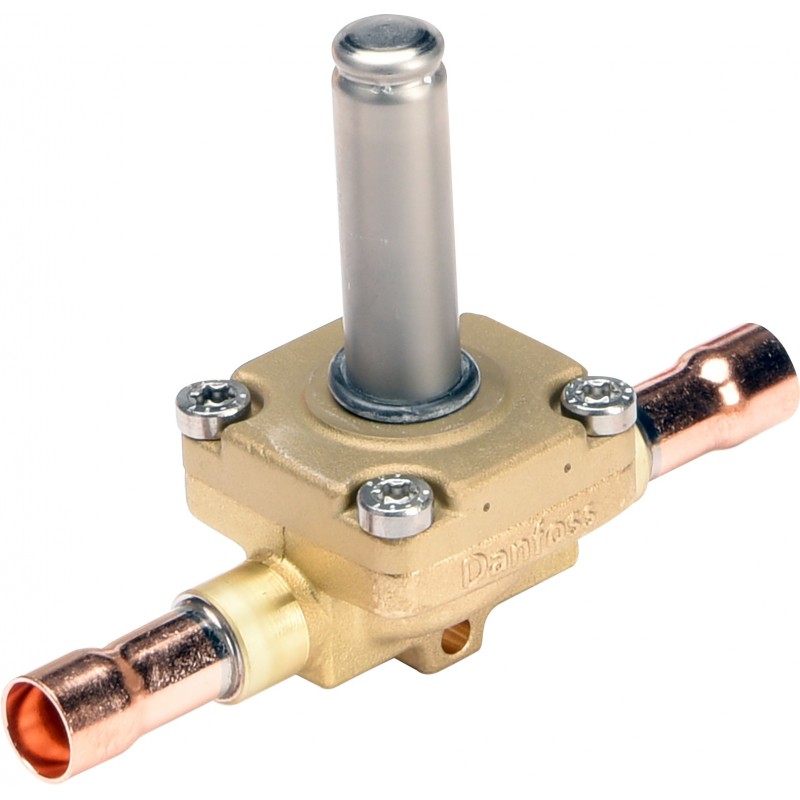

032L8098 DANFOSS REFRIGERATION Solenoid valve
032L8098
DANFOSS REFRIGERATION
Solenoid valve
EVR 10 Valve Flare 5/8in Multi 12
Solenoid valve, EVR 10, 5/8 in, 16 mm, 2.2 m³/h, Function: NC
Home > DANFOSS REFRIGERATION
Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS REFRIGERATION
Best sellers
▲More info
▲Inlet connection type: Flare, Outlet connection type: Flare, Body material: Brass, Max. Working Pressure [bar]: 45.2, Manual operation option: No, Packing format: Multi pack, Quantity per packing format: 12
Product details
| Gross weight | 0.488 Kilogram |
| Net weight | 0.411 Kilogram |
| Volume | 0.878 Liter |
| EAN | 5702428952491 |
| Type | EVR 10 |
| Product group | Solenoid valves |
| Product Name Description | Solenoid valve |
| Gross weight | 0.488 Kilogram |
| Net weight | 0.411 Kilogram |
| Volume | 0.878 Liter |
| EAN | 5702428952491 |
| Type | EVR 10 |
| Product group | Solenoid valves |
| Product Name Description | Solenoid valve |
| Actuator system [mm] | 13.5 mm |
| Ambient temperature | -40 - 80 °C |
| Ambient temperature range [°F] [max] | 175 °F |
| Ambient temperature range [°F] [min] | -40 °F |
| Approval | EAC LLC CDC EURO-TYSK UL |
| Body material | Brass |
| China RoHS compliance | Yes with exemptions |
| China RoHS exemption clause | 7.1 7.3 |
| Coil | No |
| Contains batteries | No |
| Cv value [gal/min] | 2.6 gal/min |
| Direction | Straightway |
| EU RoHS compliance | Yes with exemptions |
| EU RoHS exemption clause | 6(a) 6(c) |
| Fluid Group | 1 2 |
| Function | NC |
| Inlet connection type | Flare |
| Inlet size [in] | 5/8 in |
| Inlet size [mm] | 16 mm |
| Kv value [m³/h] | 2.2 m³/h |
| Lubricants compatibility | AB MO PAG PAO POE PVE |
| Manual operation option | No |
| Max. Working Pressure [bar] | 45.2 bar |
| Max. Working Pressure [psig] | 655 psig |
| MaxOPD[bar] 10W AC | 38 bar |
| MaxOPD[bar] 20W DC | 20 bar |
| MaxOPD[bar] coil BJ/BX | 38 bar |
| MaxOPD[psi] 10W AC | 550 psi |
| MaxOPD[psi] 20W DC | 290 psi |
| MaxOPD[psi] coil BJ/BX | 550 psi |
| Medium temperature range [°C] [max] | 105 °C |
| Medium temperature range [°C] [min] | -40 °C |
| Medium temperature range [°F] [max] | 221 °F |
| Medium temperature range [°F] [min] | -40 °F |
| MinODP [bar] | 0.03 bar |
| MinODP [psi] | 0.44 psi |
| MOPD[bar/psi] | Coil Dependent |
| Orifice size [mm] | 10 mm |
| Outlet connection type | Flare |
| Outlet size [in] | 5/8 in |
| Outlet size [mm] | 16 mm |
| Packing format | Multi pack |
| Parts Program name | EVR |
| PED category | Art. 4, par. 3 |
| Product accessories | Solenoid valve accessories |
| Quantity per packing format | 12 pc |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| Refrigerants | R1234yf R1234ze(E) R125 R134a R152a R22 R32 R404A R407A R407C R407F R407H R410A R413A R417A R422A R422B R422D R438A R442A R444B R447A R447B R448A R449A R449B R450A R452A R452B R454A R454B R454C R455A R463A R507A R512A R513A R513B R515A R515B R516A |
| SCIP dossier no. | 95debbe1-872f-4331-8148-b4a92f85f8c0 |
| SCIP dossier product name | EVR 10-22 |
| Serviceable | Solenoid valve spare parts |
| Type designation | Solenoid valve |
| UL approved refrigerants | R125 R134a R22 R404A R407A R407C R407F R407H R410A R417A R422A R422B R422D R438A R442A R447B R448A R449A R449B R450A R452A R463A R507A R513A R513B R515A R515B R152a R1234ze(E) R32 R452B R454B R454A R454C R455A |
| UL mark | Yes |
| Valve operation | Servo-diaphragm |
| Actuator system [mm] | 13.5 mm |
| Ambient temperature | -40 - 80 °C |
| Ambient temperature range [°F] [max] | 175 °F |
| Ambient temperature range [°F] [min] | -40 °F |
| Approval | EAC LLC CDC EURO-TYSK UL |
| Body material | Brass |
| China RoHS compliance | Yes with exemptions |
| China RoHS exemption clause | 7.1 7.3 |
| Coil | No |
| Contains batteries | No |
| Cv value [gal/min] | 2.6 gal/min |
| Direction | Straightway |
| EU RoHS compliance | Yes with exemptions |
| EU RoHS exemption clause | 6(a) 6(c) |
| Fluid Group | 1 2 |
| Function | NC |
| Inlet connection type | Flare |
| Inlet size [in] | 5/8 in |
| Inlet size [mm] | 16 mm |
| Kv value [m³/h] | 2.2 m³/h |
| Lubricants compatibility | AB MO PAG PAO POE PVE |
| Manual operation option | No |
| Max. Working Pressure [bar] | 45.2 bar |
| Max. Working Pressure [psig] | 655 psig |
| MaxOPD[bar] 10W AC | 38 bar |
| MaxOPD[bar] 20W DC | 20 bar |
| MaxOPD[bar] coil BJ/BX | 38 bar |
| MaxOPD[psi] 10W AC | 550 psi |
| MaxOPD[psi] 20W DC | 290 psi |
| MaxOPD[psi] coil BJ/BX | 550 psi |
| Medium temperature range [°C] [max] | 105 °C |
| Medium temperature range [°C] [min] | -40 °C |
| Medium temperature range [°F] [max] | 221 °F |
| Medium temperature range [°F] [min] | -40 °F |
| MinODP [bar] | 0.03 bar |
| MinODP [psi] | 0.44 psi |
| MOPD[bar/psi] | Coil Dependent |
| Orifice size [mm] | 10 mm |
| Outlet connection type | Flare |
| Outlet size [in] | 5/8 in |
| Outlet size [mm] | 16 mm |
| Packing format | Multi pack |
| Parts Program name | EVR |
| PED category | Art. 4, par. 3 |
| Product accessories | Solenoid valve accessories |
| Quantity per packing format | 12 pc |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| Refrigerants | R1234yf R1234ze(E) R125 R134a R152a R22 R32 R404A R407A R407C R407F R407H R410A R413A R417A R422A R422B R422D R438A R442A R444B R447A R447B R448A R449A R449B R450A R452A R452B R454A R454B R454C R455A R463A R507A R512A R513A R513B R515A R515B R516A |
| SCIP dossier no. | 95debbe1-872f-4331-8148-b4a92f85f8c0 |
| SCIP dossier product name | EVR 10-22 |
| Serviceable | Solenoid valve spare parts |
| Type designation | Solenoid valve |
| UL approved refrigerants | R125 R134a R22 R404A R407A R407C R407F R407H R410A R417A R422A R422B R422D R438A R442A R447B R448A R449A R449B R450A R452A R463A R507A R513A R513B R515A R515B R152a R1234ze(E) R32 R452B R454B R454A R454C R455A |
| UL mark | Yes |
| Valve operation | Servo-diaphragm |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE DANFOSS REFRIGERATION AND AIRCONDITIONING EN.pdf | 11 Mbytes |
|
| 032L8098 032L8098 IT_032L1107.pdf | 3 Mbytes |
|
