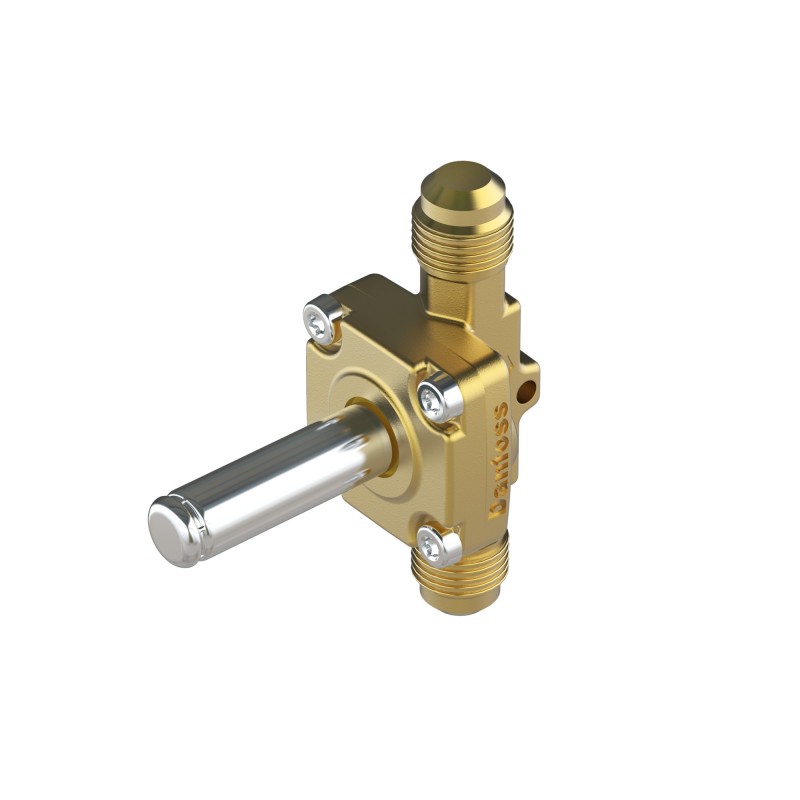

032L8096 DANFOSS REFRIGERATION EVO 103 Valve Flare 1/2in Multi 12
032L8096
DANFOSS REFRIGERATION
EVO 103 Valve Flare 1/2in Multi 12
Solenoid valve, EVO 103
Home > DANFOSS REFRIGERATION
Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS REFRIGERATION
Best sellers
▲More info
▲Function: NC, Inlet connection type: Flare, Outlet connection type: Flare
Product details
| Gross weight | 0.752 Kg |
| Net weight | 0.477 Kg |
| Volume | 0.873 Liter |
| EAN | 5702428950411 |
| Gross weight | 0.752 Kg |
| Net weight | 0.477 Kg |
| Volume | 0.873 Liter |
| EAN | 5702428950411 |
| Actuator system [mm] | 13.5 mm |
| Ambient temperature | -40 - 80 °C |
| Ambient temperature range [°F] [max] | 175 °F |
| Ambient temperature range [°F] [min] | -40 °F |
| Approval | EAC |
| Coil | Yes |
| Coil connection | Cap |
| Coil type | BE230AS |
| Cv value [gal/min] | 2.6 gal/min |
| Direction | Straightway |
| Enclosure rating IP | IP20 |
| EU RoHS compliance | Yes with exemptions |
| Frequency [Hz] | 50 Hz |
| Function | NC |
| In scope of WEEE and contain batteries | No |
| Inlet connection type | Flare |
| Inlet size [in] | 1/2 in |
| Inlet size [mm] | 12 mm |
| Kv value [m³/h] | 2.2 m³/h |
| Lubricants compatibility | AB PAG PAO POE PVE MO |
| Manual operation option | No |
| Max. Working Pressure [bar] | 45.2 bar |
| Max. Working Pressure [psig] | 655 psig |
| MaxOPD[bar] 10W AC | 38 bar |
| MaxOPD[bar] coil BJ/BX | 38 bar |
| MaxOPD[psi] 10W AC | 550 psi |
| MaxOPD[psi] coil BJ/BX | 550 psi |
| Medium temperature range [°C] [max] | 105 °C |
| Medium temperature range [°C] [min] | -40 °C |
| Medium temperature range [°F] [max] | 221 °F |
| Medium temperature range [°F] [min] | -40 °F |
| MinODP [bar] | 0.03 bar |
| MinODP [psi] | 0.44 psi |
| MOPD[bar/psi] | Coil Dependend |
| Orifice size [mm] | 10 mm |
| Outlet connection type | Flare |
| Outlet size [in] | 1/2 in |
| Outlet size [mm] | 12 mm |
| Packing format | Multi pack |
| Parts Program name | EVO |
| Power consumption | 11-12 W |
| Power consumption [W] 50Hz | 12 W |
| Product accessories | No |
| Product group | Solenoid valves |
| Product Name Description | Solenoid valve |
| Quantity per packing format | 12 pc |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| Refrigerants | R1234yf R125 R134a R152a R22 R22/R407C R23 R290 R32 R404A R407A R407C R407F R410A R448A R449A R450A R452A R600a R1234ze(E) R404A/R507A R507A |
| SCIP dossier no. | 29cb9379-b48f-46b9-9360-0837e10ce0bf |
| SCIP dossier product name | EVR 10-22/EVO 103/EVRC/EVRH 10-20 (NC) |
| Serviceable | No |
| Supply voltage 50Hz Max [V] | 230 V |
| Supply voltage 50Hz Min [V] | 220 V |
| Supply voltage [V] AC [max] | 230 V |
| Supply voltage [V] AC [min] | 220 V |
| Type | EVO 103 |
| Type designation | Solenoid valve |
| Valve operation | Servo-diaphragm |
| Actuator system [mm] | 13.5 mm |
| Ambient temperature | -40 - 80 °C |
| Ambient temperature range [°F] [max] | 175 °F |
| Ambient temperature range [°F] [min] | -40 °F |
| Approval | EAC |
| Coil | Yes |
| Coil connection | Cap |
| Coil type | BE230AS |
| Cv value [gal/min] | 2.6 gal/min |
| Direction | Straightway |
| Enclosure rating IP | IP20 |
| EU RoHS compliance | Yes with exemptions |
| Frequency [Hz] | 50 Hz |
| Function | NC |
| In scope of WEEE and contain batteries | No |
| Inlet connection type | Flare |
| Inlet size [in] | 1/2 in |
| Inlet size [mm] | 12 mm |
| Kv value [m³/h] | 2.2 m³/h |
| Lubricants compatibility | AB PAG PAO POE PVE MO |
| Manual operation option | No |
| Max. Working Pressure [bar] | 45.2 bar |
| Max. Working Pressure [psig] | 655 psig |
| MaxOPD[bar] 10W AC | 38 bar |
| MaxOPD[bar] coil BJ/BX | 38 bar |
| MaxOPD[psi] 10W AC | 550 psi |
| MaxOPD[psi] coil BJ/BX | 550 psi |
| Medium temperature range [°C] [max] | 105 °C |
| Medium temperature range [°C] [min] | -40 °C |
| Medium temperature range [°F] [max] | 221 °F |
| Medium temperature range [°F] [min] | -40 °F |
| MinODP [bar] | 0.03 bar |
| MinODP [psi] | 0.44 psi |
| MOPD[bar/psi] | Coil Dependend |
| Orifice size [mm] | 10 mm |
| Outlet connection type | Flare |
| Outlet size [in] | 1/2 in |
| Outlet size [mm] | 12 mm |
| Packing format | Multi pack |
| Parts Program name | EVO |
| Power consumption | 11-12 W |
| Power consumption [W] 50Hz | 12 W |
| Product accessories | No |
| Product group | Solenoid valves |
| Product Name Description | Solenoid valve |
| Quantity per packing format | 12 pc |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| Refrigerants | R1234yf R125 R134a R152a R22 R22/R407C R23 R290 R32 R404A R407A R407C R407F R410A R448A R449A R450A R452A R600a R1234ze(E) R404A/R507A R507A |
| SCIP dossier no. | 29cb9379-b48f-46b9-9360-0837e10ce0bf |
| SCIP dossier product name | EVR 10-22/EVO 103/EVRC/EVRH 10-20 (NC) |
| Serviceable | No |
| Supply voltage 50Hz Max [V] | 230 V |
| Supply voltage 50Hz Min [V] | 220 V |
| Supply voltage [V] AC [max] | 230 V |
| Supply voltage [V] AC [min] | 220 V |
| Type | EVO 103 |
| Type designation | Solenoid valve |
| Valve operation | Servo-diaphragm |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE DANFOSS REFRIGERATION AND AIRCONDITIONING EN.pdf | 11 Mbytes |
|
| 032L8096 032L8096 ES_032L8077.pdf | 880 Kbytes |
|
