032L1112
DANFOSS REFRIGERATION
1

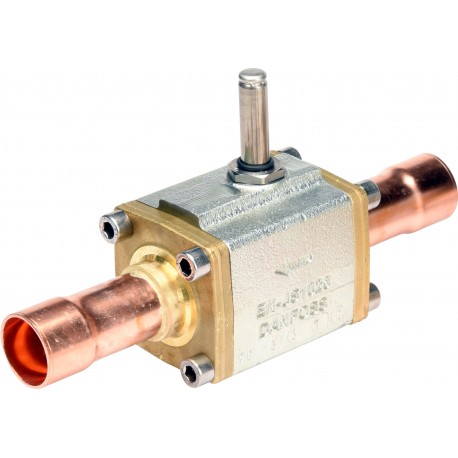

Solenoid valve
EVR 40 Valve ODF-ODF 2 1/8in Singlep.
Solenoid Valve, EVR 40, Welde, ODF, 2 1/8 in, Function: NC
Home > DANFOSS REFRIGERATION
* Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS REFRIGERATION
Thank you for your interest in our products; we hope the delivery time indicated is to your convenience.
While the order is being processed you can select the type of shipment that best suits your needs: 24-hour air express, standard 48-72 hour land, etc.
Gross weight | 4.99 Kg |
Net weight | 4.53 Kg |
EAN | 5702428943116 |
Actuator system [mm] | 13.5 mm |
Ambient temperature | -40 - 80 °C |
Approval | UL EAC |
Coil | No |
Cv value [gal/min] | 28 gal/min |
Direction | Straightway |
Function | NC |
Inlet connection type | SOLDER, ODF |
Inlet size [in] | 2 1/8 IN |
Kv value [m³/h] | 24.2 m3/h |
Manual operation option | No |
Max. Working Pressure [bar] | 45.2 bar |
Max. Working Pressure [psig] | 655 psig |
MaxOPD[bar] 10W AC | 38 bar |
MaxOPD[bar] 20W DC | 17 bar |
MaxOPD[bar] coil BJ/BX | 31 bar |
MaxOPD[psi] 10W AC | 550 psi |
MaxOPD[psi] 20W DC | 246 psi |
MaxOPD[psi] coil BJ/BX | 450 psi |
Medium temperature range [°C] [Max] | 105 °C |
Medium temperature range [°C] [Min] | -40 °C |
Medium temperature range [°F] [Max] | 221 °F |
Medium temperature range [°F] [Min] | -40 °F |
MinODP [bar] | 0.2 bar |
MinODP [psi] | 2.9 psi |
MOPD[bar/psi] | COIL DEPENDEND |
Orifice size [mm] | 25.4 mm |
Outlet connection type | SOLDER, ODF |
Outlet size [in] | 2 1/8 IN |
Packing format | Single pack |
Parts Program name | EVR |
Product family name | EVR v2 |
Product Group | Solenoid valves |
Product name | Solenoid valve |
Product type | EVR 40 |
Quantity per packing format | 1 pc |
Refrigerants | R125 R134a R152a R22 R404A R407A R407C R407F R410A R448A R449A R450A R452A R507 R513A |
System line application | Discharge line Hot gas defrost drain line Hot gas defrost line Liquid feed line Liquid line Main hot gas defrost line Suction line |
Type designation | Solenoid valve, Solder |
Valve operation | SERVO-PISTON |
