DANFOSS REFRIGERATION 032F9510 032F9510 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

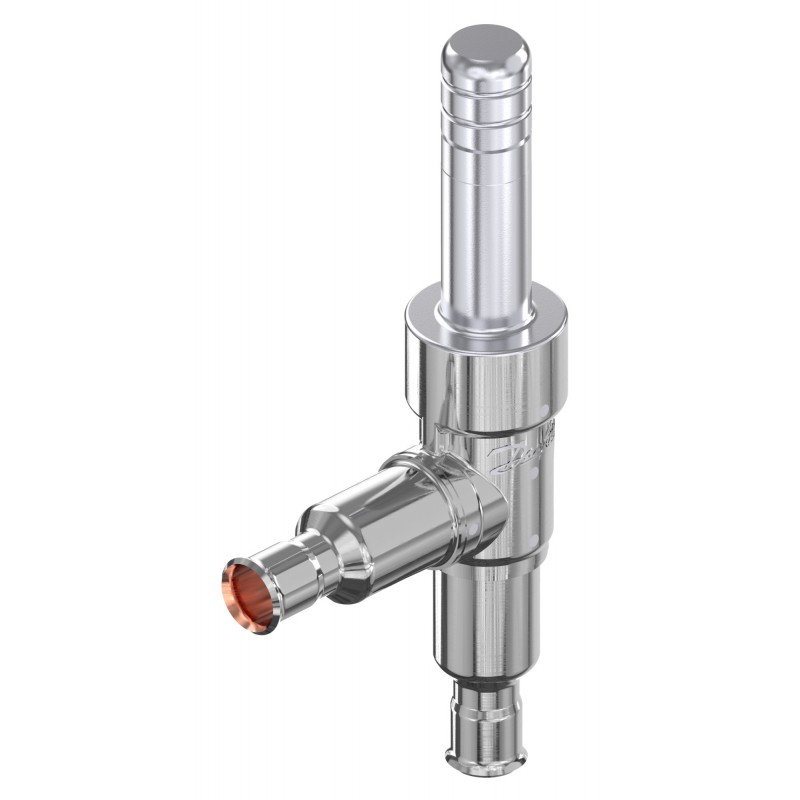

032F9510 DANFOSS REFRIGERATION Solenoid valve

Name: 032F9510 DANFOSS REFRIGERATION Solenoid valve
Brand: DANFOSS REFRIGERATION
SKU: DAO032F9510
Price: 54.94 USD
Availability: OutOfStock

Reference: 032F9510

Manufacturer: DANFOSS REFRIGERATION

Description:

Solenoid valve

EVUL 2 Solenoid valve Multi 16

Solenoid valve, EVUL 2, Solder, ODF, 1/4 in, 0.2 m³/h, Function: NC

Categories:

DANFOSS REFRIGERATION

Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS REFRIGERATION

More Info
PDF
Reviews

Guarantee, repair and return.

Unit Price: 49,08 €

This price is per unit and is the net value (not including taxes if applicable).

Special discounts for registered customers.Login or register and prices will be updated.

Calculate price by quantity

Quantity	Price

Standard lead time: 4-5 days.

These delivery times are an estimate any may vary when the item order has been processed.
You will be notified of any change to delivery times once the order has been processed.
To this delivery time you have to add the time of transport from our logistics centre to your company.

MORE INFO

Body material: Stainless steel, Medium temperature range [°C]: -40 - 105, Max. Working Pressure [bar]: 90, Manual operation option: No, Packing format: Multi pack, Quantity per packing format: 16

Product details

Gross weight	0.101 Kilogram
Net weight	0.055 Kilogram
Volume	0.787 Liter
EAN	5702428994866

Type	EVUL 2
Product group	Solenoid valves
Product Name Description	Solenoid valve

Gross weight	0.101 Kilogram
Net weight	0.055 Kilogram
Volume	0.787 Liter
EAN	5702428994866
Type	EVUL 2
Product group	Solenoid valves
Product Name Description	Solenoid valve

Actuator system [mm]	9 mm
Ambient temperature	-40 - Coil dependent
Approval	EAC LLC CDC TYSK UR
Body material	Stainless steel
China RoHS compliance	Yes with exemptions
Coil	No
Contains batteries	No
Cv value [gal/min]	0.23 gal/min
Direction	Angleway
EU RoHS compliance	Yes with exemptions
EU RoHS exemption clause	6(a) 6(c)
Function	NC
Inlet connection type	Solder, ODF
Inlet size [in]	1/4 in
Kv value [m³/h]	0.2 m³/h
Lubricants compatibility	AB MO PAG PAO POE PVE
Manual operation option	No
Max. Working Pressure [bar]	90 bar
Max. Working Pressure [psig]	1305 psig

Medium temp. range note	Defrost max. 130ºC/265ºF
Medium temperature range [°C] [max]	105 °C
Medium temperature range [°C] [min]	-40 °C
Medium temperature range [°F] [max]	221 °F
Medium temperature range [°F] [min]	-40 °F
MinODP [bar]	0.02 bar
MOPD[bar/psi]	Coil Dependent
Outlet connection type	Solder, ODF
Outlet size [in]	1/4 in
Packing format	Multi pack
Product accessories	Solenoid valve accessories
Quantity per packing format	16 pc
REACH Candidate List substances	Lead (CAS no. 7439-92-1)
Refrigerants	R1233zd(E) R1234yf R1234ze(E) R1270 R134a R22/R407C R23 R290 R32 R404A/R507A R407A R407F R407H R410A R422B R422D R438A R444B R448A R449A R449B R450A R452A R452B R454A R454B R454C R455A R463A R513A R513B R515A R515B R516A R600 R600a R744
SCIP dossier no.	850a5e3e-abe8-4821-a4ed-92e9c0410196
SCIP dossier product name	EVUL
Serviceable	No
Type designation	Solenoid valve, Solder
UL approved refrigerants	R1233zd(E) R134a R22 R23 R404A R407A R407C R407F R407H R410A R422B R422D R438A R448A R449A R449B R450A R452A R463A R507A R513A R513B R515A R515B R516A R744 R1234yf R1234ze(E) R1270 R290 R32 R444B R452B R454A R454B R454C R455A R600 R600a

Actuator system [mm]	9 mm
Ambient temperature	-40 - Coil dependent
Approval	EAC LLC CDC TYSK UR
Body material	Stainless steel
China RoHS compliance	Yes with exemptions
Coil	No
Contains batteries	No
Cv value [gal/min]	0.23 gal/min
Direction	Angleway
EU RoHS compliance	Yes with exemptions
EU RoHS exemption clause	6(a) 6(c)
Function	NC
Inlet connection type	Solder, ODF
Inlet size [in]	1/4 in
Kv value [m³/h]	0.2 m³/h
Lubricants compatibility	AB MO PAG PAO POE PVE
Manual operation option	No
Max. Working Pressure [bar]	90 bar
Max. Working Pressure [psig]	1305 psig
Medium temp. range note	Defrost max. 130ºC/265ºF
Medium temperature range [°C] [max]	105 °C
Medium temperature range [°C] [min]	-40 °C
Medium temperature range [°F] [max]	221 °F
Medium temperature range [°F] [min]	-40 °F
MinODP [bar]	0.02 bar
MOPD[bar/psi]	Coil Dependent
Outlet connection type	Solder, ODF
Outlet size [in]	1/4 in
Packing format	Multi pack
Product accessories	Solenoid valve accessories
Quantity per packing format	16 pc
REACH Candidate List substances	Lead (CAS no. 7439-92-1)
Refrigerants	R1233zd(E) R1234yf R1234ze(E) R1270 R134a R22/R407C R23 R290 R32 R404A/R507A R407A R407F R407H R410A R422B R422D R438A R444B R448A R449A R449B R450A R452A R452B R454A R454B R454C R455A R463A R513A R513B R515A R515B R516A R600 R600a R744
SCIP dossier no.	850a5e3e-abe8-4821-a4ed-92e9c0410196
SCIP dossier product name	EVUL
Serviceable	No
Type designation	Solenoid valve, Solder
UL approved refrigerants	R1233zd(E) R134a R22 R23 R404A R407A R407C R407F R407H R410A R422B R422D R438A R448A R449A R449B R450A R452A R463A R507A R513A R513B R515A R515B R516A R744 R1234yf R1234ze(E) R1270 R290 R32 R444B R452B R454A R454B R454C R455A R600 R600a

DATASHEET - PDF

Title

Size

Type

032F9510 032F9510 IT_042N4230.pdf

1 Mbytes

PDF CATALOGUE DANFOSS REFRIGERATION AND AIRCONDITIONING EN

11 Mbytes
