032F8208
DANFOSS REFRIGERATION
40
Home > DANFOSS REFRIGERATION
* Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS REFRIGERATION
Thank you for your interest in our products; we hope the delivery time indicated is to your convenience.
While the order is being processed you can select the type of shipment that best suits your needs: 24-hour air express, standard 48-72 hour land, etc.
Kv value [m³/h]: 0.650, Packing format: Industrial pack
Gross weight | 0.072 Kg |
Net weight | 0.07 Kg |
Volume | 0.38 Liter |
EAN | 5702428406499 |
Gross weight | 0.072 Kg |
Net weight | 0.07 Kg |
Volume | 0.38 Liter |
EAN | 5702428406499 |
Actuator system [mm] | 9 mm |
Ambient temperature | -40 - Coil dependend |
Approval | EAC LLC CDC TYSK UR |
Coil | No |
Cv value [gal/min] | 0.8 gal/min |
Direction | Angleway |
EU RoHS compliance | Yes with exemptions |
Function | NC |
In scope of WEEE and contain batteries | No |
Inlet connection type | Solder, ODF |
Inlet size [in] | 1/2 in |
Kv value [m³/h] | 0.65 m³/h |
Lubricants compatibility | AB PAG PAO POE PVE MO |
Manual operation option | No |
Max. Working Pressure [bar] | 90 bar |
Max. Working Pressure [psig] | 1305 psig |
Medium temperature range [°C] [max] | 105 °C |
Medium temperature range [°C] [min] | -40 °C |
Medium temperature range [°F] [max] | 221 °F |
Medium temperature range [°F] [min] | -40 °F |
MinODP [bar] | 0.02 bar |
MOPD[bar/psi] | Coil Dependend |
Outlet connection type | Solder, ODF |
Outlet size [in] | 1/2 in |
Packing format | Industrial pack |
Product accessories | Solenoid valve accessories |
Product group | Solenoid valves |

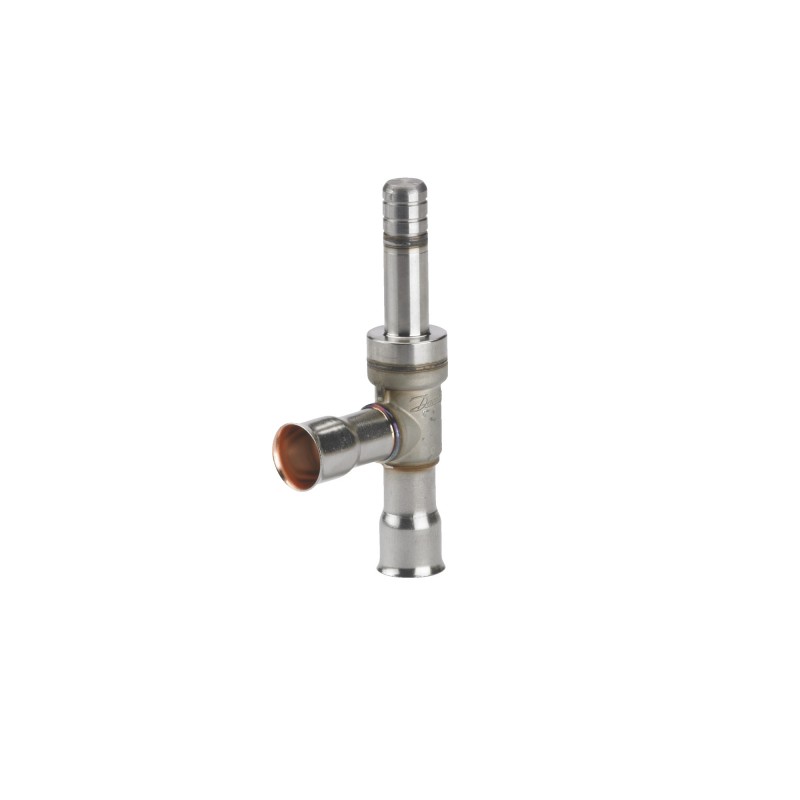

Product Name Description | Solenoid valve |
Quantity per packing format | 40 pc |
Refrigerants | R407A R1234yf R1270 R290 R32 R407F R407H R422B R422D R438A R444B R448A R449A R449B R450A R452A R452B R454B R454C R455A R463A R513A R513B R515A R515B R516A R600 R600a R1233zd(E) R1234ze(E) R454A |
Serviceable | No |
Type | EVUL 5 |
Type designation | Solenoid valve, Solder |
UL approved refrigerants | R1233zd(E) R407A R407F R407H R422B R422D R438A R448A R449A R449B R450A R452A R463A R513A R513B R515A R515B R516A |
Actuator system [mm] | 9 mm |
Ambient temperature | -40 - Coil dependend |
Approval | EAC LLC CDC TYSK UR |
Coil | No |
Cv value [gal/min] | 0.8 gal/min |
Direction | Angleway |
EU RoHS compliance | Yes with exemptions |
Function | NC |
In scope of WEEE and contain batteries | No |
Inlet connection type | Solder, ODF |
Inlet size [in] | 1/2 in |
Kv value [m³/h] | 0.65 m³/h |
Lubricants compatibility | AB PAG PAO POE PVE MO |
Manual operation option | No |
Max. Working Pressure [bar] | 90 bar |
Max. Working Pressure [psig] | 1305 psig |
Medium temperature range [°C] [max] | 105 °C |
Medium temperature range [°C] [min] | -40 °C |
Medium temperature range [°F] [max] | 221 °F |
Medium temperature range [°F] [min] | -40 °F |
MinODP [bar] | 0.02 bar |
MOPD[bar/psi] | Coil Dependend |
Outlet connection type | Solder, ODF |
Outlet size [in] | 1/2 in |
Packing format | Industrial pack |
Product accessories | Solenoid valve accessories |
Product group | Solenoid valves |
Product Name Description | Solenoid valve |
Quantity per packing format | 40 pc |
Refrigerants | R407A R1234yf R1270 R290 R32 R407F R407H R422B R422D R438A R444B R448A R449A R449B R450A R452A R452B R454B R454C R455A R463A R513A R513B R515A R515B R516A R600 R600a R1233zd(E) R1234ze(E) R454A |
Serviceable | No |
Type | EVUL 5 |
Type designation | Solenoid valve, Solder |
UL approved refrigerants | R1233zd(E) R407A R407F R407H R422B R422D R438A R448A R449A R449B R450A R452A R463A R513A R513B R515A R515B R516A |
Title: | Size: | Type: |
---|---|---|
032F8208 032F8208 IT_042N4230.pdf | 1 Mbytes |
