032F8202
DANFOSS REFRIGERATION
40
Home > DANFOSS REFRIGERATION
* Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS REFRIGERATION
Thank you for your interest in our products; we hope the delivery time indicated is to your convenience.
While the order is being processed you can select the type of shipment that best suits your needs: 24-hour air express, standard 48-72 hour land, etc.
Gross weight | 0.07 Kg |
Net weight | 0.07 Kg |
EAN | 5702428406727 |
Actuator system [mm] | 9 mm |
Ambient temperature | -40 - COIL DEPENDEND |
Approval | EAC LLC CDC TYSK UR |
Coil | No |
Cv value [gal/min] | 0.4 gal/min |
Direction | Angleway |
Function | NC |
Inlet connection type | SOLDER, ODF |
Inlet size [in] | 1/4 IN |
Kv value [m³/h] | 0.3 m3/h |
Manual operation option | No |
Max. Working Pressure [bar] | 90 bar |
Max. Working Pressure [psig] | 1305 psig |
Medium temperature range [°C] [Max] | 105 °C |
Medium temperature range [°C] [Min] | -40 °C |
Medium temperature range [°F] [Max] | 221 °F |
Medium temperature range [°F] [Min] | -40 °F |
MinODP [bar] | 0.02 bar |
MOPD[bar/psi] | COIL DEPENDEND |
Outlet connection type | SOLDER, ODF |
Outlet size [in] | 1/4 IN |
Packing format | Industrial pack |
Product family name | EVUL |
Product Group | Solenoid valves |

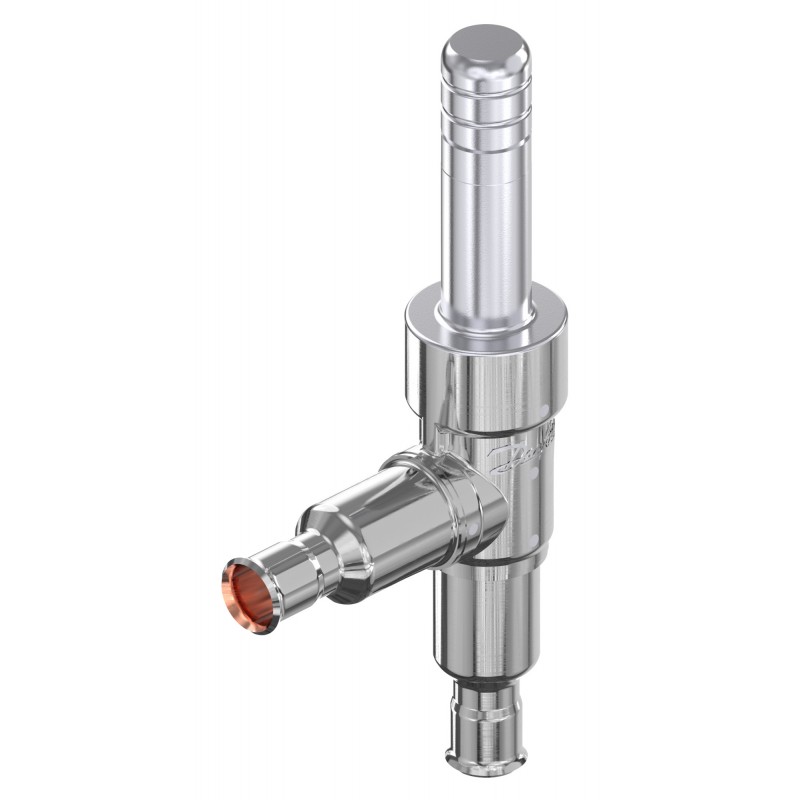

Product name | Solenoid valve |
Product type | EVUL 3 |
Quantity per packing format | 40 pc |
Refrigerants | R134a R22/R407C R23 R404A/R507 R407A R410A R744 |
System line application | Discharge line Liquid feed line Liquid line Suction line |
Type designation | Solenoid valve, Solder |
