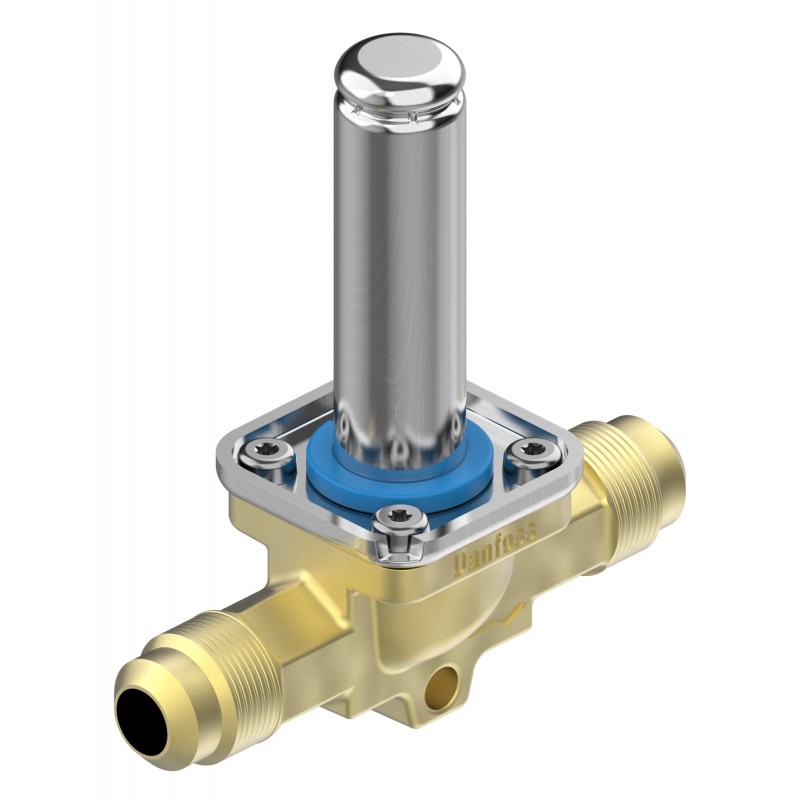

DANFOSS REFRIGERATION 032F8108 032F8108 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

032F8108 DANFOSS REFRIGERATION Solenoid valve

Name: 032F8108 DANFOSS REFRIGERATION Solenoid valve
Brand: DANFOSS REFRIGERATION
SKU: DAO032F8108
Price: 79.52 USD
Availability: OutOfStock

Reference: 032F8108

Manufacturer: DANFOSS REFRIGERATION

Description:

Solenoid valve

EVR 3 Valve Flare 1/4in I-pack 50.

Solenoid valve, EVR 3, Flare, 1/4 in, 6 mm, 0.27 m³/h, Function: NC

Categories:

DANFOSS REFRIGERATION

Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS REFRIGERATION

More Info
PDF
Reviews

Guarantee, repair and return.

Total: 3.551,70 €

Unit Price: 71,0339 €

This price is per unit and is the net value (not including taxes if applicable).

Special discounts for registered customers.Login or register and prices will be updated.

Calculate price by quantity

Quantity	Price

Standard lead time: 4-5 days.

These delivery times are an estimate any may vary when the item order has been processed.
You will be notified of any change to delivery times once the order has been processed.
To this delivery time you have to add the time of transport from our logistics centre to your company.

MORE INFO

Body material: Brass, Medium temperature range [°C]: -40 - 105, Max. Working Pressure [bar]: 45.2, Manual operation option: No, Packing format: Industrial pack, Quantity per packing format: 50

Product details

Gross weight	0.193 Kilogram
Net weight	0.179 Kilogram
Volume	0.45 Liter
EAN	5702428093200

Type	EVR 3
Product group	Solenoid valves
Product Name Description	Solenoid valve

Gross weight	0.193 Kilogram
Net weight	0.179 Kilogram
Volume	0.45 Liter
EAN	5702428093200
Type	EVR 3
Product group	Solenoid valves
Product Name Description	Solenoid valve

Actuator system [mm]	13.5 mm
Ambient temperature	-40 - Coil dependent
Approval	EAC LLC CDC TYSK
Body material	Brass
China RoHS compliance	Yes with exemptions
China RoHS exemption clause	7.1 7.3
Coil	No
Contains batteries	No
Cv value [gal/min]	0.31 gal/min
Direction	Straightway
EU RoHS compliance	Yes with exemptions
EU RoHS exemption clause	6(a) 6(c)
Function	NC
Identical product	032F8107
Inlet connection type	Flare
Inlet size [in]	1/4 in
Inlet size [mm]	6 mm
Kv value [m³/h]	0.27 m³/h
Lubricants compatibility	AB MO PAG PAO POE PVE
Manual operation option	No
Max. Working Pressure [bar]	45.2 bar
Max. Working Pressure [psig]	655 psig
MaxOPD[bar] 10W AC	38 bar

MaxOPD[psi] 10W AC	550 psi
Medium temp. range note	Defrost max 130°C/265°F
Medium temperature range [°C] [max]	105 °C
Medium temperature range [°C] [min]	-40 °C
Medium temperature range [°F] [max]	221 °F
Medium temperature range [°F] [min]	-40 °F
MinODP [bar]	0 bar
MOPD[bar/psi]	Coil Dependent
Orifice size [mm]	3.3 mm
Outlet connection type	Flare
Outlet size [in]	1/4 in
Outlet size [mm]	6 mm
Packing format	Industrial pack
Parts Program name	EVR
Product accessories	Solenoid valve accessories
Quantity per packing format	50 pc
REACH Candidate List substances	Lead (CAS no. 7439-92-1)
Refrigerants	R125 R134a R22 R404A R407A R407C R407F R407H R410A R413A R417A R422A R422B R422D R438A R442A R447A R447B R448A R449A R449B R450A R452A R455A R463A R507A R512A R513A R513B R515A R515B
SCIP dossier no.	52f475eb-6026-442a-932e-863e4660eac8
SCIP dossier product name	EVR 2-8/EVO 100-102
Serviceable	Solenoid valve spare parts
Type designation	Solenoid valve
Valve operation	Direct

Actuator system [mm]	13.5 mm
Ambient temperature	-40 - Coil dependent
Approval	EAC LLC CDC TYSK
Body material	Brass
China RoHS compliance	Yes with exemptions
China RoHS exemption clause	7.1 7.3
Coil	No
Contains batteries	No
Cv value [gal/min]	0.31 gal/min
Direction	Straightway
EU RoHS compliance	Yes with exemptions
EU RoHS exemption clause	6(a) 6(c)
Function	NC
Identical product	032F8107
Inlet connection type	Flare
Inlet size [in]	1/4 in
Inlet size [mm]	6 mm
Kv value [m³/h]	0.27 m³/h
Lubricants compatibility	AB MO PAG PAO POE PVE
Manual operation option	No
Max. Working Pressure [bar]	45.2 bar
Max. Working Pressure [psig]	655 psig
MaxOPD[bar] 10W AC	38 bar
MaxOPD[psi] 10W AC	550 psi
Medium temp. range note	Defrost max 130°C/265°F
Medium temperature range [°C] [max]	105 °C
Medium temperature range [°C] [min]	-40 °C
Medium temperature range [°F] [max]	221 °F
Medium temperature range [°F] [min]	-40 °F
MinODP [bar]	0 bar
MOPD[bar/psi]	Coil Dependent
Orifice size [mm]	3.3 mm
Outlet connection type	Flare
Outlet size [in]	1/4 in
Outlet size [mm]	6 mm
Packing format	Industrial pack
Parts Program name	EVR
Product accessories	Solenoid valve accessories
Quantity per packing format	50 pc
REACH Candidate List substances	Lead (CAS no. 7439-92-1)
Refrigerants	R125 R134a R22 R404A R407A R407C R407F R407H R410A R413A R417A R422A R422B R422D R438A R442A R447A R447B R448A R449A R449B R450A R452A R455A R463A R507A R512A R513A R513B R515A R515B
SCIP dossier no.	52f475eb-6026-442a-932e-863e4660eac8
SCIP dossier product name	EVR 2-8/EVO 100-102
Serviceable	Solenoid valve spare parts
Type designation	Solenoid valve
Valve operation	Direct

DATASHEET - PDF

Title

Size

Type

032F8108 032F8108 IT_032L1107.pdf

3 Mbytes

PDF CATALOGUE DANFOSS REFRIGERATION AND AIRCONDITIONING EN

11 Mbytes
