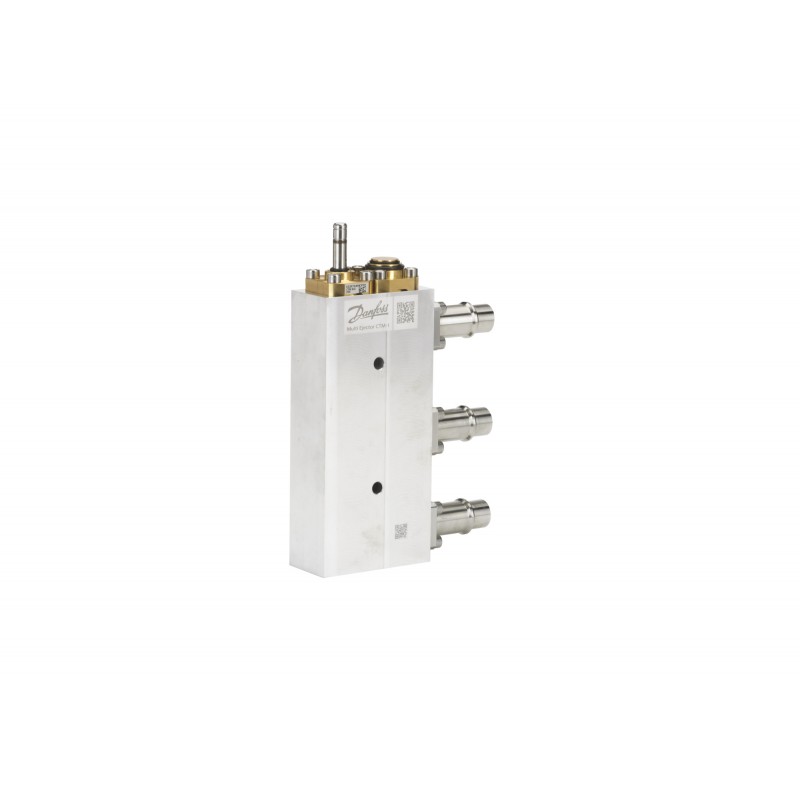

032F5683 DANFOSS REFRIGERATION CTM Liquid valve
032F5683
DANFOSS REFRIGERATION
CTM Liquid valve
CO2 Multi Ejector LE 200, CTM 1
Home > DANFOSS REFRIGERATION
* Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS REFRIGERATION
Best sellers
▲More info
▲Refrigerants: R744, Max. Working Pressure [bar]: 140.0, Connection material: Stainless steel, Packing format: Single pack, Quantity per packing format: 1
Product details
| Gross weight | 4.474 Kg |
| Net weight | 1.21 Kg |
| Volume | 4.884 Liter |
| EAN | 5702428997713 |
| Gross weight | 4.474 Kg |
| Net weight | 1.21 Kg |
| Volume | 4.884 Liter |
| EAN | 5702428997713 |
| Ambient temperature range [°C] [max] | 50 °C |
| Ambient temperature range [°C] [min] | -10 °C |
| Ambient temperature range [°F] [max] | 122 °F |
| Ambient temperature range [°F] [min] | -14 °F |
| Approval | PED cURus |
| Body material | Aluminum Alloy |
| Capacity Mass flow [lb/h] | 441 lb/h |
| Capacity – Mass flow [kg/h] | 200 kg/h |
| Conn. A size for brazing [in] | 5/8 in |
| Conn. A size for welding [in] | 1/2 in |
| Conn. A type for brazing | ODF |
| Conn. C size for brazing [in] | 5/8 in |
| Conn. C size for welding [in] | 1/2 in |
| Conn. C type for brazing | ODF |
| Conn. E size for brazing [in] | 5/8 in |
| Conn. E size for welding [in] | 1/2 in |
| Conn. E type for brazing | ODF |
| Connection material | Stainless steel |
| Connector A function | High pressure inlet |
| Connector C function | Suction inlet |
| Connector E function | Receiver outlet |
| Connectors standard | EN 10220 |
| Ejector material | Brass |
| EU RoHS compliance | Yes with exemptions |
| Function | NC |
| In scope of WEEE and contain batteries | No |
| Liquid cap. - Mass flow [lb/h] | 441 lb/h |
| Liquid cap. – Mass flow [kg/h] | 200 kg/h |
| Lubricants compatibility | POE PAG |
| Mass flow conditions | R744/1305 psig/95 °F R744/90 bar/35 °C |
| Mass flow Ejector 1[kg/h] | 200 kg/h |
| Mass flow Ejector 1[lb/h] | 441 lb/h |
| Mass flow Ejector 2 [lb/h] | 0 lb/h |
| Mass flow Ejector 2[kg/h] | 0 kg/h |
| Mass flow Ejector 3 [kg/h] | 0 kg/h |
| Mass flow Ejector 3 [lb/h] | 0 lb/h |
| Mass flow Ejector 4 [kg/h] | 0 kg/h |
| Mass flow Ejector 4 [lb/h] | 0 lb/h |
| Mass flow Ejector 5 [kg/h] | 0 kg/h |
| Mass flow Ejector 5 [lb/h] | 0 lb/h |
| Mass flow Ejector 6 [kg/h] | 0 kg/h |
| Mass flow Ejector 6 [lb/h] | 0 lb/h |
| Max. test pressure [bar] | 200 bar |
| Max. test pressure [psig] | 2716.6 psig |
| Max. Working Pressure [bar] | 140 bar |
| Max. Working Pressure [psig] | 2030 psig |
| Max.DeltaP E-C conn. [bar] | 20 bar |
| Max.DeltaP E-C conn. [psig] | 290 psi |
| MaxOPD [bar] | 90 bar |
| MaxOPD [psig] | 1221 psig |
| Media temperature range [°C] [max] | 50 °C |
| Media temperature range [°C] [min] | -10 °C |
| Media temperature range [°F] [max] | 122 °F |
| Media temperature range [°F] [min] | -14 °F |
| MinOPD [bar] | 0.1 bar |
| MinOPD [psig] | 1.36 psig |
| Packing format | Single pack |
| Parts Program name | CTM |
| Pressure range category | Liquid Ejector |
| Product group | Multi ejectors |
| Product Name Description | CTM Liquid valve |
| Quantity per packing format | 1 pc |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| Refrigerants | R744 |
| Rel. Humidity [% RH] [max] | 100 % |
| Rel. Humidity [% RH] [min] | 0 % |
| Serviceable | Multi ejector spare parts |
| Type | CTM 1 |
| UL approved refrigerants | R744 |
| Ambient temperature range [°C] [max] | 50 °C |
| Ambient temperature range [°C] [min] | -10 °C |
| Ambient temperature range [°F] [max] | 122 °F |
| Ambient temperature range [°F] [min] | -14 °F |
| Approval | PED cURus |
| Body material | Aluminum Alloy |
| Capacity Mass flow [lb/h] | 441 lb/h |
| Capacity – Mass flow [kg/h] | 200 kg/h |
| Conn. A size for brazing [in] | 5/8 in |
| Conn. A size for welding [in] | 1/2 in |
| Conn. A type for brazing | ODF |
| Conn. C size for brazing [in] | 5/8 in |
| Conn. C size for welding [in] | 1/2 in |
| Conn. C type for brazing | ODF |
| Conn. E size for brazing [in] | 5/8 in |
| Conn. E size for welding [in] | 1/2 in |
| Conn. E type for brazing | ODF |
| Connection material | Stainless steel |
| Connector A function | High pressure inlet |
| Connector C function | Suction inlet |
| Connector E function | Receiver outlet |
| Connectors standard | EN 10220 |
| Ejector material | Brass |
| EU RoHS compliance | Yes with exemptions |
| Function | NC |
| In scope of WEEE and contain batteries | No |
| Liquid cap. - Mass flow [lb/h] | 441 lb/h |
| Liquid cap. – Mass flow [kg/h] | 200 kg/h |
| Lubricants compatibility | POE PAG |
| Mass flow conditions | R744/1305 psig/95 °F R744/90 bar/35 °C |
| Mass flow Ejector 1[kg/h] | 200 kg/h |
| Mass flow Ejector 1[lb/h] | 441 lb/h |
| Mass flow Ejector 2 [lb/h] | 0 lb/h |
| Mass flow Ejector 2[kg/h] | 0 kg/h |
| Mass flow Ejector 3 [kg/h] | 0 kg/h |
| Mass flow Ejector 3 [lb/h] | 0 lb/h |
| Mass flow Ejector 4 [kg/h] | 0 kg/h |
| Mass flow Ejector 4 [lb/h] | 0 lb/h |
| Mass flow Ejector 5 [kg/h] | 0 kg/h |
| Mass flow Ejector 5 [lb/h] | 0 lb/h |
| Mass flow Ejector 6 [kg/h] | 0 kg/h |
| Mass flow Ejector 6 [lb/h] | 0 lb/h |
| Max. test pressure [bar] | 200 bar |
| Max. test pressure [psig] | 2716.6 psig |
| Max. Working Pressure [bar] | 140 bar |
| Max. Working Pressure [psig] | 2030 psig |
| Max.DeltaP E-C conn. [bar] | 20 bar |
| Max.DeltaP E-C conn. [psig] | 290 psi |
| MaxOPD [bar] | 90 bar |
| MaxOPD [psig] | 1221 psig |
| Media temperature range [°C] [max] | 50 °C |
| Media temperature range [°C] [min] | -10 °C |
| Media temperature range [°F] [max] | 122 °F |
| Media temperature range [°F] [min] | -14 °F |
| MinOPD [bar] | 0.1 bar |
| MinOPD [psig] | 1.36 psig |
| Packing format | Single pack |
| Parts Program name | CTM |
| Pressure range category | Liquid Ejector |
| Product group | Multi ejectors |
| Product Name Description | CTM Liquid valve |
| Quantity per packing format | 1 pc |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| Refrigerants | R744 |
| Rel. Humidity [% RH] [max] | 100 % |
| Rel. Humidity [% RH] [min] | 0 % |
| Serviceable | Multi ejector spare parts |
| Type | CTM 1 |
| UL approved refrigerants | R744 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| 032F5683 032F5683 | 572 Kbytes |
 |
