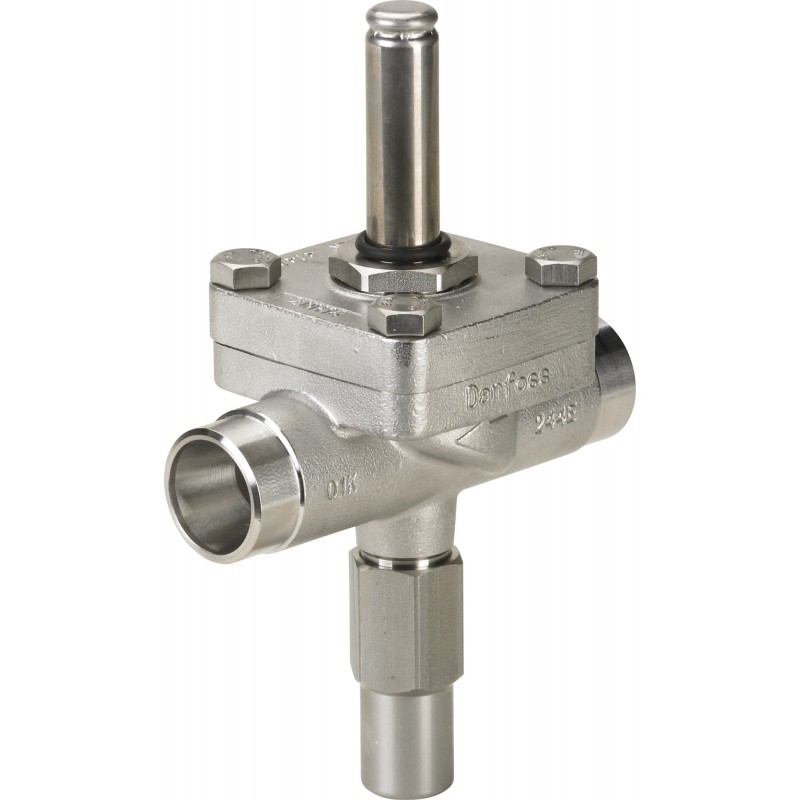

032F5437 DANFOSS REFRIGERATION Solenoid valve
032F5437
DANFOSS REFRIGERATION
Solenoid valve
EVRS 20 Valve Ps50 Singlep.
Solenoid valve, EVRS 20
Home > DANFOSS REFRIGERATION
Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS REFRIGERATION
Best sellers
▲More info
▲Function: NC, Inlet connection type: Butt weld, Outlet connection type: Butt weld, Manual operation option: Yes, Cv value [gal/min]: 5.2, Kv value [m³/h]: 4.5
Product details
| Gross weight | 2.138 Kilogram |
| Net weight | 1.829 Kilogram |
| Volume | 6.248 Liter |
| EAN | 5702428150354 |
| Type | EVRS 20 |
| Product group | Solenoid valves |
| Product Name Description | Solenoid valve |
| Gross weight | 2.138 Kilogram |
| Net weight | 1.829 Kilogram |
| Volume | 6.248 Liter |
| EAN | 5702428150354 |
| Type | EVRS 20 |
| Product group | Solenoid valves |
| Product Name Description | Solenoid valve |
| Actuator system [mm] | 13.5 mm |
| Ambient temperature | -40 - 80 °C |
| Ambient temperature range [°F] [max] | 175 °F |
| Ambient temperature range [°F] [min] | -40 °F |
| Approval | EAC LLC CDC TYSK |
| Body material | Stainless steel |
| China RoHS compliance | Yes |
| China RoHS exemption clause | No |
| Coil | No |
| Connection material | Stainless steel |
| Contains batteries | No |
| Cv value [gal/min] | 5.2 gal/min |
| Direction | Straightway |
| EU RoHS compliance | Yes |
| EU RoHS exemption clause | No |
| Flow direction indicator | Embossed 1-way arrow |
| Function | NC |
| Inlet connection standard | EN 10220 |
| Inlet connection type | Butt weld |
| Inlet size [in] | 1 in |
| Kv value [m³/h] | 4.5 m³/h |
| Manual operation option | Yes |
| Max. Working Pressure [bar] | 50 bar |
| Max. Working Pressure [psig] | 725 psig |
| MaxOPD[bar] 10W AC | 21 bar |
| MaxOPD[bar] 12W AC | 25 bar |
| MaxOPD[bar] 20W DC | 13 bar |
| Medium temp. range note | Defrost max 130°C/265°F |
| Medium temperature range [°C] [max] | 105 °C |
| Medium temperature range [°C] [min] | -40 °C |
| Medium temperature range [°F] [max] | 221 °F |
| Medium temperature range [°F] [min] | -40 °F |
| MinODP [bar] | 0.05 bar |
| Orifice size [mm] | 16 mm |
| Outlet connection standard | EN 10220 |
| Outlet connection type | Butt weld |
| Outlet size [in] | 1 in |
| Packing format | Single pack |
| Parts Program name | EVRS / EVRST |
| Product accessories | Solenoid valve accessories |
| Quantity per packing format | 1 pc |
| REACH Candidate List substances | No |
| Refrigerants | R502 R717 R744 R507A R134a R22 R401A R402A R404A R407A R407B R407C R407F R409A R410A R421A |
| Serviceable | Solenoid valve spare parts |
| Type designation | Solenoid valve |
| Valve operation | Servo-diaphragm |
| Actuator system [mm] | 13.5 mm |
| Ambient temperature | -40 - 80 °C |
| Ambient temperature range [°F] [max] | 175 °F |
| Ambient temperature range [°F] [min] | -40 °F |
| Approval | EAC LLC CDC TYSK |
| Body material | Stainless steel |
| China RoHS compliance | Yes |
| China RoHS exemption clause | No |
| Coil | No |
| Connection material | Stainless steel |
| Contains batteries | No |
| Cv value [gal/min] | 5.2 gal/min |
| Direction | Straightway |
| EU RoHS compliance | Yes |
| EU RoHS exemption clause | No |
| Flow direction indicator | Embossed 1-way arrow |
| Function | NC |
| Inlet connection standard | EN 10220 |
| Inlet connection type | Butt weld |
| Inlet size [in] | 1 in |
| Kv value [m³/h] | 4.5 m³/h |
| Manual operation option | Yes |
| Max. Working Pressure [bar] | 50 bar |
| Max. Working Pressure [psig] | 725 psig |
| MaxOPD[bar] 10W AC | 21 bar |
| MaxOPD[bar] 12W AC | 25 bar |
| MaxOPD[bar] 20W DC | 13 bar |
| Medium temp. range note | Defrost max 130°C/265°F |
| Medium temperature range [°C] [max] | 105 °C |
| Medium temperature range [°C] [min] | -40 °C |
| Medium temperature range [°F] [max] | 221 °F |
| Medium temperature range [°F] [min] | -40 °F |
| MinODP [bar] | 0.05 bar |
| Orifice size [mm] | 16 mm |
| Outlet connection standard | EN 10220 |
| Outlet connection type | Butt weld |
| Outlet size [in] | 1 in |
| Packing format | Single pack |
| Parts Program name | EVRS / EVRST |
| Product accessories | Solenoid valve accessories |
| Quantity per packing format | 1 pc |
| REACH Candidate List substances | No |
| Refrigerants | R502 R717 R744 R507A R134a R22 R401A R402A R404A R407A R407B R407C R407F R409A R410A R421A |
| Serviceable | Solenoid valve spare parts |
| Type designation | Solenoid valve |
| Valve operation | Servo-diaphragm |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE DANFOSS REFRIGERATION AND AIRCONDITIONING EN.pdf | 11 Mbytes |
|
| 032F5437 032F5437 EN_032F2237.pdf | 1 Mbytes |
|
