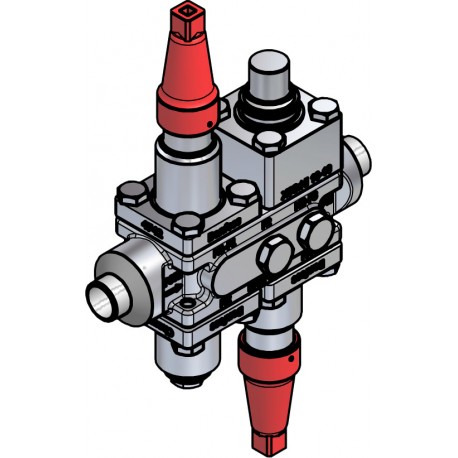

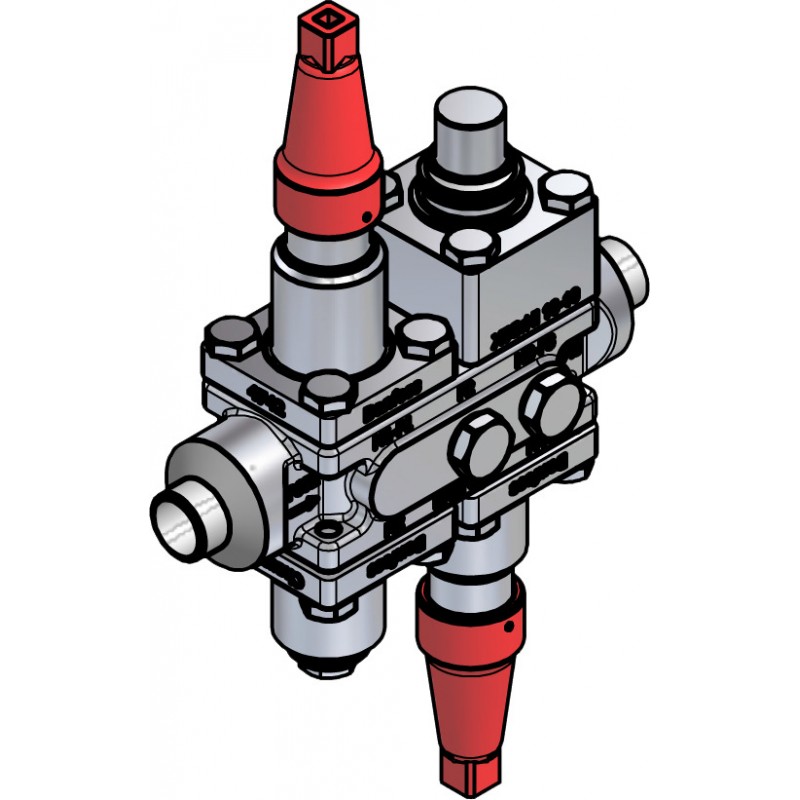

027L4710 DANFOSS REFRIGERATION Valve Station ICF SS 20-4-14MA
027L4710
DANFOSS REFRIGERATION
Valve Station ICF SS 20-4-14MA
Valve station, ICF SS 20-4-14MA, 20 mm, Connection standard: EN 10220
Home > DANFOSS REFRIGERATION
* Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS REFRIGERATION
Related products
▲More info
▲Connection size [mm]: 20, Connection type: Butt weld, Body material: Stainless steel, Surface coating: uncoated, Max. Working Pressure [bar]: 52.0, Temperature range [°C]: -60 - 120
Product details
| Gross weight | 7.923 Kg |
| Net weight | 0.007 Kg |
| Volume | 16 Liter |
| EAN | 5702428928496 |
| Gross weight | 7.923 Kg |
| Net weight | 0.007 Kg |
| Volume | 16 Liter |
| EAN | 5702428928496 |
| Approval | CE EAC LLC CDC EURO-TYSK UKCA |
| Body material | Stainless steel |
| Connection material | Stainless steel |
| Connection size [in] | 3/4 in |
| Connection size [mm] | 20 mm |
| Connection standard | EN 10220 |
| Connection type | Butt weld |
| Direction | Straightway |
| Equipment | Cap |
| EU RoHS compliance | No - out of scope |
| Flow direction indicator | Embossed 1-way arrow |
| Fluid Group | 1 |
| In scope of WEEE and contain batteries | No |
| Max. Working Pressure [bar] | 52 bar |
| Max. Working Pressure [psig] | 754 psig |
| Module 1 | Stop valve |
| Module 1 type | ICFS SS 20 |
| Module 2 | Filter |
| Module 2 type | ICFF SS 20 |
| Module 3 | Motor valve |
| Module 3 type | ICM SS 20-A |
| Module 4 | Stop valve |
| Module 4 type | ICFS SS 20 |
| Packing format | Single pack |
| PED category | II |
| Product accessories | ICF accessories |
| Product description | Control Solution |
| Product group | Multifunction valves |
| Product Name Description | Valve station |
| Quantity per packing format | 1 pc |
| Refrigerants | R134a R22 R401A R402A R404A R407A R407B R407C R407F R409A R410A R421A R502 R717 R744 R507A R1234yf R1234ze(E) R125 R227ea R236fa R245fa R32 R407H R417A R422A R422B R422D R438A R442A R444B R447A R447B R448A R449A R449B R450A R452A R452B R454A R454B R454C R455A R463A R513A R513B R515A R515B R516A |
| Serviceable | ICF spare parts |
| Side port connection size [in] | 3/8 in |
| Side port connection type | G |
| Side port placement | P2-P3-P5-P6 |
| Side port quantity [pc] | 4 pc |
| Surface coating | uncoated |
| Temperature range [°C] [max] | 120 °C |
| Temperature range [°C] [min] | -60 °C |
| Temperature range [°F] [max] | 248 °F |
| Temperature range [°F] [min] | -76 °F |
| Type | ICF SS 20-4-14MA |
| Type code ICF | ICF-20-4-20KSXFXMASXXXXX4EXX |
| UL approval file name | REFRIGERANT VALVE 53R0 |
| Approval | CE EAC LLC CDC EURO-TYSK UKCA |
| Body material | Stainless steel |
| Connection material | Stainless steel |
| Connection size [in] | 3/4 in |
| Connection size [mm] | 20 mm |
| Connection standard | EN 10220 |
| Connection type | Butt weld |
| Direction | Straightway |
| Equipment | Cap |
| EU RoHS compliance | No - out of scope |
| Flow direction indicator | Embossed 1-way arrow |
| Fluid Group | 1 |
| In scope of WEEE and contain batteries | No |
| Max. Working Pressure [bar] | 52 bar |
| Max. Working Pressure [psig] | 754 psig |
| Module 1 | Stop valve |
| Module 1 type | ICFS SS 20 |
| Module 2 | Filter |
| Module 2 type | ICFF SS 20 |
| Module 3 | Motor valve |
| Module 3 type | ICM SS 20-A |
| Module 4 | Stop valve |
| Module 4 type | ICFS SS 20 |
| Packing format | Single pack |
| PED category | II |
| Product accessories | ICF accessories |
| Product description | Control Solution |
| Product group | Multifunction valves |
| Product Name Description | Valve station |
| Quantity per packing format | 1 pc |
| Refrigerants | R134a R22 R401A R402A R404A R407A R407B R407C R407F R409A R410A R421A R502 R717 R744 R507A R1234yf R1234ze(E) R125 R227ea R236fa R245fa R32 R407H R417A R422A R422B R422D R438A R442A R444B R447A R447B R448A R449A R449B R450A R452A R452B R454A R454B R454C R455A R463A R513A R513B R515A R515B R516A |
| Serviceable | ICF spare parts |
| Side port connection size [in] | 3/8 in |
| Side port connection type | G |
| Side port placement | P2-P3-P5-P6 |
| Side port quantity [pc] | 4 pc |
| Surface coating | uncoated |
| Temperature range [°C] [max] | 120 °C |
| Temperature range [°C] [min] | -60 °C |
| Temperature range [°F] [max] | 248 °F |
| Temperature range [°F] [min] | -76 °F |
| Type | ICF SS 20-4-14MA |
| Type code ICF | ICF-20-4-20KSXFXMASXXXXX4EXX |
| UL approval file name | REFRIGERANT VALVE 53R0 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| 027L4710 027L4710 | 572 Kbytes |
 |
