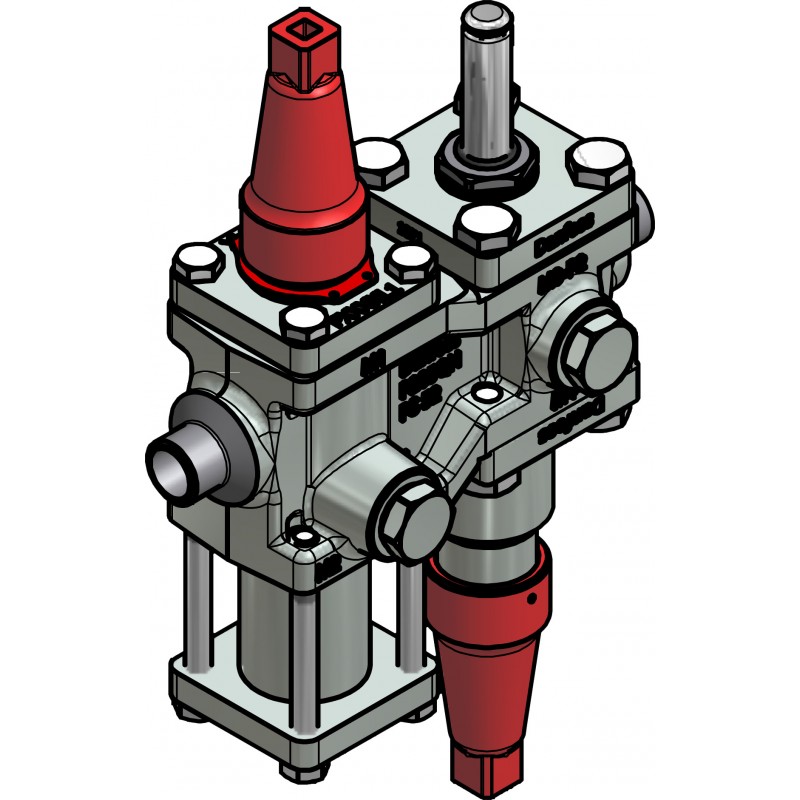

DANFOSS REFRIGERATION 027L4571 027L4571 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

027L4571 DANFOSS REFRIGERATION Valve station

Name: 027L4571 DANFOSS REFRIGERATION Valve station
Brand: DANFOSS REFRIGERATION
SKU: DAO027L4571
Price: 1449.26 USD
Availability: OutOfStock

Reference: 027L4571

Manufacturer: DANFOSS REFRIGERATION

Description:

Valve station

Valve Station ICF 15-4-9

Valve station, ICF 15-4-9, 20 mm, Connection standard: EN 10220

Categories:

DANFOSS REFRIGERATION

Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS REFRIGERATION

More Info
Reviews

Guarantee, repair and return.

Unit Price: 1.294,65 €

This price is per unit and is the net value (not including taxes if applicable).

Special discounts for registered customers.Login or register and prices will be updated.

Calculate price by quantity

Quantity	Price

Standard lead time: 4-5 days.

These delivery times are an estimate any may vary when the item order has been processed.
You will be notified of any change to delivery times once the order has been processed.
To this delivery time you have to add the time of transport from our logistics centre to your company.

MORE INFO

Connection size [mm]: 20, Connection type: Butt weld, Body material: Steel, Surface coating: Zn (TLP), Max. Working Pressure [bar]: 52, Temperature range [°C]: -60 - 120

Product details

Gross weight	6.716 Kilogram
Net weight	6 Kilogram
Volume	12.034 Liter
EAN	5715162165072

Type	ICF 15-4-9
Product group	Multifunction valves
Product Name Description	Valve station

Gross weight	6.716 Kilogram
Net weight	6 Kilogram
Volume	12.034 Liter
EAN	5715162165072
Type	ICF 15-4-9
Product group	Multifunction valves
Product Name Description	Valve station

Approval	EAC UL
Body material	Steel
China RoHS compliance	Yes with exemptions
China RoHS exemption clause	7.1 7.2
Connection material	Steel
Connection size [in]	3/4 in
Connection size [mm]	20 mm
Connection standard	EN 10220
Connection type	Butt weld
Contains batteries	No
Direction	Straightway
Equipment	Cap
EU RoHS compliance	Yes with exemptions
EU RoHS exemption clause	6(a) 6(b)
Flow direction indicator	Embossed 1-way arrow
Fluid Group	1
Max. Working Pressure [bar]	52 bar
Max. Working Pressure [psig]	450 psig
Module 1	Stop valve
Module 1 type	ICFS 15
Module 2	Filter
Module 2 type	ICFF 15
Module 3	Solenoid valve
Module 3 type	ICFE 20

Module 4	Stop valve
Module 4 type	ICFS 20
Packing format	Single pack
PED category	Art. 4, par. 3
Product accessories	ICF accessories
Product description	Control Solution
Quantity per packing format	1 pc
REACH Candidate List substances	Lead (CAS no. 7439-92-1)
Refrigerants	R134a R22 R401A R402A R404A R407A R407B R407C R407F R409A R410A R421A R502 R717 R744 R507A R1234yf R1234ze(E) R125 R227ea R236fa R245fa R32 R407H R417A R422A R422B R422D R438A R442A R444B R447A R447B R448A R449A R449B R450A R452A R452B R454A R454B R454C R455A R463A R513A R513B R515A R515B R516A
SCIP dossier no.	f6a29f33-704f-4e94-9054-608e74f2a435
SCIP dossier product name	ICF
Serviceable	ICF spare parts
Side port connection size [in]	3/8 in
Side port connection type	G
Side port placement	P1-P2
Side port quantity [pc]	2 pc
Surface coating	Zn (TLP)
Temperature range [°C] [max]	120 °C
Temperature range [°C] [min]	-60 °C
Temperature range [°F] [max]	248 °F
Temperature range [°F] [min]	-76 °F
Type code ICF	ICF-15-4-20DSYFYEXSXXXXX29XX
UL approval file name	REFRIGERANT VALVE 53R0
UL mark	Yes

Approval	EAC UL
Body material	Steel
China RoHS compliance	Yes with exemptions
China RoHS exemption clause	7.1 7.2
Connection material	Steel
Connection size [in]	3/4 in
Connection size [mm]	20 mm
Connection standard	EN 10220
Connection type	Butt weld
Contains batteries	No
Direction	Straightway
Equipment	Cap
EU RoHS compliance	Yes with exemptions
EU RoHS exemption clause	6(a) 6(b)
Flow direction indicator	Embossed 1-way arrow
Fluid Group	1
Max. Working Pressure [bar]	52 bar
Max. Working Pressure [psig]	450 psig
Module 1	Stop valve
Module 1 type	ICFS 15
Module 2	Filter
Module 2 type	ICFF 15
Module 3	Solenoid valve
Module 3 type	ICFE 20
Module 4	Stop valve
Module 4 type	ICFS 20
Packing format	Single pack
PED category	Art. 4, par. 3
Product accessories	ICF accessories
Product description	Control Solution
Quantity per packing format	1 pc
REACH Candidate List substances	Lead (CAS no. 7439-92-1)
Refrigerants	R134a R22 R401A R402A R404A R407A R407B R407C R407F R409A R410A R421A R502 R717 R744 R507A R1234yf R1234ze(E) R125 R227ea R236fa R245fa R32 R407H R417A R422A R422B R422D R438A R442A R444B R447A R447B R448A R449A R449B R450A R452A R452B R454A R454B R454C R455A R463A R513A R513B R515A R515B R516A
SCIP dossier no.	f6a29f33-704f-4e94-9054-608e74f2a435
SCIP dossier product name	ICF
Serviceable	ICF spare parts
Side port connection size [in]	3/8 in
Side port connection type	G
Side port placement	P1-P2
Side port quantity [pc]	2 pc
Surface coating	Zn (TLP)
Temperature range [°C] [max]	120 °C
Temperature range [°C] [min]	-60 °C
Temperature range [°F] [max]	248 °F
Temperature range [°F] [min]	-76 °F
Type code ICF	ICF-15-4-20DSYFYEXSXXXXX29XX
UL approval file name	REFRIGERANT VALVE 53R0
UL mark	Yes
