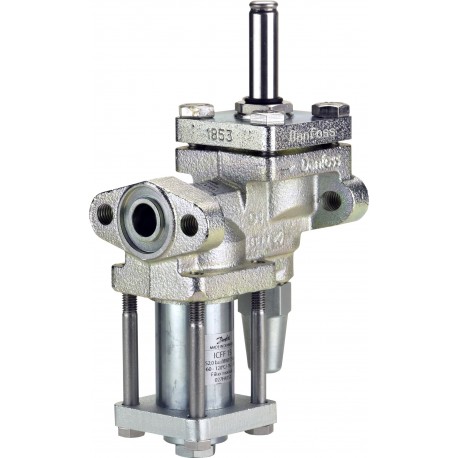

027L4517 DANFOSS REFRIGERATION Valve station

Name: 027L4517 DANFOSS REFRIGERATION Valve station
Brand: DANFOSS REFRIGERATION
SKU: DAO027L4517
Price: 824.01 USD
Availability: OutOfStock

Reference: 027L4517

Manufacturer: DANFOSS REFRIGERATION

Description:

Valve station

Valve Station ICF 15 EVRAT

Valve station, ICF 15 EVRAT, 15 mm, Connection standard: NA

Categories:

DANFOSS REFRIGERATION

Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS REFRIGERATION

More Info
PDF
Reviews

Guarantee, repair and return.

Unit Price: 736,10 €

This price is per unit and is the net value (not including taxes if applicable).

Special discounts for registered customers.Login or register and prices will be updated.

Calculate price by quantity

Quantity	Price

Standard lead time: 4-5 days.

These delivery times are an estimate any may vary when the item order has been processed.
You will be notified of any change to delivery times once the order has been processed.
To this delivery time you have to add the time of transport from our logistics centre to your company.

MORE INFO

Connection size [mm]: 15, Connection type: Flange, Body material: Steel, Surface coating: Zn (TLP), Max. Working Pressure [bar]: 42, Temperature range [°C]: -40 - 105

Product details

Gross weight	3.683 Kilogram
Net weight	3.335 Kilogram
Volume	27.38 Liter
EAN	5702428884143

Type	ICF 15 EVRAT
Product group	Multifunction valves
Product Name Description	Valve station

Gross weight	3.683 Kilogram
Net weight	3.335 Kilogram
Volume	27.38 Liter
EAN	5702428884143
Type	ICF 15 EVRAT
Product group	Multifunction valves
Product Name Description	Valve station

Approval	EAC UL
Body material	Steel
China RoHS compliance	Yes with exemptions
China RoHS exemption clause	7.1 7.2
Connection material	Steel
Connection size [in]	1/2 in
Connection size [mm]	15 mm
Connection standard	NA
Connection type	Flange
Contains batteries	No
Direction	Straightway
EU RoHS compliance	Yes with exemptions
EU RoHS exemption clause	6(a) 6(b)
Flow direction indicator	Embossed 1-way arrow
Fluid Group	1
Max. Working Pressure [bar]	42 bar
Max. Working Pressure [psig]	610 psig
Module 2	Filter
Module 2 type	ICFF 15
Module 3	Solenoid valve
Module 3 type	ICFE 20

Module 4	Manual opening
Module 4 type	ICF 14
Packing format	Single pack
PED category	Art. 4, par. 3
Product accessories	Flanges ICF accessories
Product description	Control Solution
Quantity per packing format	1 pc
REACH Candidate List substances	Lead (CAS no. 7439-92-1)
Refrigerants	R134a R22 R401A R402A R404A R407A R407B R407C R407F R409A R410A R421A R502 R717 R507A
SCIP dossier no.	f6a29f33-704f-4e94-9054-608e74f2a435
SCIP dossier product name	ICF
Serviceable	ICF spare parts
Surface coating	Zn (TLP)
Temperature range [°C] [max]	105 °C
Temperature range [°C] [min]	-40 °C
Temperature range [°F] [max]	221 °F
Temperature range [°F] [min]	-40 °F
Type code ICF	ICF-15-4-15XXXXXXXXXXXXXXYXX
UL approval file name	REFRIGERANT VALVE 53R0
UL mark	Yes

Approval	EAC UL
Body material	Steel
China RoHS compliance	Yes with exemptions
China RoHS exemption clause	7.1 7.2
Connection material	Steel
Connection size [in]	1/2 in
Connection size [mm]	15 mm
Connection standard	NA
Connection type	Flange
Contains batteries	No
Direction	Straightway
EU RoHS compliance	Yes with exemptions
EU RoHS exemption clause	6(a) 6(b)
Flow direction indicator	Embossed 1-way arrow
Fluid Group	1
Max. Working Pressure [bar]	42 bar
Max. Working Pressure [psig]	610 psig
Module 2	Filter
Module 2 type	ICFF 15
Module 3	Solenoid valve
Module 3 type	ICFE 20
Module 4	Manual opening
Module 4 type	ICF 14
Packing format	Single pack
PED category	Art. 4, par. 3
Product accessories	Flanges ICF accessories
Product description	Control Solution
Quantity per packing format	1 pc
REACH Candidate List substances	Lead (CAS no. 7439-92-1)
Refrigerants	R134a R22 R401A R402A R404A R407A R407B R407C R407F R409A R410A R421A R502 R717 R507A
SCIP dossier no.	f6a29f33-704f-4e94-9054-608e74f2a435
SCIP dossier product name	ICF
Serviceable	ICF spare parts
Surface coating	Zn (TLP)
Temperature range [°C] [max]	105 °C
Temperature range [°C] [min]	-40 °C
Temperature range [°F] [max]	221 °F
Temperature range [°F] [min]	-40 °F
Type code ICF	ICF-15-4-15XXXXXXXXXXXXXXYXX
UL approval file name	REFRIGERANT VALVE 53R0
UL mark	Yes
