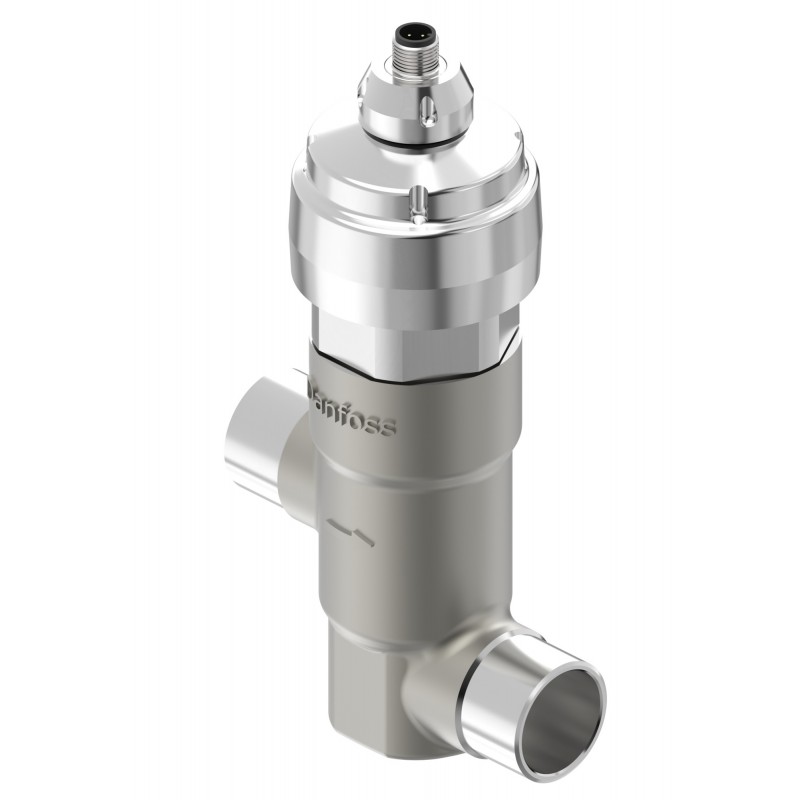

027H8231 DANFOSS REFRIGERATION Electric regulating valve
027H8231
DANFOSS REFRIGERATION
Electric regulating valve
CCMT 16 Elec.reg.valve w.out transmitter
Electric regulating valve, CCMT 16, 1 1/8 in
Home > DANFOSS REFRIGERATION
Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS REFRIGERATION
Best sellers
▲More info
▲Refrigerants: R744; R134a; R1234yf, Kv value [m³/h]: 1.6, Max. Working Pressure [bar]: 140, Connection type: Solder, ODF, Connection Weld size [in]: 1 in, Packing format: Single pack, Quantity per packing format: 1
Product details
| Gross weight | 2.928 Kilogram |
| Net weight | 2.558 Kilogram |
| Volume | 7.383 Liter |
| EAN | 5702428030557 |
| Type | CCMT 16 |
| Product group | Press. and temp. regul. valves |
| Product Name Description | Electric regulating valve |
| Gross weight | 2.928 Kilogram |
| Net weight | 2.558 Kilogram |
| Volume | 7.383 Liter |
| EAN | 5702428030557 |
| Type | CCMT 16 |
| Product group | Press. and temp. regul. valves |
| Product Name Description | Electric regulating valve |
| Ambient temperature range [°C] [max] | 60 °C |
| Ambient temperature range [°C] [min] | -40 °C |
| Ambient temperature range [°F] [max] | 140 °F |
| Ambient temperature range [°F] [min] | -40 °F |
| Approval | LLC CDC EURO-TYSK cURus |
| China RoHS compliance | Out of scope |
| Connection Solder size [in] | 1 1/8 in |
| Connection standard | EN10220 |
| Connection type | Solder, ODF |
| Connection Weld size [in] | 1 in |
| Contains batteries | No |
| Cv value [gal/min] | 1.882 gal/min |
| Diff.press.setting range [bar] | 90 bar |
| Diff.press.setting range [psi] | 1305 psi |
| EU RoHS compliance | Out of scope |
| Kv value [m³/h] | 1.6 m³/h |
| Max. Working Pressure [bar] | 140 bar |
| Max. Working Pressure [psig] | 2030 psig |
| MaxOPD [bar] | 90 bar |
| MaxOPD [psig] | 1305 psig |
| Packing format | Single pack |
| Product accessories | Electric valve accessories |
| Product description | Electric Expansion Valve |
| Quantity per packing format | 1 pc |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| Refrigerants | R1234yf R134a R744 |
| SCIP dossier no. | 1b44dca2-c37c-46bc-ac76-7c2c62b348a3 |
| SCIP dossier product name | CCMT |
| Serviceable | Electric valve spare parts |
| Temperature range [°C] [max] | 60 °C |
| Temperature range [°C] [min] | -40 °C |
| Temperature range [°F] [max] | 140 °F |
| Temperature range [°F] [min] | -40 °F |
| UL approved refrigerants | R134a R744 |
| UL mark | Yes |
| Ambient temperature range [°C] [max] | 60 °C |
| Ambient temperature range [°C] [min] | -40 °C |
| Ambient temperature range [°F] [max] | 140 °F |
| Ambient temperature range [°F] [min] | -40 °F |
| Approval | LLC CDC EURO-TYSK cURus |
| China RoHS compliance | Out of scope |
| Connection Solder size [in] | 1 1/8 in |
| Connection standard | EN10220 |
| Connection type | Solder, ODF |
| Connection Weld size [in] | 1 in |
| Contains batteries | No |
| Cv value [gal/min] | 1.882 gal/min |
| Diff.press.setting range [bar] | 90 bar |
| Diff.press.setting range [psi] | 1305 psi |
| EU RoHS compliance | Out of scope |
| Kv value [m³/h] | 1.6 m³/h |
| Max. Working Pressure [bar] | 140 bar |
| Max. Working Pressure [psig] | 2030 psig |
| MaxOPD [bar] | 90 bar |
| MaxOPD [psig] | 1305 psig |
| Packing format | Single pack |
| Product accessories | Electric valve accessories |
| Product description | Electric Expansion Valve |
| Quantity per packing format | 1 pc |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| Refrigerants | R1234yf R134a R744 |
| SCIP dossier no. | 1b44dca2-c37c-46bc-ac76-7c2c62b348a3 |
| SCIP dossier product name | CCMT |
| Serviceable | Electric valve spare parts |
| Temperature range [°C] [max] | 60 °C |
| Temperature range [°C] [min] | -40 °C |
| Temperature range [°F] [max] | 140 °F |
| Temperature range [°F] [min] | -40 °F |
| UL approved refrigerants | R134a R744 |
| UL mark | Yes |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE DANFOSS REFRIGERATION AND AIRCONDITIONING EN.pdf | 11 Mbytes |
|
| 027H8231 027H8231 ES_027H7200.pdf | 1 Mbytes |
|
