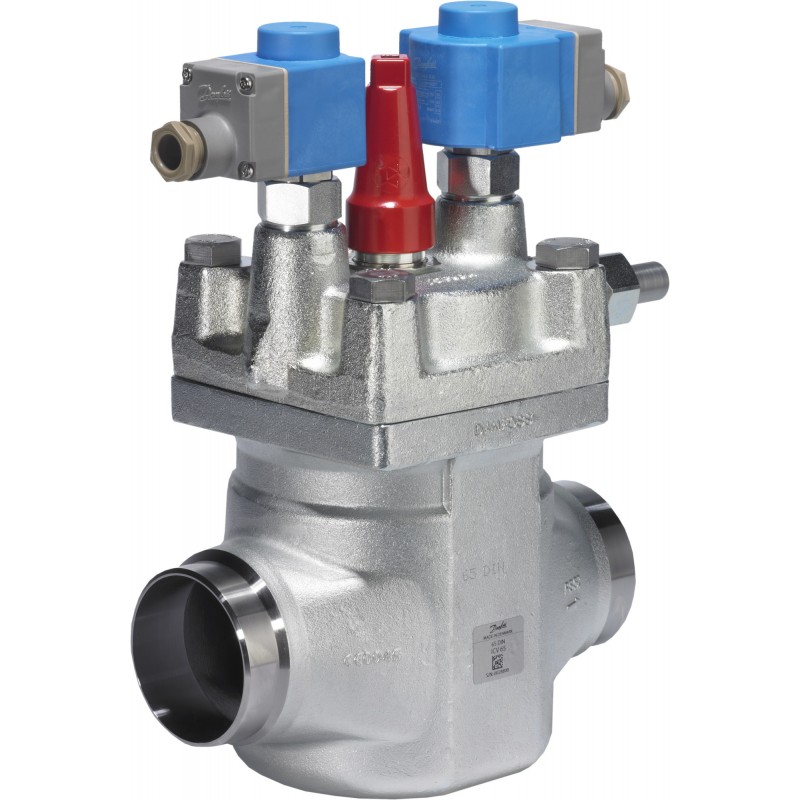

027H8042 DANFOSS REFRIGERATION 2-step solenoid valve, ICLX 80
027H8042
DANFOSS REFRIGERATION
2-step solenoid valve, ICLX 80
ICLX 65 80 ANSI
2-step solenoid valve, ICLX 80, 80 mm, Butt weld
Home > DANFOSS REFRIGERATION
Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS REFRIGERATION
Best sellers
▲More info
▲Description: 2-step solenoid valve, 2-step solenoid valve, Kv value [m³/h]: 82
Product details
| Gross weight | 19.037 Kilogram |
| Net weight | 15.758 Kilogram |
| Volume | 20.671 Liter |
| EAN | 5702428483070 |
| Type | ICLX 80 |
| Product group | Solenoid valves |
| Product Name Description | 2-step solenoid valve |
| Gross weight | 19.037 Kilogram |
| Net weight | 15.758 Kilogram |
| Volume | 20.671 Liter |
| EAN | 5702428483070 |
| Type | ICLX 80 |
| Product group | Solenoid valves |
| Product Name Description | 2-step solenoid valve |
| Actuator system | 2 EVM pilot sol valve module |
| Approval | EAC LLC CDC TYSK TÜV UL |
| Body material | Steel |
| Brand | ICV Flexline |
| China RoHS compliance | Yes with exemptions |
| China RoHS exemption clause | 7.1 7.2 |
| Connection material | Steel |
| Connection standard | ASME B 16.11 |
| Contains batteries | No |
| Cv value [gal/min] | 95.12 gal/min |
| Description | 2-step solenoid valve |
| Direction | Straightway |
| EU RoHS compliance | Yes with exemptions |
| EU RoHS exemption clause | 6(a) 6(b) |
| Ext pilot pressure connection | Weld nipple (P2 Port) |
| Flow direction indicator | Embossed 1-way arrow |
| Fluid Group | 1 |
| Inlet connection size [in] | 3 in |
| Inlet connection size [mm] | 80 mm |
| Inlet connection type | Butt weld |
| Kv value [m³/h] | 82 m³/h |
| Manual operation option | Manual open spindle |
| Max. Working Pressure [bar] | 65 bar |
| Max. Working Pressure [psig] | 943 psig |
| Opening configuration | 1-step (optional setting) 2-step (default) |
| Outlet connection size [in] | 3 in |
| Outlet connection size [mm] | 80 mm |
| Outlet connection type | Butt weld |
| Packing format | Single pack |
| Parts Program name | ICLX |
| PED category | II |
| Product accessories | ICM / ICS / ICLX accessories |
| Product description | Solenoid valve |
| Quantity per packing format | 1 pc |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| Refrigerants | R134a R22 R401A R402A R404A R407A R407B R407C R407F R409A R410A R421A R502 R717 R744 R507A |
| SCIP dossier no. | a65a5318-3dcd-4e13-b6f2-5cef46ffb9e6 |
| SCIP dossier product name | ICLX 32-65 |
| Serviceable | ICM / ICS / ICLX spare parts |
| Step 1 opening degree (~) [%] | 10 % |
| Step 2 initialization | Delta p < 1.25 bar (18 psig) |
| Surface coating | Zn (TLP) |
| Temperature range [°C] [max] | 120 °C |
| Temperature range [°C] [min] | -60 °C |
| Temperature range [°F] [max] | 248 °F |
| Temperature range [°F] [min] | -76 °F |
| UL approval file name | REFRIGERANT VALVE 53R0 |
| UL mark | Yes |
| Valve operation | Solenoid operated |
| Valve version | Standard version |
| Actuator system | 2 EVM pilot sol valve module |
| Approval | EAC LLC CDC TYSK TÜV UL |
| Body material | Steel |
| Brand | ICV Flexline |
| China RoHS compliance | Yes with exemptions |
| China RoHS exemption clause | 7.1 7.2 |
| Connection material | Steel |
| Connection standard | ASME B 16.11 |
| Contains batteries | No |
| Cv value [gal/min] | 95.12 gal/min |
| Description | 2-step solenoid valve |
| Direction | Straightway |
| EU RoHS compliance | Yes with exemptions |
| EU RoHS exemption clause | 6(a) 6(b) |
| Ext pilot pressure connection | Weld nipple (P2 Port) |
| Flow direction indicator | Embossed 1-way arrow |
| Fluid Group | 1 |
| Inlet connection size [in] | 3 in |
| Inlet connection size [mm] | 80 mm |
| Inlet connection type | Butt weld |
| Kv value [m³/h] | 82 m³/h |
| Manual operation option | Manual open spindle |
| Max. Working Pressure [bar] | 65 bar |
| Max. Working Pressure [psig] | 943 psig |
| Opening configuration | 1-step (optional setting) 2-step (default) |
| Outlet connection size [in] | 3 in |
| Outlet connection size [mm] | 80 mm |
| Outlet connection type | Butt weld |
| Packing format | Single pack |
| Parts Program name | ICLX |
| PED category | II |
| Product accessories | ICM / ICS / ICLX accessories |
| Product description | Solenoid valve |
| Quantity per packing format | 1 pc |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| Refrigerants | R134a R22 R401A R402A R404A R407A R407B R407C R407F R409A R410A R421A R502 R717 R744 R507A |
| SCIP dossier no. | a65a5318-3dcd-4e13-b6f2-5cef46ffb9e6 |
| SCIP dossier product name | ICLX 32-65 |
| Serviceable | ICM / ICS / ICLX spare parts |
| Step 1 opening degree (~) [%] | 10 % |
| Step 2 initialization | Delta p < 1.25 bar (18 psig) |
| Surface coating | Zn (TLP) |
| Temperature range [°C] [max] | 120 °C |
| Temperature range [°C] [min] | -60 °C |
| Temperature range [°F] [max] | 248 °F |
| Temperature range [°F] [min] | -76 °F |
| UL approval file name | REFRIGERANT VALVE 53R0 |
| UL mark | Yes |
| Valve operation | Solenoid operated |
| Valve version | Standard version |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE DANFOSS REFRIGERATION AND AIRCONDITIONING EN.pdf | 11 Mbytes |
|
