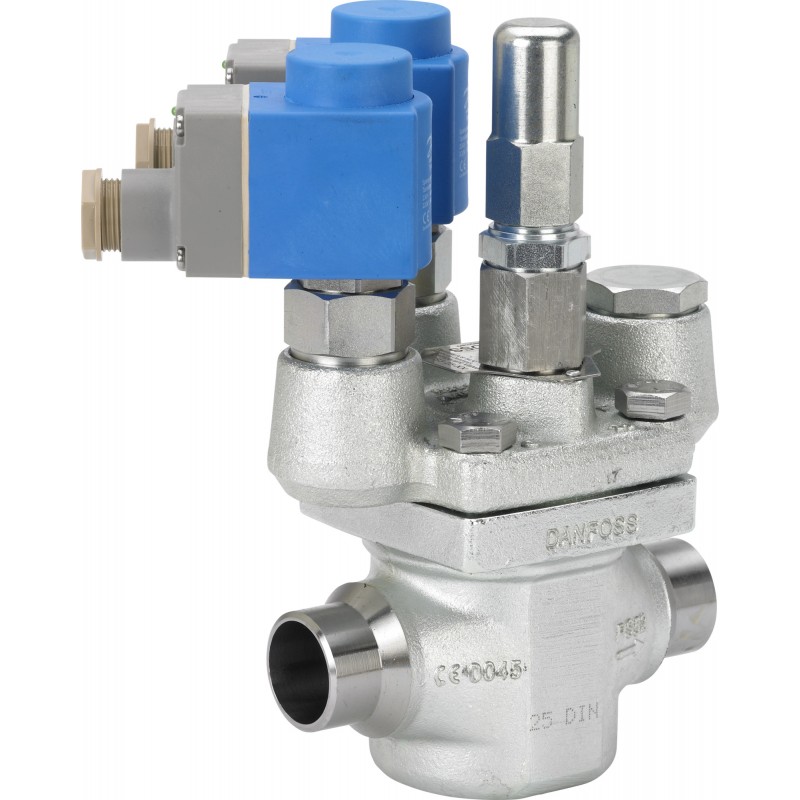

027H7302 DANFOSS REFRIGERATION Pilot operated servo valve
027H7302
DANFOSS REFRIGERATION
Pilot operated servo valve
ICSH 80 DIN
Home > DANFOSS REFRIGERATION
* Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS REFRIGERATION
Best sellers
▲More info
▲ICSH 80 Needle Housing - Repair Kit, Used for product: ICSH-80
| Gross weight | 16.7 Kg |
| Net weight | 0.01 Kg |
| EAN | 5702428999359 |
| Category | II |
| Comments | FUNCTION MODULE INSTALLED |
| Connection standard | EN 10220 |
| Cv value [gal/min] | 95.12 gal/min |
| Direction | Straightway |
| Fluid Group | I |
| Further information | FUNCTION MODULE INSTALLED |
| Inlet connection size [in] | 3 in |
| Inlet connection size [mm] | 80 mm |
| Inlet connection type | Butt weld |
| Kv value [m³/h] | 82 m3/h |
| Max. Working Pressure [bar] | 52 bar |
| Max. Working Pressure [psig] | 754 psig |
| Outlet connection size [in] | 3 in |
| Outlet connection size [mm] | 80 mm |
| Outlet connection type | Butt weld |
| Packing format | Single pack |
| Product description | Servo operated valve |
| Product Group | Press. and temp. regul. valves |
| Product name | Pilot operated servo valve |
| Product type | ICSH-80 |
| Quantity per packing format | 1 pc |
| Refrigerants | R134a R22 R401A R402A R404A R407A R407B R407C R407F R409A R410A R421A R502 R507 R717 R744 |
| Temperature range [°C] [Max] | 120 °C |
| Temperature range [°C] [Min] | -60 °C |
| Temperature range [°F] [Max] | 248 °F |
| Temperature range [°F] [Min] | -76 °F |
| Top cover | 3 function modules |
| UL approval file name | REFRIGERANT VALVE 53R0 |
| Valve version | Standard version |
