Product:MTZ18-4VM DANFOSS REFRIGERATION Reciproc...

Images are for illustrative purposes only. Please refer to data sheet for details.
Reference: 027H7247
Manufacturer: DANFOSS REFRIGERATION
Description:
Categories:
Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS REFRIGERATION
LAST VIEWED
Refrigerants: R744, Kv value [m³/h]: 0.8, Max. Working Pressure [bar]: 130, Connection type: Solder, ODF, Packing format: Multi pack, Quantity per packing format: 9
| Gross weight | 0.73 Kilogram |
| Net weight | 0.603 Kilogram |
| Volume | 2.236 Liter |
| EAN | 5702428679169 |

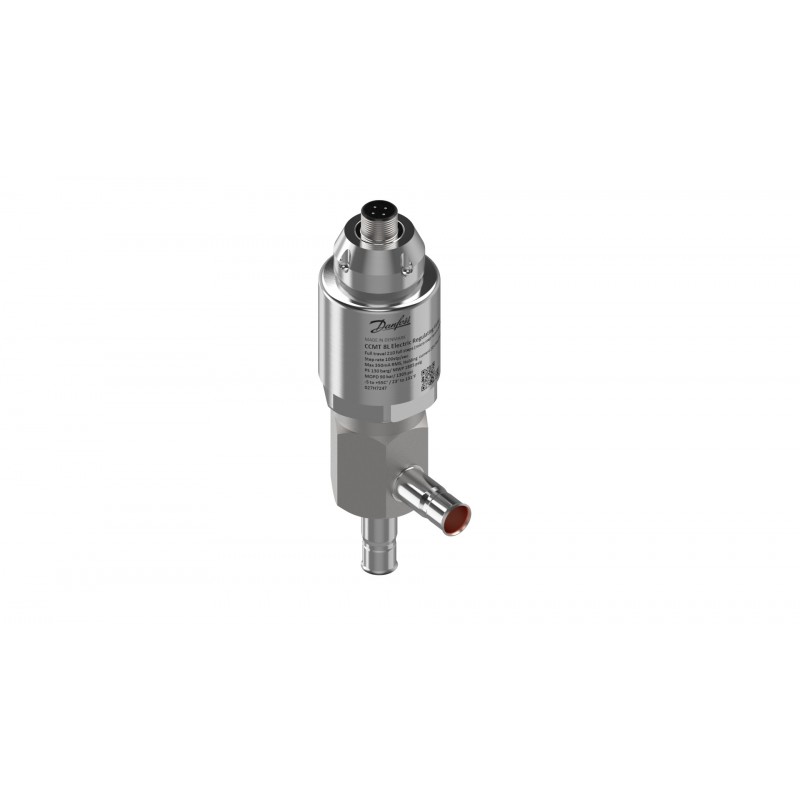

| Type | CCMT 8L |
| Product group | Press. and temp. regul. valves |
| Product Name Description | Electric regulating valve |
| Gross weight | 0.73 Kilogram |
| Net weight | 0.603 Kilogram |
| Volume | 2.236 Liter |
| EAN | 5702428679169 |
| Type | CCMT 8L |
| Product group | Press. and temp. regul. valves |
| Product Name Description | Electric regulating valve |
| Ambient temperature range [°C] [max] | 50 °C |
| Ambient temperature range [°C] [min] | -40 °C |
| Ambient temperature range [°F] [max] | 120 °F |
| Ambient temperature range [°F] [min] | -40 °F |
| China RoHS compliance | Yes |
| China RoHS exemption clause | No |
| Connection Solder size [in] | 1/2 in |
| Connection standard | EN10220 |
| Connection type | Solder, ODF |
| Contains batteries | No |
| Cv value [gal/min] | 0.925 gal/min |
| Diff.press.setting range [bar] | 90 bar |
| Diff.press.setting range [psi] | 1305 psi |
| EU RoHS compliance | Yes |
| EU RoHS exemption clause | No |
| Kv value [m³/h] | 0.8 m³/h |
| Max. Working Pressure [bar] | 130 bar |
| Max. Working Pressure [psig] | 1885 psig |
| MaxOPD [bar] | 90 bar |
| MaxOPD [psig] | 1305 psig |
| Packing format | Multi pack |
| Product accessories | Electric valve accessories |
| Product description | Electric Expansion Valve |
| Quantity per packing format | 9 pc |
| REACH Candidate List substances | No |
| Refrigerants | R744 |
| Serviceable | Electric valve spare parts |
| Temperature range [°C] [max] | 55 °C |
| Temperature range [°C] [min] | -20 °C |
| Temperature range [°F] [max] | 131 °F |
| Temperature range [°F] [min] | -4 °F |
| UL approved refrigerants | R744 |
| Ambient temperature range [°C] [max] | 50 °C |
| Ambient temperature range [°C] [min] | -40 °C |
| Ambient temperature range [°F] [max] | 120 °F |
| Ambient temperature range [°F] [min] | -40 °F |
| China RoHS compliance | Yes |
| China RoHS exemption clause | No |
| Connection Solder size [in] | 1/2 in |
| Connection standard | EN10220 |
| Connection type | Solder, ODF |
| Contains batteries | No |
| Cv value [gal/min] | 0.925 gal/min |
| Diff.press.setting range [bar] | 90 bar |
| Diff.press.setting range [psi] | 1305 psi |
| EU RoHS compliance | Yes |
| EU RoHS exemption clause | No |
| Kv value [m³/h] | 0.8 m³/h |
| Max. Working Pressure [bar] | 130 bar |
| Max. Working Pressure [psig] | 1885 psig |
| MaxOPD [bar] | 90 bar |
| MaxOPD [psig] | 1305 psig |
| Packing format | Multi pack |
| Product accessories | Electric valve accessories |
| Product description | Electric Expansion Valve |
| Quantity per packing format | 9 pc |
| REACH Candidate List substances | No |
| Refrigerants | R744 |
| Serviceable | Electric valve spare parts |
| Temperature range [°C] [max] | 55 °C |
| Temperature range [°C] [min] | -20 °C |
| Temperature range [°F] [max] | 131 °F |
| Temperature range [°F] [min] | -4 °F |
| UL approved refrigerants | R744 |
