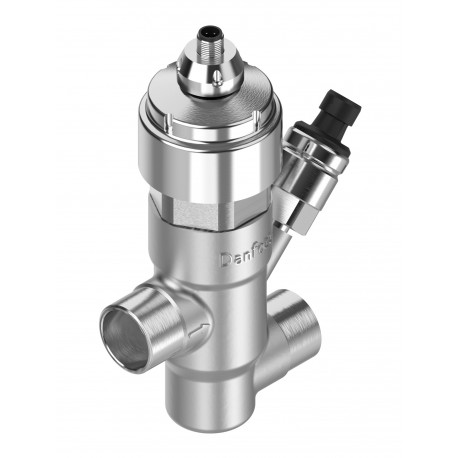

027H7233 DANFOSS REFRIGERATION Electric regulating valve
027H7233
DANFOSS REFRIGERATION
Electric regulating valve
CCMT 30 Electric reg. valve
Electric regulating valve, CCMT 30
Home > DANFOSS REFRIGERATION
* Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS REFRIGERATION
More info
▲Refrigerants: R744; R410A; R134a, Kv value [m³/h]: 3.000, Max. Working Pressure [bar]: 140.0, Packing format: Single pack, Quantity per packing format: 1
Product details
| Gross weight | 3.003 Kg |
| Net weight | 2.536 Kg |
| Volume | 7.883 Liter |
| EAN | 5702428921817 |
| Gross weight | 3.003 Kg |
| Net weight | 2.536 Kg |
| Volume | 7.883 Liter |
| EAN | 5702428921817 |
| Ambient temperature range [°C] [max] | 60 °C |
| Ambient temperature range [°C] [min] | -40 °C |
| Ambient temperature range [°F] [max] | 140 °F |
| Ambient temperature range [°F] [min] | -40 °F |
| Approval | LLC CDC EURO-TYSK UL |
| Connection Solder size [in] | 1 1/8 in |
| Connection standard | EN10220 |
| Connection type | Solder, ODF |
| Connection Weld size [in] | 1 in |
| Cv value [gal/min] | 3.48 gal/min |
| Diff.press.setting range [bar] | 90 bar |
| Diff.press.setting range [psi] | 1305 psi |
| EU RoHS compliance | No - out of scope |
| In scope of WEEE and contain batteries | No |
| Kv value [m³/h] | 3 m³/h |
| Max. Working Pressure [bar] | 140 bar |
| Max. Working Pressure [psig] | 2030 psig |
| MaxOPD [bar] | 90 bar |
| MaxOPD [psig] | 1305 psig |
| Packing format | Single pack |
| Product accessories | Electric valve accessories |
| Product description | Electric Expansion Valve |
| Product group | Press. and temp. regul. valves |
| Product Name Description | Electric regulating valve |
| Quantity per packing format | 1 pc |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| Refrigerants | R134a R744 R410A |
| SCIP dossier no. | 86df1595-1afa-4588-8508-53267586ff81 |
| Serviceable | Electric valve spare parts |
| Temperature range [°C] [max] | 60 °C |
| Temperature range [°C] [min] | -40 °C |
| Temperature range [°F] [max] | 140 °F |
| Temperature range [°F] [min] | -40 °F |
| Type | CCMT 30 |
| UL approved refrigerants | R134a R744 |
| Ambient temperature range [°C] [max] | 60 °C |
| Ambient temperature range [°C] [min] | -40 °C |
| Ambient temperature range [°F] [max] | 140 °F |
| Ambient temperature range [°F] [min] | -40 °F |
| Approval | LLC CDC EURO-TYSK UL |
| Connection Solder size [in] | 1 1/8 in |
| Connection standard | EN10220 |
| Connection type | Solder, ODF |
| Connection Weld size [in] | 1 in |
| Cv value [gal/min] | 3.48 gal/min |
| Diff.press.setting range [bar] | 90 bar |
| Diff.press.setting range [psi] | 1305 psi |
| EU RoHS compliance | No - out of scope |
| In scope of WEEE and contain batteries | No |
| Kv value [m³/h] | 3 m³/h |
| Max. Working Pressure [bar] | 140 bar |
| Max. Working Pressure [psig] | 2030 psig |
| MaxOPD [bar] | 90 bar |
| MaxOPD [psig] | 1305 psig |
| Packing format | Single pack |
| Product accessories | Electric valve accessories |
| Product description | Electric Expansion Valve |
| Product group | Press. and temp. regul. valves |
| Product Name Description | Electric regulating valve |
| Quantity per packing format | 1 pc |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| Refrigerants | R134a R744 R410A |
| SCIP dossier no. | 86df1595-1afa-4588-8508-53267586ff81 |
| Serviceable | Electric valve spare parts |
| Temperature range [°C] [max] | 60 °C |
| Temperature range [°C] [min] | -40 °C |
| Temperature range [°F] [max] | 140 °F |
| Temperature range [°F] [min] | -40 °F |
| Type | CCMT 30 |
| UL approved refrigerants | R134a R744 |
