DANFOSS REFRIGERATION 027H7232 027H7232 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

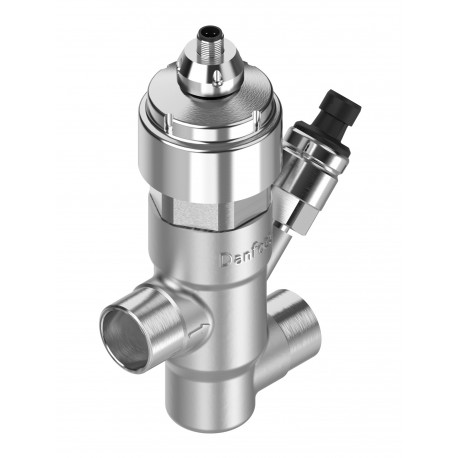

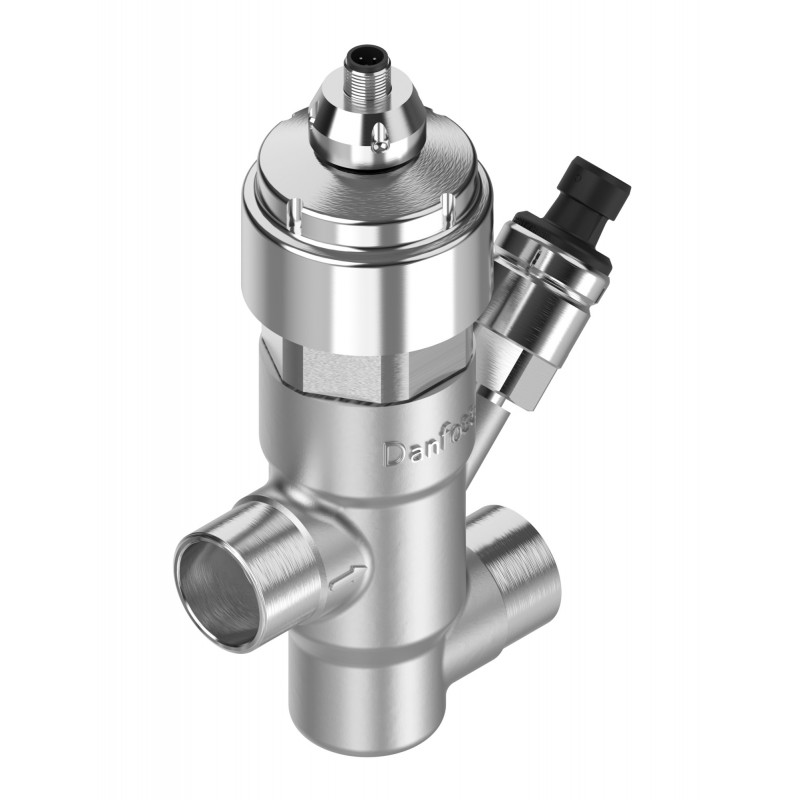

027H7232 DANFOSS REFRIGERATION Electric regulating valve

Name: 027H7232 DANFOSS REFRIGERATION Electric regulating valve
Brand: DANFOSS REFRIGERATION
SKU: DAO027H7232
Price: 1604.54 USD
Availability: OutOfStock

Reference: 027H7232

Manufacturer: DANFOSS REFRIGERATION

Description:

Electric regulating valve

CCMT 24 Electric reg. valve

Electric regulating valve, CCMT 24, 1 1/8 in

Categories:

DANFOSS REFRIGERATION

Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS REFRIGERATION

More Info
PDF
Reviews

Guarantee, repair and return.

Unit Price: 1.433,37 €

This price is per unit and is the net value (not including taxes if applicable).

Special discounts for registered customers.Login or register and prices will be updated.

Calculate price by quantity

Quantity	Price

Standard lead time: 4-5 days.

These delivery times are an estimate any may vary when the item order has been processed.
You will be notified of any change to delivery times once the order has been processed.
To this delivery time you have to add the time of transport from our logistics centre to your company.

MORE INFO

Refrigerants: R744; R410A; R134a, Kv value [m³/h]: 2.4, Max. Working Pressure [bar]: 140, Connection type: Solder, ODF, Connection Weld size [in]: 1 in, Packing format: Single pack, Quantity per packing format: 1

Product details

Gross weight	3.026 Kilogram
Net weight	2.315 Kilogram
Volume	7.383 Liter
EAN	5702428921824

Type	CCMT 24
Product group	Press. and temp. regul. valves
Product Name Description	Electric regulating valve

Gross weight	3.026 Kilogram
Net weight	2.315 Kilogram
Volume	7.383 Liter
EAN	5702428921824
Type	CCMT 24
Product group	Press. and temp. regul. valves
Product Name Description	Electric regulating valve

Ambient temperature range [°C] [max]	60 °C
Ambient temperature range [°C] [min]	-40 °C
Ambient temperature range [°F] [max]	140 °F
Ambient temperature range [°F] [min]	-40 °F
Approval	LLC CDC EURO-TYSK cURus
China RoHS compliance	Out of scope
Connection Solder size [in]	1 1/8 in
Connection standard	EN10220
Connection type	Solder, ODF
Connection Weld size [in]	1 in
Contains batteries	No
Cv value [gal/min]	2.784 gal/min
Diff.press.setting range [bar]	90 bar
Diff.press.setting range [psi]	1305 psi
EU RoHS compliance	Out of scope
Kv value [m³/h]	2.4 m³/h
Max. Working Pressure [bar]	140 bar
Max. Working Pressure [psig]	2030 psig

MaxOPD [bar]	90 bar
MaxOPD [psig]	1305 psig
Packing format	Single pack
Product accessories	Electric valve accessories
Product description	Electric Expansion Valve
Quantity per packing format	1 pc
REACH Candidate List substances	Lead (CAS no. 7439-92-1)
Refrigerants	R134a R410A R744
SCIP dossier no.	1b44dca2-c37c-46bc-ac76-7c2c62b348a3
SCIP dossier product name	CCMT
Serviceable	Electric valve spare parts
Temperature range [°C] [max]	60 °C
Temperature range [°C] [min]	-40 °C
Temperature range [°F] [max]	140 °F
Temperature range [°F] [min]	-40 °F
UL approved refrigerants	R134a R744
UL mark	Yes

Ambient temperature range [°C] [max]	60 °C
Ambient temperature range [°C] [min]	-40 °C
Ambient temperature range [°F] [max]	140 °F
Ambient temperature range [°F] [min]	-40 °F
Approval	LLC CDC EURO-TYSK cURus
China RoHS compliance	Out of scope
Connection Solder size [in]	1 1/8 in
Connection standard	EN10220
Connection type	Solder, ODF
Connection Weld size [in]	1 in
Contains batteries	No
Cv value [gal/min]	2.784 gal/min
Diff.press.setting range [bar]	90 bar
Diff.press.setting range [psi]	1305 psi
EU RoHS compliance	Out of scope
Kv value [m³/h]	2.4 m³/h
Max. Working Pressure [bar]	140 bar
Max. Working Pressure [psig]	2030 psig
MaxOPD [bar]	90 bar
MaxOPD [psig]	1305 psig
Packing format	Single pack
Product accessories	Electric valve accessories
Product description	Electric Expansion Valve
Quantity per packing format	1 pc
REACH Candidate List substances	Lead (CAS no. 7439-92-1)
Refrigerants	R134a R410A R744
SCIP dossier no.	1b44dca2-c37c-46bc-ac76-7c2c62b348a3
SCIP dossier product name	CCMT
Serviceable	Electric valve spare parts
Temperature range [°C] [max]	60 °C
Temperature range [°C] [min]	-40 °C
Temperature range [°F] [max]	140 °F
Temperature range [°F] [min]	-40 °F
UL approved refrigerants	R134a R744
UL mark	Yes

DATASHEET - PDF

Title

Size

Type

027H7232 027H7232 ES_027H7200.pdf

1 Mbytes

PDF CATALOGUE DANFOSS REFRIGERATION AND AIRCONDITIONING EN

11 Mbytes
