027H6041
DANFOSS REFRIGERATION
1
Home > DANFOSS REFRIGERATION
* Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS REFRIGERATION
Thank you for your interest in our products; we hope the delivery time indicated is to your convenience.
While the order is being processed you can select the type of shipment that best suits your needs: 24-hour air express, standard 48-72 hour land, etc.
Gross weight | 18.86 Kg |
Net weight | 15.18 Kg |
EAN | 5702428483063 |
Actuator system | 2 EVM pilot sol valve module |
Body material | Steel |
Brand | ICV Flexline |
Category | II |
Connection material | Steel |
Connection standard | ASME B 36.10M SCHEDULE 40 |
Cv value [gal/min] | 95.12 gal/min |
Direction | Straightway |
Ext pilot pressure connection | Weld nipple (P2 Port) |
Flow direction indicator | Embossed 1-way arrow |
Fluid Group | I |
Further information | Coils not included |
Inlet connection size [in] | 2 1/2 in |
Inlet connection size [mm] | 65 mm |
Inlet connection type | Butt weld |
Kv value [m³/h] | 82 m3/h |
Manual operation option | Manual open spindle |
Max. Working Pressure [bar] | 52 bar |
Max. Working Pressure [psig] | 754 psig |
MaxOPD @delta p=1.5 bar [bar] | 21 bar |
MaxOPD @delta p=2.0 bar [bar] | 40 bar |
MaxOPD @delta p=22 psig [psig] | 305 psig |
MaxOPD @delta p=30 psig [psig] | 580 psig |
Opening configuration | 1-step (optional setting) 2-step (default) |
Outlet connection size [in] | 2 1/2 in |
Outlet connection size [mm] | 65 mm |
Outlet connection type | Butt weld |
Packing format | Single pack |
Parts Program name | ICLX |
Product accessories | ICM / ICS / ICLX accessories |
Product description | Solenoid Valve |
Product Group | Solenoid valves |

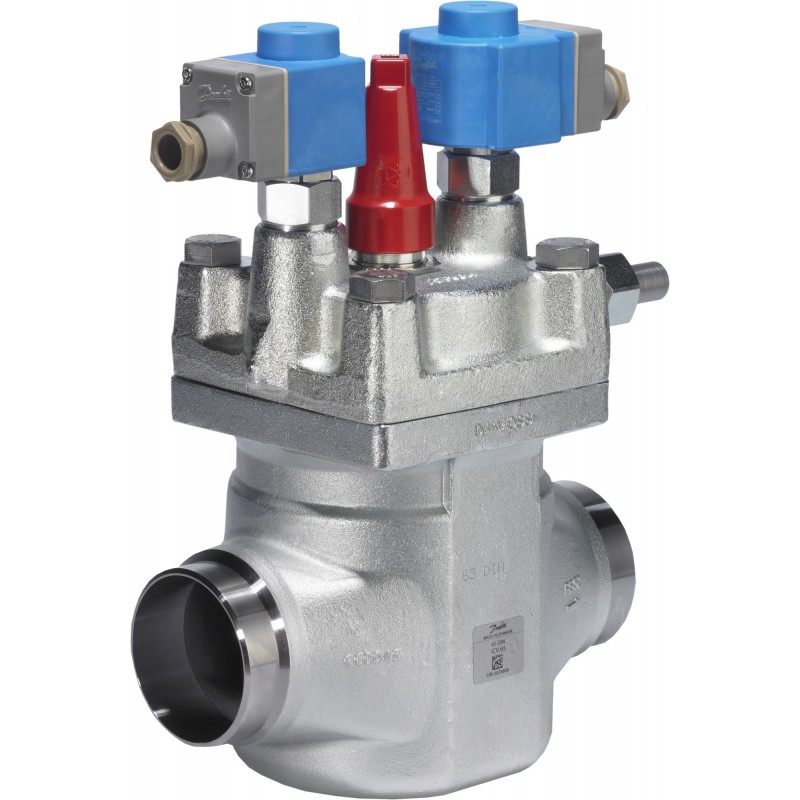

Product name | 2-step solenoid valve |
Product type | ICLX 65 |
Quantity per packing format | 1 pc |
Refrigerants | R134a R22 R401A R402A R404A R407A R407B R407C R407F R409A R410A R421A R502 R507 R717 R744 |
Serviceable | ICM / ICS / ICLX spare parts |
Step 1 opening degree (~) [%] | 10 % |
Step 2 initialization | Delta p < 1.25 bar (18 psig) |
Surface coating | Zn (TLP) |
Temperature range [°C] [Max] | 120 °C |
Temperature range [°C] [Min] | -60 °C |
Temperature range [°F] [Max] | 248 °F |
Temperature range [°F] [Min] | -76 °F |
Valve operation | Solenoid operated |
Valve version | Standard version |
