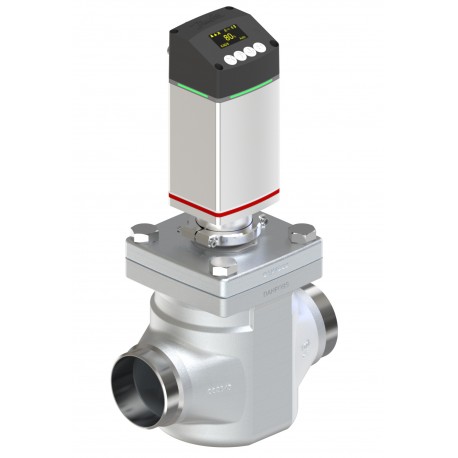

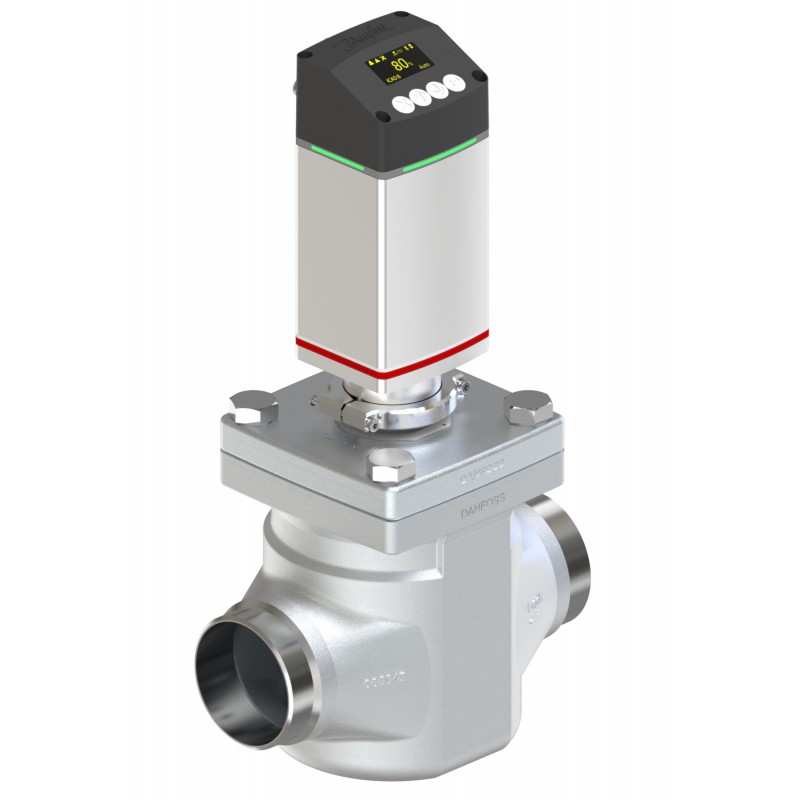

027H6005 DANFOSS REFRIGERATION Motor operated valve, ICM 65-B
027H6005
DANFOSS REFRIGERATION
Motor operated valve, ICM 65-B
ICM 65-B 2½ SOC (65 SOC)
Motor operated valve, ICM 65-B, Steel
Home > DANFOSS REFRIGERATION
* Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS REFRIGERATION
Best sellers
▲More info
▲Outlet connection size [mm]: 65.0, Inlet connection size [mm]: 65.0, Inlet connection type: Socket weld, Outlet connection type: Socket weld, Kv value [m³/h]: 70.000
Product details
| Gross weight | 16.357 Kg |
| Net weight | 14.986 Kg |
| Volume | 23.4 Liter |
| EAN | 5702428235549 |
| Gross weight | 16.357 Kg |
| Net weight | 14.986 Kg |
| Volume | 23.4 Liter |
| EAN | 5702428235549 |
| Actuator system | ICAD motor, magnet coupling |
| Approval | EAC LLC CDC TYSK TÜV UL |
| Body material | Steel |
| Brand | ICV Flexline |
| Connection material | Steel |
| Connection standard | ASME B 16.11 |
| Cv value [gal/min] | 81.2 gal/min |
| Direction | Straightway |
| Flow direction indicator | Embossed 1-way arrow |
| Fluid Group | 1 |
| In scope of WEEE and contain batteries | No |
| Inlet connection size [in] | 2 1/2 in |
| Inlet connection size [mm] | 65 mm |
| Inlet connection type | Socket weld |
| Kv value [m³/h] | 70 m³/h |
| Lubricants compatibility | Oilfree applications |
| Manual operation option | Via ICAD setting Via Multifunction tool |
| Max. Working Pressure [bar] | 65 bar |
| Max. Working Pressure [psig] | 943 psig |
| MaxOPD [bar] | 20 bar |
| MaxOPD [psig] | 271 psig |
| Oil free refrigerants | R1234ze(E) R134a |
| Open/close time [s] | 13 s |
| Outlet connection size [in] | 2 1/2 in |
| Outlet connection size [mm] | 65 mm |
| Outlet connection type | Socket weld |
| Packing format | Single pack |
| Parts Program name | ICM |
| PED category | II |
| Product accessories | ICAD accessories ICM / ICS / ICLX accessories |
| Product description | Motor operated valve |
| Product group | Press. and temp. regul. valves |
| Product Name Description | Motor operated valve |
| Quantity per packing format | 1 pc |
| REACH Candidate List substances | No |
| Refrigerants | R134a R22 R401A R402A R404A R407A R407B R407C R407F R409A R410A R421A R502 R717 R744 R1234ze(E) R507A |
| Serviceable | ICM / ICS / ICLX spare parts |
| Surface coating | Zn (TLP) |
| Temperature range [°C] [max] | 120 °C |
| Temperature range [°C] [min] | -60 °C |
| Temperature range [°F] [max] | 248 °F |
| Temperature range [°F] [min] | -76 °F |
| Top cover | Actuator |
| Type | ICM 65-B |
| UL approval file name | REFRIGERANT VALVE 53R0 |
| Valve operation | Motor operated |
| Valve version | Standard version |
| Actuator system | ICAD motor, magnet coupling |
| Approval | EAC LLC CDC TYSK TÜV UL |
| Body material | Steel |
| Brand | ICV Flexline |
| Connection material | Steel |
| Connection standard | ASME B 16.11 |
| Cv value [gal/min] | 81.2 gal/min |
| Direction | Straightway |
| Flow direction indicator | Embossed 1-way arrow |
| Fluid Group | 1 |
| In scope of WEEE and contain batteries | No |
| Inlet connection size [in] | 2 1/2 in |
| Inlet connection size [mm] | 65 mm |
| Inlet connection type | Socket weld |
| Kv value [m³/h] | 70 m³/h |
| Lubricants compatibility | Oilfree applications |
| Manual operation option | Via ICAD setting Via Multifunction tool |
| Max. Working Pressure [bar] | 65 bar |
| Max. Working Pressure [psig] | 943 psig |
| MaxOPD [bar] | 20 bar |
| MaxOPD [psig] | 271 psig |
| Oil free refrigerants | R1234ze(E) R134a |
| Open/close time [s] | 13 s |
| Outlet connection size [in] | 2 1/2 in |
| Outlet connection size [mm] | 65 mm |
| Outlet connection type | Socket weld |
| Packing format | Single pack |
| Parts Program name | ICM |
| PED category | II |
| Product accessories | ICAD accessories ICM / ICS / ICLX accessories |
| Product description | Motor operated valve |
| Product group | Press. and temp. regul. valves |
| Product Name Description | Motor operated valve |
| Quantity per packing format | 1 pc |
| REACH Candidate List substances | No |
| Refrigerants | R134a R22 R401A R402A R404A R407A R407B R407C R407F R409A R410A R421A R502 R717 R744 R1234ze(E) R507A |
| Serviceable | ICM / ICS / ICLX spare parts |
| Surface coating | Zn (TLP) |
| Temperature range [°C] [max] | 120 °C |
| Temperature range [°C] [min] | -60 °C |
| Temperature range [°F] [max] | 248 °F |
| Temperature range [°F] [min] | -76 °F |
| Top cover | Actuator |
| Type | ICM 65-B |
| UL approval file name | REFRIGERANT VALVE 53R0 |
| Valve operation | Motor operated |
| Valve version | Standard version |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| 027H6005 027H6005 DE_027H4002.pdf | 8 Mbytes |
 |
