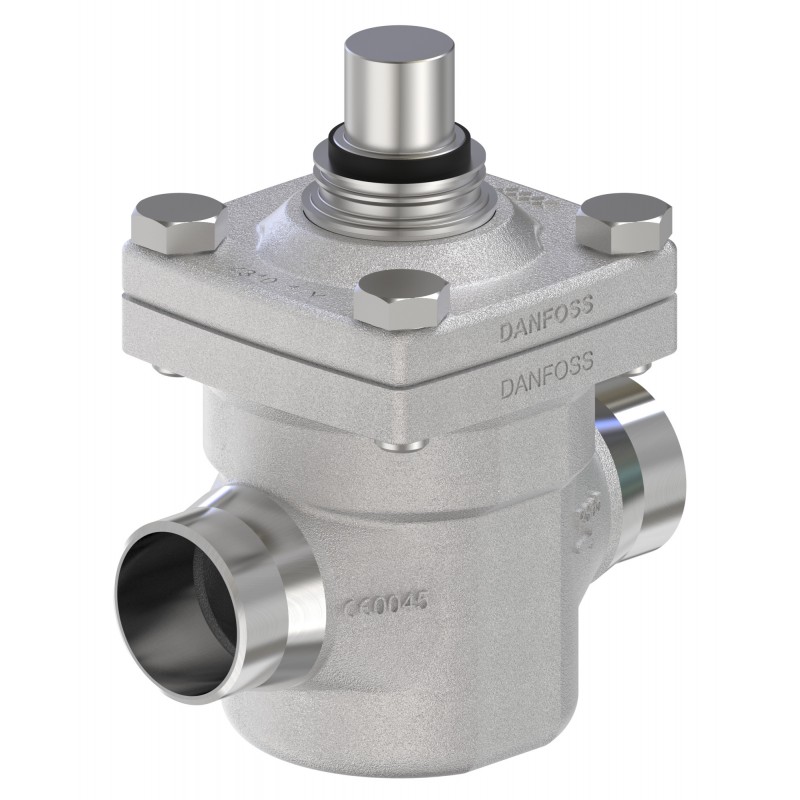

027H4009 DANFOSS REFRIGERATION Motor operated valve, ICM 40-B
027H4009
DANFOSS REFRIGERATION
Motor operated valve, ICM 40-B
ICM 40-B 42 SD
Motorized Valve, ICM 40-B, Steel
Home > DANFOSS REFRIGERATION
* Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS REFRIGERATION
Best sellers
▲More info
▲Type: SPARE PART, Type designation: Inspection kit
| Gross weight | 10 Kg |
| Net weight | 10 Kg |
| EAN | 5702428235853 |
| Actuator system | ICAD motor, magnet coupling |
| Body material | Steel |
| Brand | ICV Flexline |
| Category | II |
| Connection material | Steel |
| Connection standard | EN 1254-1 |
| Cv value [gal/min] | 30.16 gal/min |
| Direction | Straightway |
| Flow direction indicator | Embossed 1-way arrow |
| Fluid Group | I |
| Inlet connection size [mm] | 42 mm |
| Inlet connection type | Soldering |
| Kv value [m³/h] | 26 m3/h |
| Manual operation option | Via ICAD setting Via Multifunction tool |
| Max. Working Pressure [bar] | 52 bar |
| Max. Working Pressure [psig] | 754 psig |
| MaxOPD [bar] | 40 bar |
| MaxOPD [psig] | 542.5806 psig |
| Open/close time [s] | 10 " |
| Outlet connection size [mm] | 42 mm |
| Outlet connection type | Soldering |
| Packing format | Single pack |
| Parts Program name | ICM |
| Product accessories | ICAD accessories ICM / ICS / ICLX accessories |
| Product description | Motor operated valve |
| Product Group | Press. and temp. regul. valves |
| Product name | Motor operated valve |
| Product type | ICM 40-B |
| Quantity per packing format | 1 pc |
| Refrigerants | R1234ze R134a R22 R401A R402A R404A R407A R407B R407C R407F R409A R410A R421A R502 R507 R717 R744 |
| Serviceable | ICM / ICS / ICLX spare parts |
| Surface coating | Zn (TLP) |
| Temperature range [°C] [Max] | 120 °C |
| Temperature range [°C] [Min] | -60 °C |
| Temperature range [°F] [Max] | 248 °F |
| Temperature range [°F] [Min] | -76 °F |
| Top cover | Actuator |
| Valve operation | Motor operated |
| Valve version | Standard version |
