Images are for illustrative purposes only. Please refer to data sheet for details.

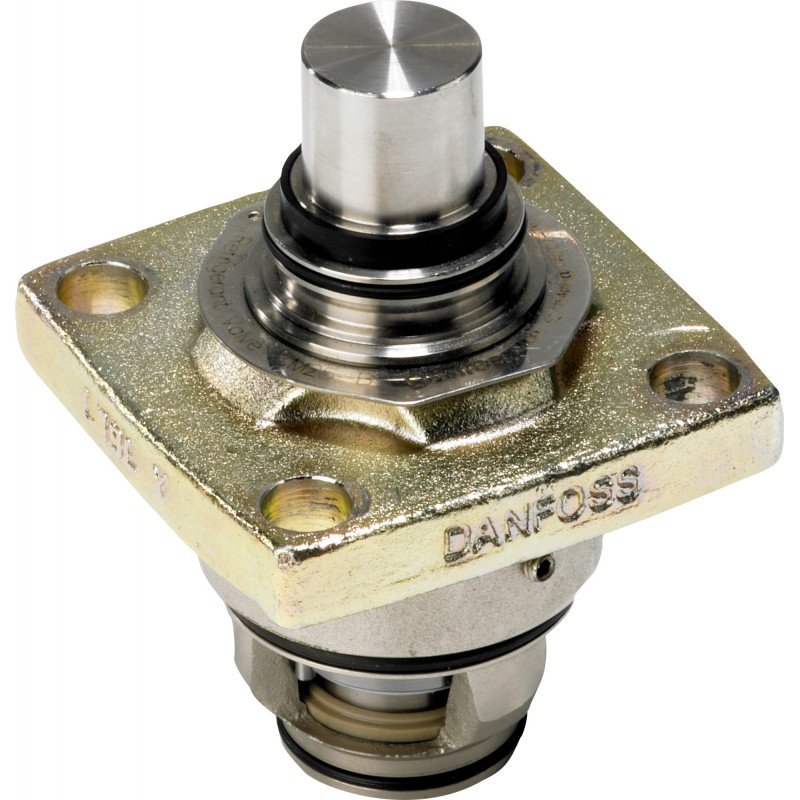

027H3170 DANFOSS REFRIGERATION Function module, ICM 32-A HT, Steel
Reference: 027H3170
Manufacturer: DANFOSS REFRIGERATION
Description:
Function module, ICM 32-A HT, Steel
Categories:
- DANFOSS REFRIGERATION
Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS REFRIGERATION
- More Info
- Reviews
MORE INFO
Product description: Function Module, Kv value [m³/h]: 9, Parts included: Seat/O-ring; Bolts/O-ring, Used for product: ICV 32
Product details
| Gross weight | 2.786 Kilogram |
| Net weight | 2.746 Kilogram |
| Volume | 3.686 Liter |
| EAN | 5702428453370 |
| Type | ICM 32-A HT |
| Product group | Press. and temp. regul. valves |
| Product Name Description | Function module |
| Gross weight | 2.786 Kilogram |
| Net weight | 2.746 Kilogram |
| Volume | 3.686 Liter |
| EAN | 5702428453370 |
| Type | ICM 32-A HT |
| Product group | Press. and temp. regul. valves |
| Product Name Description | Function module |
| Actuator system | ICAD motor, magnet coupling |
| Body material | Steel |
| Brand | ICV Flexline |
| China RoHS compliance | Yes |
| China RoHS exemption clause | No |
| Comments | - HT |
| Contains batteries | No |
| Cv value [gal/min] | 10.4 gal/min |
| EU RoHS compliance | Yes |
| EU RoHS exemption clause | No |
| Kv value [m³/h] | 9 m³/h |
| Manual operation option | Via ICAD setting Via Multifunction tool |
| Open/close time [s] | 8 s |
| Packing format | Single pack |
| Parts included | Bolts/O-ring Seat/O-ring |
| Parts Program name | ICM |
| Product accessories | ICAD accessories ICM / ICS / ICLX accessories |
| Product description | Function Module |
| Quantity per packing format | 1 pc |
| REACH Candidate List substances | No |
| Refrigerants | R717 R170 R290 R600 R600a R601 R601a |
| Serviceable | ICM / ICS / ICLX spare parts |
| Used for product | ICV 32 |
| Used for product comments | With top assembly |
| Valve operation | Motor operated |
| Actuator system | ICAD motor, magnet coupling |
| Body material | Steel |
| Brand | ICV Flexline |
| China RoHS compliance | Yes |
| China RoHS exemption clause | No |
| Comments | - HT |
| Contains batteries | No |
| Cv value [gal/min] | 10.4 gal/min |
| EU RoHS compliance | Yes |
| EU RoHS exemption clause | No |
| Kv value [m³/h] | 9 m³/h |
| Manual operation option | Via ICAD setting Via Multifunction tool |
| Open/close time [s] | 8 s |
| Packing format | Single pack |
| Parts included | Bolts/O-ring Seat/O-ring |
| Parts Program name | ICM |
| Product accessories | ICAD accessories ICM / ICS / ICLX accessories |
| Product description | Function Module |
| Quantity per packing format | 1 pc |
| REACH Candidate List substances | No |
| Refrigerants | R717 R170 R290 R600 R600a R601 R601a |
| Serviceable | ICM / ICS / ICLX spare parts |
| Used for product | ICV 32 |
| Used for product comments | With top assembly |
| Valve operation | Motor operated |
DATASHEET - PDF
