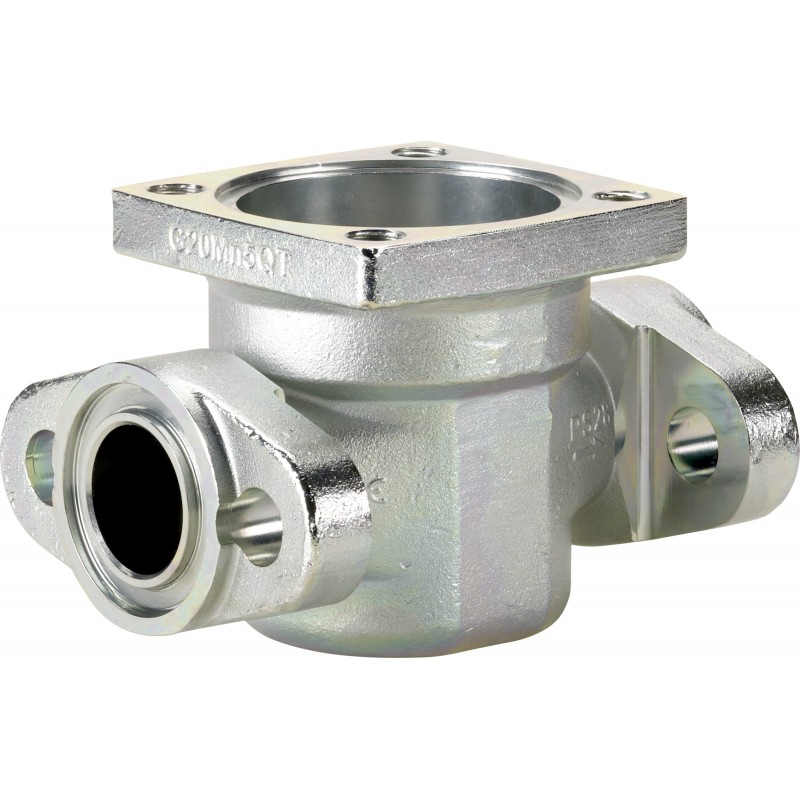

027H3130 DANFOSS REFRIGERATION Multifunction valve body
027H3130
DANFOSS REFRIGERATION
Multifunction valve body
ICV 32 A4A Valve housing
Multifunction valve body, ICV 32 A4A, Flange
Home > DANFOSS REFRIGERATION
Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS REFRIGERATION
Best sellers
▲More info
▲Connection type: Flange, Connection material: Steel, Max. Working Pressure [bar]: 52, Temperature range [°C]: -60 - 120, Used for product: ICM 32; ICLX 32; ICS 32
Product details
| Gross weight | 8.038 Kilogram |
| Net weight | 4.951 Kilogram |
| Volume | 8.68 Liter |
| EAN | 5702428898768 |
| Type | ICV 32 A4A |
| Product group | Multifunction valves |
| Product Name Description | Multifunction valve body |
| Gross weight | 8.038 Kilogram |
| Net weight | 4.951 Kilogram |
| Volume | 8.68 Liter |
| EAN | 5702428898768 |
| Type | ICV 32 A4A |
| Product group | Multifunction valves |
| Product Name Description | Multifunction valve body |
| Approval | EAC |
| Body material | Steel |
| Brand | ICV Flexline |
| China RoHS compliance | Yes |
| China RoHS exemption clause | No |
| Connection material | Steel |
| Connection standard | CUST. SPEC. |
| Connection type | Flange |
| Contains batteries | No |
| EU RoHS compliance | Yes |
| EU RoHS exemption clause | No |
| Flow direction indicator | Embossed 1-way arrow |
| Further information | PM retrofit, A4A flanges |
| Max. Working Pressure [bar] | 52 bar |
| Max. Working Pressure [psig] | 754 psig |
| Packing format | Single pack |
| Parts Program name | ICLX ICM ICS |
| Product accessories | ICM / ICS / ICLX accessories |
| Quantity per packing format | 1 pc |
| REACH Candidate List substances | No |
| Refrigerants | R113 R114 R1233zd(E) R1234yf R1234ze(E) R125 R1270 R1336mzz(Z) R134a R152a R170 R22 R227ea R23 R236fa R290 R32 R401A R402A R402B R404A R407A R407B R407C R407F R407H R408A R409A R410A R417A R421A R422A R422B R422D R427A R438A R444B R447A R448A R449A R449B R450A R452A R454B R455A R502 R503 R513A R600 R600a R717 R744 RE170 R507A R1150 R245fa R413A R442A R447B R452B R454A R454C R463A R512A R513B R515A R515B R516A R508B |
| Serviceable | ICM / ICS / ICLX spare parts |
| Temperature range [°C] [max] | 120 °C |
| Temperature range [°C] [min] | -60 °C |
| Temperature range [°F] [max] | 248 °F |
| Temperature range [°F] [min] | -76 °F |
| Used for product | ICLX 32 ICM 32 ICS 32 |
| Valve operation | Function module |
| Approval | EAC |
| Body material | Steel |
| Brand | ICV Flexline |
| China RoHS compliance | Yes |
| China RoHS exemption clause | No |
| Connection material | Steel |
| Connection standard | CUST. SPEC. |
| Connection type | Flange |
| Contains batteries | No |
| EU RoHS compliance | Yes |
| EU RoHS exemption clause | No |
| Flow direction indicator | Embossed 1-way arrow |
| Further information | PM retrofit, A4A flanges |
| Max. Working Pressure [bar] | 52 bar |
| Max. Working Pressure [psig] | 754 psig |
| Packing format | Single pack |
| Parts Program name | ICLX ICM ICS |
| Product accessories | ICM / ICS / ICLX accessories |
| Quantity per packing format | 1 pc |
| REACH Candidate List substances | No |
| Refrigerants | R113 R114 R1233zd(E) R1234yf R1234ze(E) R125 R1270 R1336mzz(Z) R134a R152a R170 R22 R227ea R23 R236fa R290 R32 R401A R402A R402B R404A R407A R407B R407C R407F R407H R408A R409A R410A R417A R421A R422A R422B R422D R427A R438A R444B R447A R448A R449A R449B R450A R452A R454B R455A R502 R503 R513A R600 R600a R717 R744 RE170 R507A R1150 R245fa R413A R442A R447B R452B R454A R454C R463A R512A R513B R515A R515B R516A R508B |
| Serviceable | ICM / ICS / ICLX spare parts |
| Temperature range [°C] [max] | 120 °C |
| Temperature range [°C] [min] | -60 °C |
| Temperature range [°F] [max] | 248 °F |
| Temperature range [°F] [min] | -76 °F |
| Used for product | ICLX 32 ICM 32 ICS 32 |
| Valve operation | Function module |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE DANFOSS REFRIGERATION AND AIRCONDITIONING EN.pdf | 11 Mbytes |
|
| 027H3130 027H3130 DE_027H4002.pdf | 5 Mbytes |
|
