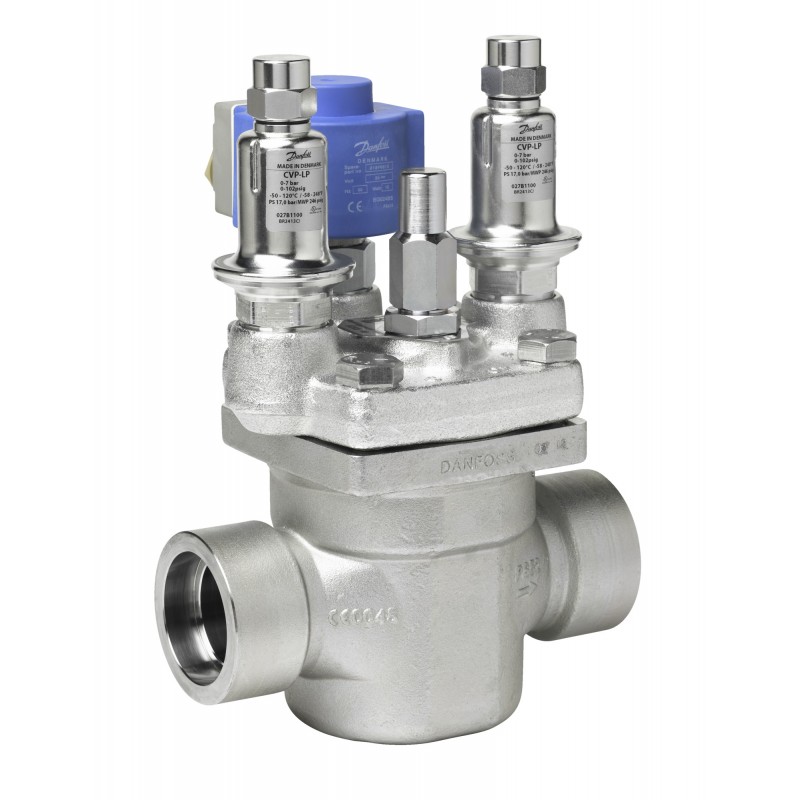

027H2147 DANFOSS REFRIGERATION Pilot operated servo valve, ICS3 25-15, 20 mm, Socket Weld
027H2147
DANFOSS REFRIGERATION
Pilot operated servo valve, ICS3 25-15, 20 mm, Socket Weld
Home > DANFOSS REFRIGERATION
Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS REFRIGERATION
Best sellers
▲More info
▲Inlet connection type: Socket Weld, Connection standard: ASME B 16.11, Inlet connection size [mm]: 20, Kv value [m³/h]: 6, Connection material: Steel
Product details
| Gross weight | 4.66 Kilogram |
| Net weight | 4.22 Kilogram |
| Volume | 7.371 Liter |
| EAN | 5702428236157 |
| Type | ICS3 25-15 |
| Product group | Press. and temp. regul. valves |
| Product Name Description | Pilot operated servo valve |
| Gross weight | 4.66 Kilogram |
| Net weight | 4.22 Kilogram |
| Volume | 7.371 Liter |
| EAN | 5702428236157 |
| Type | ICS3 25-15 |
| Product group | Press. and temp. regul. valves |
| Product Name Description | Pilot operated servo valve |
| Approval | EAC LLC CDC EURO-TYSK UL |
| Body material | Steel |
| Brand | ICV Flexline |
| China RoHS compliance | Yes |
| China RoHS exemption clause | No |
| Connection material | Steel |
| Connection standard | ASME B 16.11 |
| Contains batteries | No |
| Cv value [gal/min] | 7 gal/min |
| Direction | Straightway |
| EU RoHS compliance | Yes |
| EU RoHS exemption clause | No |
| Ext pilot pressure connection | Weld nipple (P2 Port) |
| Flow direction indicator | Embossed 1-way arrow |
| Fluid Group | 1 |
| Inlet connection size [in] | 3/4 in |
| Inlet connection size [mm] | 20 mm |
| Inlet connection type | Socket Weld |
| Kv value [m³/h] | 6 m³/h |
| Manual operation option | Manual open spindle |
| Max. Working Pressure [bar] | 65 bar |
| Max. Working Pressure [psig] | 943 psig |
| Opening configuration | Closed (delta p=0 bar) Full open (delta p≥0.2 bar) PropOpen (delta p=0.07-0.2bar) |
| Outlet connection size [in] | 3/4 in |
| Outlet connection size [mm] | 20 mm |
| Outlet connection type | Socket weld |
| Packing format | Single pack |
| Parts Program name | ICS |
| PED category | Art. 3, par. 3 |
| Pilot connection configuration | P: Parallel connection SI-SII: Serial connection |
| Pressure gauge connection | Int. thread with blind plug |
| Product accessories | ICM / ICS / ICLX accessories |
| Product description | Servo operated valve |
| Quantity per packing format | 1 pc |
| REACH Candidate List substances | No |
| Refrigerants | R134a R22 R401A R402A R404A R407A R407B R407C R407F R409A R410A R421A R502 R717 R744 R1234ze(E) R507A |
| Serviceable | ICM / ICS / ICLX spare parts |
| Surface coating | Zn (TLP) |
| Temperature range [°C] [max] | 120 °C |
| Temperature range [°C] [min] | -60 °C |
| Temperature range [°F] [max] | 248 °F |
| Temperature range [°F] [min] | -76 °F |
| Top cover | 3 function modules |
| UL approval file name | REFRIGERANT VALVE 53R0 |
| UL mark | Yes |
| Valve operation | Pilot operated |
| Valve version | Standard version |
| Approval | EAC LLC CDC EURO-TYSK UL |
| Body material | Steel |
| Brand | ICV Flexline |
| China RoHS compliance | Yes |
| China RoHS exemption clause | No |
| Connection material | Steel |
| Connection standard | ASME B 16.11 |
| Contains batteries | No |
| Cv value [gal/min] | 7 gal/min |
| Direction | Straightway |
| EU RoHS compliance | Yes |
| EU RoHS exemption clause | No |
| Ext pilot pressure connection | Weld nipple (P2 Port) |
| Flow direction indicator | Embossed 1-way arrow |
| Fluid Group | 1 |
| Inlet connection size [in] | 3/4 in |
| Inlet connection size [mm] | 20 mm |
| Inlet connection type | Socket Weld |
| Kv value [m³/h] | 6 m³/h |
| Manual operation option | Manual open spindle |
| Max. Working Pressure [bar] | 65 bar |
| Max. Working Pressure [psig] | 943 psig |
| Opening configuration | Closed (delta p=0 bar) Full open (delta p≥0.2 bar) PropOpen (delta p=0.07-0.2bar) |
| Outlet connection size [in] | 3/4 in |
| Outlet connection size [mm] | 20 mm |
| Outlet connection type | Socket weld |
| Packing format | Single pack |
| Parts Program name | ICS |
| PED category | Art. 3, par. 3 |
| Pilot connection configuration | P: Parallel connection SI-SII: Serial connection |
| Pressure gauge connection | Int. thread with blind plug |
| Product accessories | ICM / ICS / ICLX accessories |
| Product description | Servo operated valve |
| Quantity per packing format | 1 pc |
| REACH Candidate List substances | No |
| Refrigerants | R134a R22 R401A R402A R404A R407A R407B R407C R407F R409A R410A R421A R502 R717 R744 R1234ze(E) R507A |
| Serviceable | ICM / ICS / ICLX spare parts |
| Surface coating | Zn (TLP) |
| Temperature range [°C] [max] | 120 °C |
| Temperature range [°C] [min] | -60 °C |
| Temperature range [°F] [max] | 248 °F |
| Temperature range [°F] [min] | -76 °F |
| Top cover | 3 function modules |
| UL approval file name | REFRIGERANT VALVE 53R0 |
| UL mark | Yes |
| Valve operation | Pilot operated |
| Valve version | Standard version |
