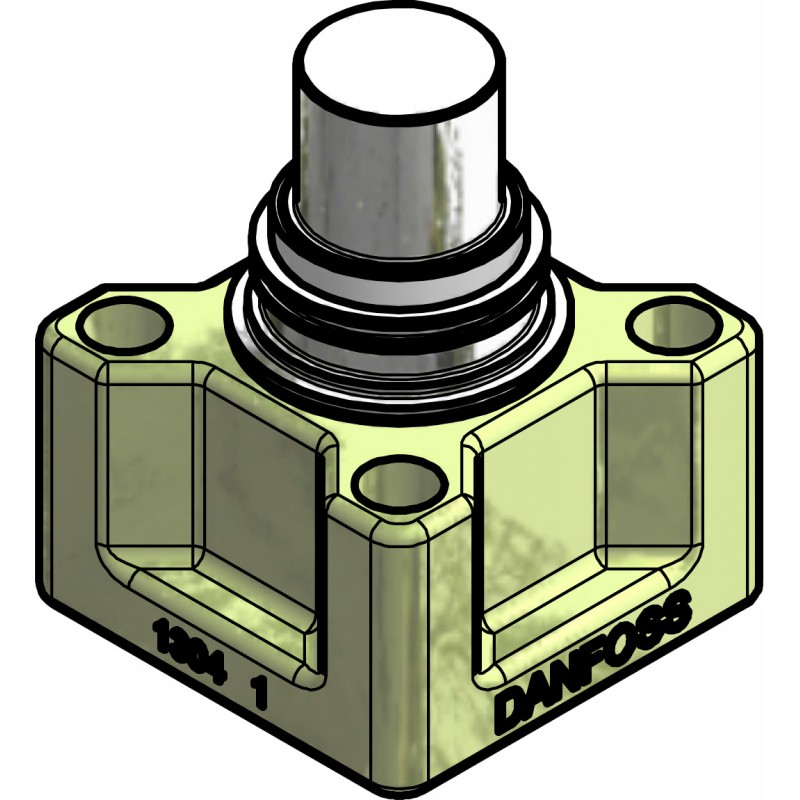

027H1176 DANFOSS REFRIGERATION Function module
027H1176
DANFOSS REFRIGERATION
Function module
ICM 20 A Top assembly, KALREZ
Function module, ICM 20-A HT, Steel
Home > DANFOSS REFRIGERATION
* Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS REFRIGERATION
Best sellers
▲More info
▲Used for product: ICV 20, Kv value [m³/h]: 0.600
Product details
| Gross weight | 1.392 Kg |
| Net weight | 1.318 Kg |
| Volume | 3.364 Liter |
| EAN | 5702428453431 |
| Gross weight | 1.392 Kg |
| Net weight | 1.318 Kg |
| Volume | 3.364 Liter |
| EAN | 5702428453431 |
| Actuator system | ICAD motor, magnet coupling |
| Body material | Steel |
| Brand | ICV Flexline |
| Comments | - HT |
| Cv value [gal/min] | 0.7 gal/min |
| In scope of WEEE and contain batteries | No |
| Kv value [m³/h] | 0.6 m³/h |
| Manual operation option | Via ICAD setting Via Multifunction tool |
| Open/close time [s] | 3 s |
| Packing format | Single pack |
| Parts included | Bolts/O-ring Seat/O-ring |
| Parts Program name | ICM |
| Product accessories | ICAD accessories ICM / ICS / ICLX accessories |
| Product description | Function Module |
| Product group | Press. and temp. regul. valves |
| Product Name Description | Function module |
| Quantity per packing format | 1 pc |
| REACH Candidate List substances | No |
| Refrigerants | R717 |
| Serviceable | ICM / ICS / ICLX spare parts |
| Type | ICM 20-A HT |
| Used for product | ICV 20 |
| Used for product comments | With top assembly |
| Valve operation | Motor operated |
| Actuator system | ICAD motor, magnet coupling |
| Body material | Steel |
| Brand | ICV Flexline |
| Comments | - HT |
| Cv value [gal/min] | 0.7 gal/min |
| In scope of WEEE and contain batteries | No |
| Kv value [m³/h] | 0.6 m³/h |
| Manual operation option | Via ICAD setting Via Multifunction tool |
| Open/close time [s] | 3 s |
| Packing format | Single pack |
| Parts included | Bolts/O-ring Seat/O-ring |
| Parts Program name | ICM |
| Product accessories | ICAD accessories ICM / ICS / ICLX accessories |
| Product description | Function Module |
| Product group | Press. and temp. regul. valves |
| Product Name Description | Function module |
| Quantity per packing format | 1 pc |
| REACH Candidate List substances | No |
| Refrigerants | R717 |
| Serviceable | ICM / ICS / ICLX spare parts |
| Type | ICM 20-A HT |
| Used for product | ICV 20 |
| Used for product comments | With top assembly |
| Valve operation | Motor operated |
