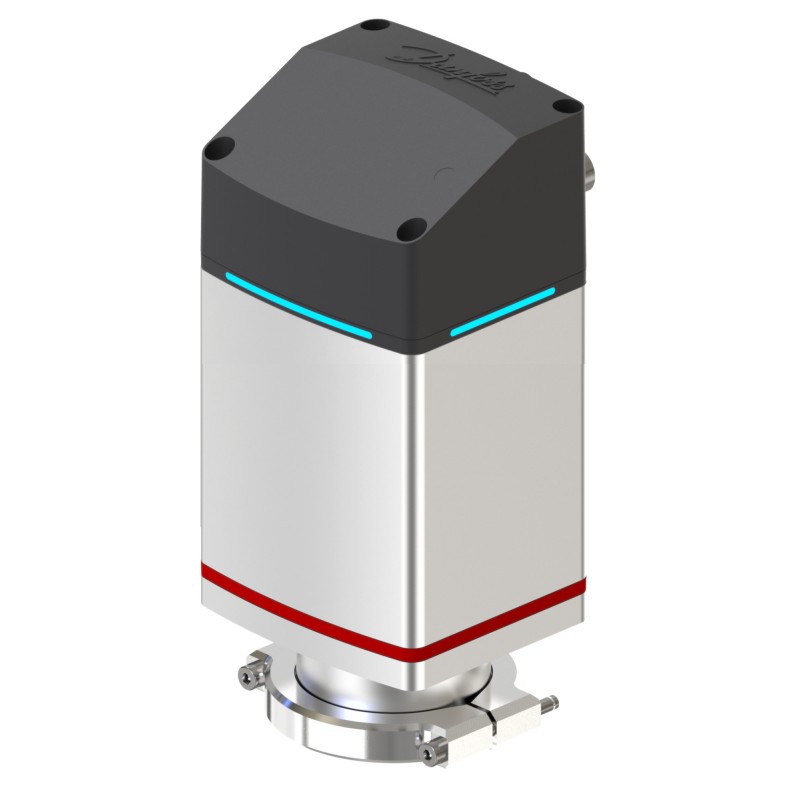

027H0499 DANFOSS REFRIGERATION ICAD 600BTS no display Bluetooth Ethernet
027H0499
DANFOSS REFRIGERATION
ICAD 600BTS no display Bluetooth Ethernet
Actuator, ICAD 600BTS
Home > DANFOSS REFRIGERATION
Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS REFRIGERATION
Best sellers
▲More info
▲Product Type: ICAD 600BTS, Used for product: ICMTS20B; ICMTS20B66; ICMTS80A; ICMTS20A; ICMTS20C; ICMTS20A33; ICMTS50A; ICMTS80B, Communication type: Bluetooth; Ethernet
Product details
| Gross weight | 2.105 Kilogram |
| Net weight | 1.725 Kilogram |
| Volume | 7.27 Liter |
| EAN | 5715162513804 |
| Type | ICAD 600BTS |
| Product group | Press. and temp. regul. valves |
| Product Name Description | Actuator |
| Gross weight | 2.105 Kilogram |
| Net weight | 1.725 Kilogram |
| Volume | 7.27 Liter |
| EAN | 5715162513804 |
| Type | ICAD 600BTS |
| Product group | Press. and temp. regul. valves |
| Product Name Description | Actuator |
| Ambient temperature range [°C] [max] | 50 °C |
| Ambient temperature range [°C] [min] | -30 °C |
| Ambient temperature range [°F] [max] | 122 °F |
| Ambient temperature range [°F] [min] | -22 °F |
| Analog input current opt. [mA] [max] | 20 mA |
| Analog input current opt. [mA] [min] | 4 mA |
| Analog input Volt opt. [V] d.c [max] | 10 V |
| Analog input Volt opt. [V] d.c [min] | 2 V |
| Analog output options [mA] [max] | 20 mA |
| Analog output options [mA] [min] | 4 mA |
| Approval | CE FCC UL |
| Approval document | FCC ID: Y82-DA14531MOD IC: 9576A-DA14531MOD CMIIT ID: 24J99ET9A002 |
| CE mark | Yes |
| China RoHS compliance | Yes with exemptions |
| China RoHS exemption clause | 7.1 7.2 |
| Communication type | Bluetooth Ethernet |
| Contains batteries | No |
| Dig. Output-Ext supply [V] d.c [max] | 24 V |
| Dig. Output-Ext supply [V] d.c [min] | 5 V |
| Digital Output-Load [Ohm] | 60 Ohm |
| Digital Output-Max Load [mA] | 50 mA |
| Digital outputs (DO) [pc] | 3 pc |
| Electrical connector | M12 |
| Enclosure rating IP | IP67 |
| Enclosure rating Nema (~) | 6 |
| EU RoHS compliance | Yes with exemptions |
| EU RoHS exemption clause | 6(a) 6(b) |
| Function | Digital output |
| Load Analog input Voltage[Ohm] | 10000 Ohm |
| Load Analog output max [Ohm] | 500 Ohm |
| Output configuration | Open drain |
| Packing format | Single pack |
| Parts Program name | ICM |
| Power supply | Class 2 |
| Product accessories | ICAD accessories |
| Product description | Electric Actuator |
| Product version | 01 |
| Quantity per packing format | 1 pc |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| SCIP dossier no. | aaf4df04-232e-4c2f-a798-03522fc35abf |
| SCIP dossier product name | ICAD |
| Supply voltage [V] DC | 24 V |
| Supply voltage load [A] | 1.2 A |
| Supply voltage tolerance [%] [max] | 10 % |
| Supply voltage tolerance [%] [min] | -15 % |
| Temperature range [°C] [max] | 120 °C |
| Temperature range [°C] [min] | -60 °C |
| Temperature range [°F] [max] | 248 °F |
| Temperature range [°F] [min] | -76 °F |
| UL mark | Yes |
| Used for product | ICMTS20A ICMTS20A33 ICMTS20B ICMTS20B66 ICMTS20C ICMTS50A ICMTS80A ICMTS80B |
| Ambient temperature range [°C] [max] | 50 °C |
| Ambient temperature range [°C] [min] | -30 °C |
| Ambient temperature range [°F] [max] | 122 °F |
| Ambient temperature range [°F] [min] | -22 °F |
| Analog input current opt. [mA] [max] | 20 mA |
| Analog input current opt. [mA] [min] | 4 mA |
| Analog input Volt opt. [V] d.c [max] | 10 V |
| Analog input Volt opt. [V] d.c [min] | 2 V |
| Analog output options [mA] [max] | 20 mA |
| Analog output options [mA] [min] | 4 mA |
| Approval | CE FCC UL |
| Approval document | FCC ID: Y82-DA14531MOD IC: 9576A-DA14531MOD CMIIT ID: 24J99ET9A002 |
| CE mark | Yes |
| China RoHS compliance | Yes with exemptions |
| China RoHS exemption clause | 7.1 7.2 |
| Communication type | Bluetooth Ethernet |
| Contains batteries | No |
| Dig. Output-Ext supply [V] d.c [max] | 24 V |
| Dig. Output-Ext supply [V] d.c [min] | 5 V |
| Digital Output-Load [Ohm] | 60 Ohm |
| Digital Output-Max Load [mA] | 50 mA |
| Digital outputs (DO) [pc] | 3 pc |
| Electrical connector | M12 |
| Enclosure rating IP | IP67 |
| Enclosure rating Nema (~) | 6 |
| EU RoHS compliance | Yes with exemptions |
| EU RoHS exemption clause | 6(a) 6(b) |
| Function | Digital output |
| Load Analog input Voltage[Ohm] | 10000 Ohm |
| Load Analog output max [Ohm] | 500 Ohm |
| Output configuration | Open drain |
| Packing format | Single pack |
| Parts Program name | ICM |
| Power supply | Class 2 |
| Product accessories | ICAD accessories |
| Product description | Electric Actuator |
| Product version | 01 |
| Quantity per packing format | 1 pc |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| SCIP dossier no. | aaf4df04-232e-4c2f-a798-03522fc35abf |
| SCIP dossier product name | ICAD |
| Supply voltage [V] DC | 24 V |
| Supply voltage load [A] | 1.2 A |
| Supply voltage tolerance [%] [max] | 10 % |
| Supply voltage tolerance [%] [min] | -15 % |
| Temperature range [°C] [max] | 120 °C |
| Temperature range [°C] [min] | -60 °C |
| Temperature range [°F] [max] | 248 °F |
| Temperature range [°F] [min] | -76 °F |
| UL mark | Yes |
| Used for product | ICMTS20A ICMTS20A33 ICMTS20B ICMTS20B66 ICMTS20C ICMTS50A ICMTS80A ICMTS80B |
