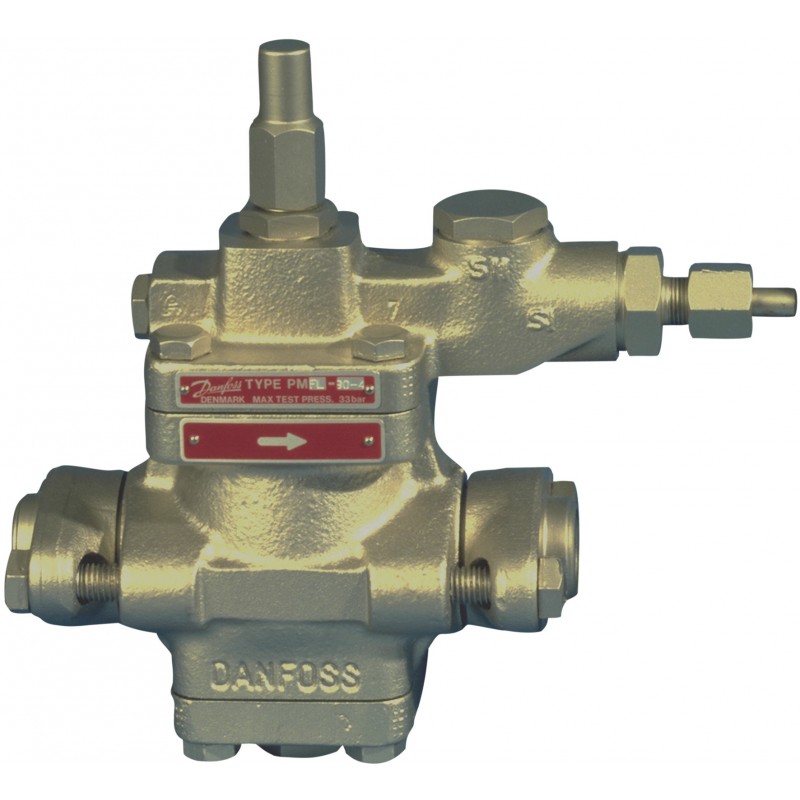

027F3074 DANFOSS REFRIGERATION Liquid level regulating valve, PMFH 500
027F3074
DANFOSS REFRIGERATION
Liquid level regulating valve, PMFH 500
Home > DANFOSS REFRIGERATION
Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS REFRIGERATION
Best sellers
▲More info
▲Inlet connection size [mm]: 50, Max. Working Pressure [bar]: 28, Temperature range [°C]: -60 - 120
Product details
| Gross weight | 25.707 Kilogram |
| Net weight | 25.707 Kilogram |
| Volume | 18.687 Liter |
| EAN | 5702422171140 |
| Type | PMFH 500 |
| Product group | Liquid level regulating valves |
| Product Name Description | Liquid level regulating valve |
| Gross weight | 25.707 Kilogram |
| Net weight | 25.707 Kilogram |
| Volume | 18.687 Liter |
| EAN | 5702422171140 |
| Type | PMFH 500 |
| Product group | Liquid level regulating valves |
| Product Name Description | Liquid level regulating valve |
| Approval | CE EAC LLC CDC TYSK UL |
| Approval file name | REFRIGERANT VALVE 53R0 |
| CE mark | Yes |
| China RoHS compliance | Out of scope |
| Colour Paint | Cr3 / TLP |
| Contains batteries | No |
| EU RoHS compliance | Out of scope |
| Fluid Group | 1 |
| Inlet connection size [mm] | 50 mm |
| Max. Working Pressure [bar] | 28 bar |
| Max. Working Pressure [psig] | 406 psig |
| Packing format | Single pack |
| Parts included | Blanking plug Flange bolts Flange gaskets Pilot connector |
| PED category | II |
| Quantity per packing format | 1 pc |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| Refrigerants | R134a R22 R404A R407A R407B R407C R407F R410A R502 R717 R401A R402A R409A R421A R507A |
| SCIP dossier no. | b9a4d397-4040-40d8-bf76-2fbd22ec1ba4 |
| Temperature range [°C] [max] | 120 °C |
| Temperature range [°C] [min] | -60 °C |
| Temperature range [°F] [max] | 248 °F |
| Temperature range [°F] [min] | -76 °F |
| UL approval file name | REFRIGERANT VALVE 53R0 |
| UL mark | Yes |
| Approval | CE EAC LLC CDC TYSK UL |
| Approval file name | REFRIGERANT VALVE 53R0 |
| CE mark | Yes |
| China RoHS compliance | Out of scope |
| Colour Paint | Cr3 / TLP |
| Contains batteries | No |
| EU RoHS compliance | Out of scope |
| Fluid Group | 1 |
| Inlet connection size [mm] | 50 mm |
| Max. Working Pressure [bar] | 28 bar |
| Max. Working Pressure [psig] | 406 psig |
| Packing format | Single pack |
| Parts included | Blanking plug Flange bolts Flange gaskets Pilot connector |
| PED category | II |
| Quantity per packing format | 1 pc |
| REACH Candidate List substances | Lead (CAS no. 7439-92-1) |
| Refrigerants | R134a R22 R404A R407A R407B R407C R407F R410A R502 R717 R401A R402A R409A R421A R507A |
| SCIP dossier no. | b9a4d397-4040-40d8-bf76-2fbd22ec1ba4 |
| Temperature range [°C] [max] | 120 °C |
| Temperature range [°C] [min] | -60 °C |
| Temperature range [°F] [max] | 248 °F |
| Temperature range [°F] [min] | -76 °F |
| UL approval file name | REFRIGERANT VALVE 53R0 |
| UL mark | Yes |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE DANFOSS REFRIGERATION AND AIRCONDITIONING EN.pdf | 11 Mbytes |
|
| 027F3074 027F3074 ES_027F2134.pdf | 4 Mbytes |
|
