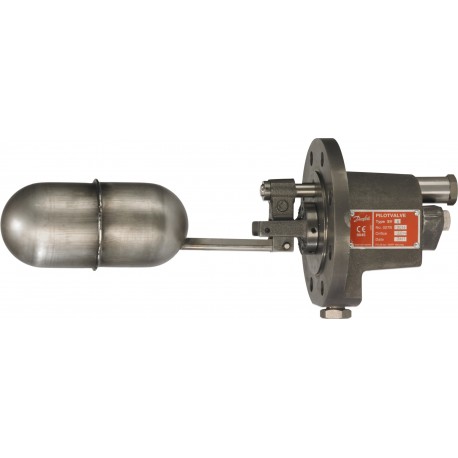

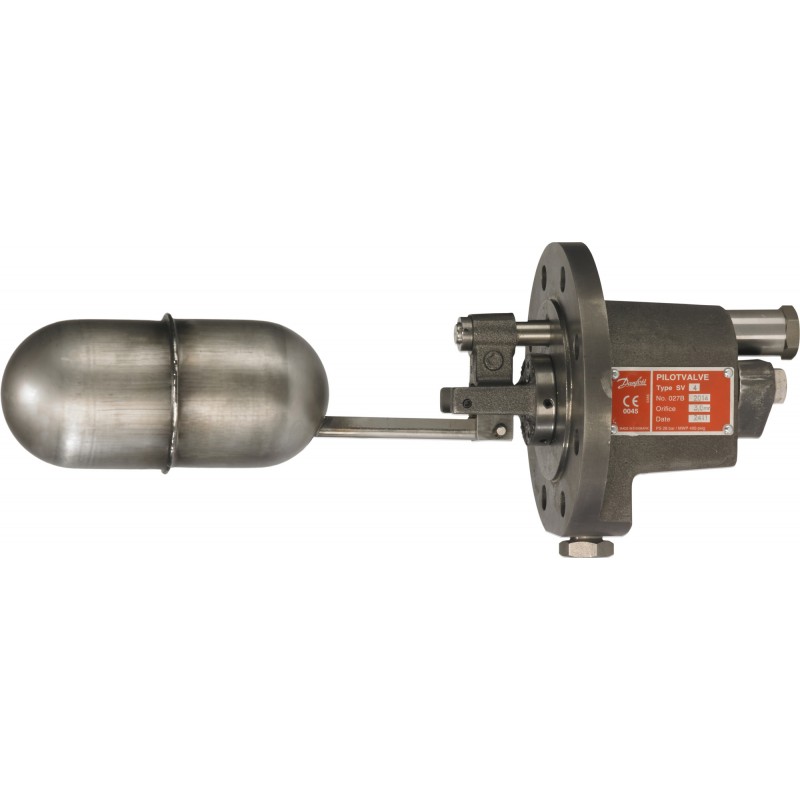

027B2014 DANFOSS REFRIGERATION Float valve
027B2014
DANFOSS REFRIGERATION
Float valve
SV 4 Float Valve w/o tank
Spare parts
Home > DANFOSS REFRIGERATION
Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS REFRIGERATION
Best sellers
▲More info
▲Product description: Float Valve, Used for product: SV 4
Product details
| Gross weight | 10.6 Kilogram |
| Net weight | 10.114 Kilogram |
| Volume | 21.778 Liter |
| EAN | 5702422161530 |
| Type | Spare parts |
| Product group | Float exp. valve spare parts |
| Product Name Description | Float valve |
| Gross weight | 10.6 Kilogram |
| Net weight | 10.114 Kilogram |
| Volume | 21.778 Liter |
| EAN | 5702422161530 |
| Type | Spare parts |
| Product group | Float exp. valve spare parts |
| Product Name Description | Float valve |
| Approval | CE EAC LLC CDC TYSK |
| Balance pipe Weld conn. size | 1 in |
| CE mark | Yes |
| China RoHS compliance | Yes |
| China RoHS exemption clause | No |
| Contains batteries | No |
| Cv value [gal/min] | 0.27 gal/min |
| Differential pressure max[bar] | 23 bar |
| Differential pressure max[psi] | 334 psi |
| EU RoHS compliance | Yes |
| EU RoHS exemption clause | No |
| Fluid Group | 1 2 |
| Kv value [m³/h] | 0.23 m³/h |
| Max. Working Pressure [bar] | 28 bar |
| Max. Working Pressure [psig] | 406 psig |
| Packing format | Single pack |
| PED category | II |
| Pilot line connection type | Welding |
| Product description | Float Valve |
| Quantity per packing format | 1 pc |
| Rated cap. conditions [IMP] | +41 °F/+89,6 °F, sub. Cooling |
| Rated cap. conditions [SI] | +5 °C/+32 °C, sub. Cooling 4 K |
| Rated cap. R404A/R507A [kW] | 15.4 kW |
| Rated cap. R404A/R507A [TR] | 4.38 TR |
| Rated capacity R134a [kW] | 16.4 kW |
| Rated capacity R134a [TR] | 4.66 TR |
| Rated capacity R22 [kW] | 21 kW |
| Rated capacity R22 [TR] | 5.97 TR |
| Rated capacity R717 [kW] | 102 kW |
| Rated capacity R717 [TR] | 29 TR |
| REACH Candidate List substances | No |
| Refrigerants | R134a R22 R401A R402A R404A R407A R407B R407C R407F R409A R410A R421A R502 R717 R507A |
| Temperature range [°C] [max] | 120 °C |
| Temperature range [°C] [min] | -50 °C |
| Temperature range [°F] [max] | 302 °F |
| Temperature range [°F] [min] | -58 °F |
| UL mark | Yes |
| Used for product | SV 4 |
| Approval | CE EAC LLC CDC TYSK |
| Balance pipe Weld conn. size | 1 in |
| CE mark | Yes |
| China RoHS compliance | Yes |
| China RoHS exemption clause | No |
| Contains batteries | No |
| Cv value [gal/min] | 0.27 gal/min |
| Differential pressure max[bar] | 23 bar |
| Differential pressure max[psi] | 334 psi |
| EU RoHS compliance | Yes |
| EU RoHS exemption clause | No |
| Fluid Group | 1 2 |
| Kv value [m³/h] | 0.23 m³/h |
| Max. Working Pressure [bar] | 28 bar |
| Max. Working Pressure [psig] | 406 psig |
| Packing format | Single pack |
| PED category | II |
| Pilot line connection type | Welding |
| Product description | Float Valve |
| Quantity per packing format | 1 pc |
| Rated cap. conditions [IMP] | +41 °F/+89,6 °F, sub. Cooling |
| Rated cap. conditions [SI] | +5 °C/+32 °C, sub. Cooling 4 K |
| Rated cap. R404A/R507A [kW] | 15.4 kW |
| Rated cap. R404A/R507A [TR] | 4.38 TR |
| Rated capacity R134a [kW] | 16.4 kW |
| Rated capacity R134a [TR] | 4.66 TR |
| Rated capacity R22 [kW] | 21 kW |
| Rated capacity R22 [TR] | 5.97 TR |
| Rated capacity R717 [kW] | 102 kW |
| Rated capacity R717 [TR] | 29 TR |
| REACH Candidate List substances | No |
| Refrigerants | R134a R22 R401A R402A R404A R407A R407B R407C R407F R409A R410A R421A R502 R717 R507A |
| Temperature range [°C] [max] | 120 °C |
| Temperature range [°C] [min] | -50 °C |
| Temperature range [°F] [max] | 302 °F |
| Temperature range [°F] [min] | -58 °F |
| UL mark | Yes |
| Used for product | SV 4 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE DANFOSS REFRIGERATION AND AIRCONDITIONING EN.pdf | 11 Mbytes |
|
| 027B2014 027B2014 EN_027B2014.pdf | 943 Kbytes |
|
