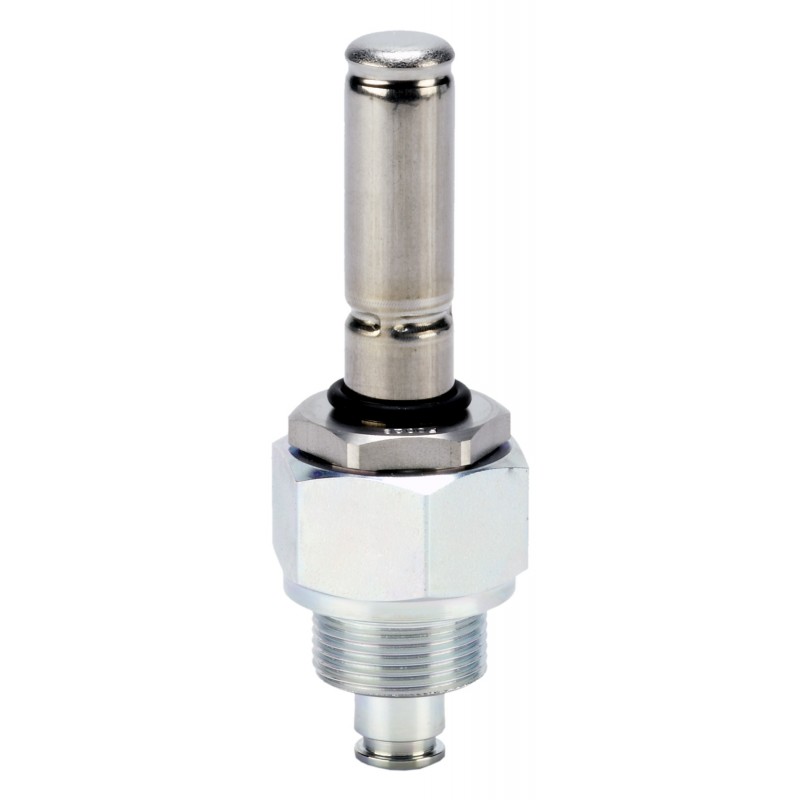

027B1132 DANFOSS REFRIGERATION Pilot valve
027B1132
DANFOSS REFRIGERATION
Pilot valve
EVM Pilotvalve NO for ammonia, MU 20.
Pilot valve, EVM
Home > DANFOSS REFRIGERATION
Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS REFRIGERATION
Best sellers
▲More info
▲Kv value [m³/h]: 0.118, Max. Working Pressure [bar]: 65
Product details
| Gross weight | 248.13 Gram |
| Net weight | 231.8 Gram |
| Volume | 0.206 Liter |
| EAN | 5702428819039 |
| Type | EVM |
| Product group | Press. and temp. regul. valves |
| Product Name Description | Pilot valve |
| Gross weight | 248.13 Gram |
| Net weight | 231.8 Gram |
| Volume | 0.206 Liter |
| EAN | 5702428819039 |
| Type | EVM |
| Product group | Press. and temp. regul. valves |
| Product Name Description | Pilot valve |
| Actuator system [mm] | 13.5 mm |
| Ambient temperature | -30 - 50 °C |
| Ambient temperature range [°F] [max] | 122 °F |
| Ambient temperature range [°F] [min] | -22 °F |
| Approval | LLC CDC TYSK UL |
| Body material | Steel |
| China RoHS compliance | Yes |
| China RoHS exemption clause | No |
| Coil | No |
| Contains batteries | No |
| Cv value [gal/min] | 0.136 gal/min |
| Direction | None |
| EU RoHS compliance | Yes |
| EU RoHS exemption clause | No |
| Function | NO |
| Inlet connection type | Thread |
| Kv value [m³/h] | 0.118 m³/h |
| Manual operation option | No |
| Max. Working Pressure [bar] | 65 bar |
| Max. Working Pressure [psig] | 943 psig |
| MaxOPD[bar] 10W AC | 40 bar |
| MaxOPD[bar] 20W AC | 40 bar |
| MaxOPD[psi] 10W AC | 580 psi |
| MaxOPD[psi] 20W AC | 580 psi |
| Medium temperature range [°C] [max] | 120 °C |
| Medium temperature range [°C] [min] | -60 °C |
| Medium temperature range [°F] [max] | 248 °F |
| Medium temperature range [°F] [min] | -76 °F |
| Orifice size [mm] | 1.8 mm |
| Packing format | Multi pack |
| Parts Program name | CVH ICS |
| Product accessories | Pilot valve accessories |
| Quantity per packing format | 20 pc |
| REACH Candidate List substances | No |
| Refrigerants | R134a R22 R401A R402A R404A R407A R407B R407C R407F R409A R410A R421A R502 R717 R744 R507A R1234yf R1234ze(E) R125 R152a R170 R227ea R236fa R245fa R290 R32 R407H R413A R417A R422A R422B R422D R438A R442A R444B R447A R447B R448A R449A R449B R450A R452A R452B R452C R454A R454B R454C R455A R463A R512A R513A R513B R515A R515B R516A R600 R600a |
| Serviceable | No |
| Type designation | Solenoid valve |
| UL mark | Yes |
| Valve operation | Servo-piston |
| Actuator system [mm] | 13.5 mm |
| Ambient temperature | -30 - 50 °C |
| Ambient temperature range [°F] [max] | 122 °F |
| Ambient temperature range [°F] [min] | -22 °F |
| Approval | LLC CDC TYSK UL |
| Body material | Steel |
| China RoHS compliance | Yes |
| China RoHS exemption clause | No |
| Coil | No |
| Contains batteries | No |
| Cv value [gal/min] | 0.136 gal/min |
| Direction | None |
| EU RoHS compliance | Yes |
| EU RoHS exemption clause | No |
| Function | NO |
| Inlet connection type | Thread |
| Kv value [m³/h] | 0.118 m³/h |
| Manual operation option | No |
| Max. Working Pressure [bar] | 65 bar |
| Max. Working Pressure [psig] | 943 psig |
| MaxOPD[bar] 10W AC | 40 bar |
| MaxOPD[bar] 20W AC | 40 bar |
| MaxOPD[psi] 10W AC | 580 psi |
| MaxOPD[psi] 20W AC | 580 psi |
| Medium temperature range [°C] [max] | 120 °C |
| Medium temperature range [°C] [min] | -60 °C |
| Medium temperature range [°F] [max] | 248 °F |
| Medium temperature range [°F] [min] | -76 °F |
| Orifice size [mm] | 1.8 mm |
| Packing format | Multi pack |
| Parts Program name | CVH ICS |
| Product accessories | Pilot valve accessories |
| Quantity per packing format | 20 pc |
| REACH Candidate List substances | No |
| Refrigerants | R134a R22 R401A R402A R404A R407A R407B R407C R407F R409A R410A R421A R502 R717 R744 R507A R1234yf R1234ze(E) R125 R152a R170 R227ea R236fa R245fa R290 R32 R407H R413A R417A R422A R422B R422D R438A R442A R444B R447A R447B R448A R449A R449B R450A R452A R452B R452C R454A R454B R454C R455A R463A R512A R513A R513B R515A R515B R516A R600 R600a |
| Serviceable | No |
| Type designation | Solenoid valve |
| UL mark | Yes |
| Valve operation | Servo-piston |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE DANFOSS REFRIGERATION AND AIRCONDITIONING EN.pdf | 11 Mbytes |
|
| 027B1132 027B1132 EN_027F1159.pdf | 1 Mbytes |
|
