DANFOSS REFRIGERATION027B1131 DANFOSS REFRIGERATION EVM-NO PILOT VALVE 52 bar

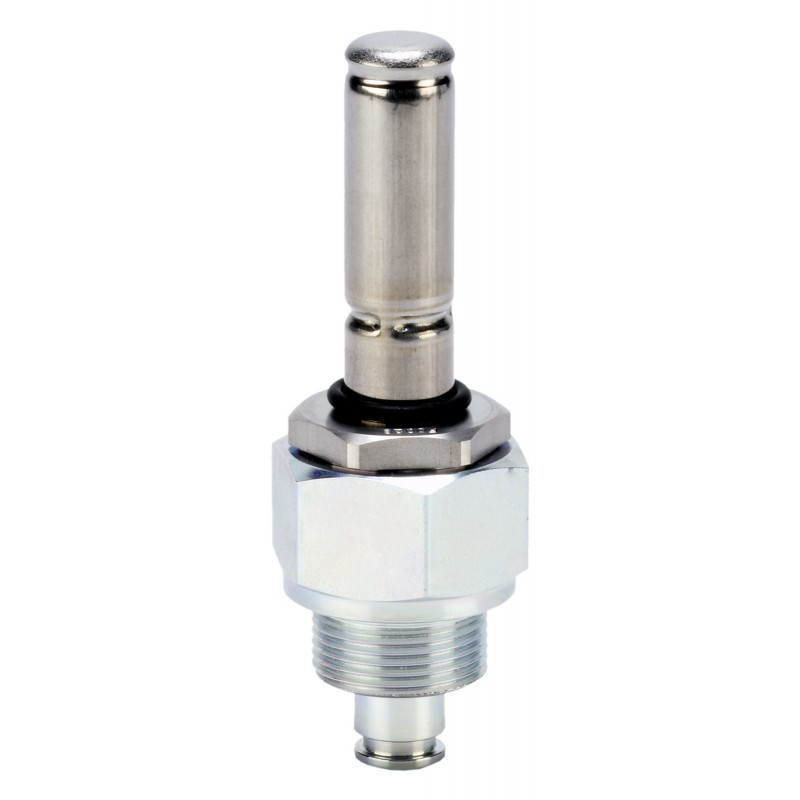

DANFOSS REFRIGERATION 027B1131 027B1131 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

027B1131 DANFOSS REFRIGERATION EVM-NO PILOT VALVE 52 bar

Reference: 027B1131

Manufacturer: DANFOSS REFRIGERATION

Description:

EVM-NO PILOT VALVE 52 bar
Pilot valve, EVM

Categories:

  • DANFOSS REFRIGERATION

Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS REFRIGERATION

  • More Info
  • PDF
  • Reviews
Guarantee, repair and return.

Unit Price: 190,99 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 4-5 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

LAST VIEWED

MORE INFO

Kv value [m³/h]: 0.118, Max. Working Pressure [bar]: 65

Product details

Gross weight0.247 Kilogram
Net weight0.233 Kilogram
Volume0.214 Liter
EAN5702428229555
TypeEVM
Product groupPress. and temp. regul. valves
Product Name DescriptionPilot valve
Gross weight0.247 Kilogram
Net weight0.233 Kilogram
Volume0.214 Liter
EAN5702428229555
TypeEVM
Product groupPress. and temp. regul. valves
Product Name DescriptionPilot valve

Actuator system [mm]13.5 mm
Ambient temperature-40 - 80 °C
Ambient temperature range [°F] [max]176 °F
Ambient temperature range [°F] [min]-40 °F
ApprovalLLC CDC TYSK
UL
Body materialSteel
China RoHS complianceYes
China RoHS exemption clauseNo
CoilNo
Contains batteriesNo
Cv value [gal/min]0.136 gal/min
DirectionNone
EU RoHS complianceYes
EU RoHS exemption clauseNo
FunctionNO
Inlet connection typeThread
Kv value [m³/h]0.118 m³/h
Manual operation optionNo
Max. Working Pressure [bar]65 bar
Max. Working Pressure [psig]943 psig
MaxOPD[bar] 10W AC19 bar
MaxOPD[bar] 20W DC19 bar
MaxOPD[psi] 10W AC276 psi
Medium temperature range [°C] [max]120 °C
Medium temperature range [°C] [min]-60 °C
Medium temperature range [°F] [max]248 °F
Medium temperature range [°F] [min]-76 °F
Orifice size [mm]1.8 mm
Packing formatMulti pack
Parts Program nameCVH
ICS
Product accessoriesPilot valve accessories
Quantity per packing format20 pc
REACH Candidate List substancesNo
RefrigerantsR134a
R22
R401A
R402A
R404A
R407A
R407B
R407C
R407F
R409A
R410A
R421A
R502
R717
R744
R507A
ServiceableNo
Type designationSolenoid valve
UL markYes
Valve operationServo-piston
Actuator system [mm]13.5 mm
Ambient temperature-40 - 80 °C
Ambient temperature range [°F] [max]176 °F
Ambient temperature range [°F] [min]-40 °F
ApprovalLLC CDC TYSK
UL
Body materialSteel
China RoHS complianceYes
China RoHS exemption clauseNo
CoilNo
Contains batteriesNo
Cv value [gal/min]0.136 gal/min
DirectionNone
EU RoHS complianceYes
EU RoHS exemption clauseNo
FunctionNO
Inlet connection typeThread
Kv value [m³/h]0.118 m³/h
Manual operation optionNo
Max. Working Pressure [bar]65 bar
Max. Working Pressure [psig]943 psig
MaxOPD[bar] 10W AC19 bar
MaxOPD[bar] 20W DC19 bar
MaxOPD[psi] 10W AC276 psi
Medium temperature range [°C] [max]120 °C
Medium temperature range [°C] [min]-60 °C
Medium temperature range [°F] [max]248 °F
Medium temperature range [°F] [min]-76 °F
Orifice size [mm]1.8 mm
Packing formatMulti pack
Parts Program nameCVH
ICS
Product accessoriesPilot valve accessories
Quantity per packing format20 pc
REACH Candidate List substancesNo
RefrigerantsR134a
R22
R401A
R402A
R404A
R407A
R407B
R407C
R407F
R409A
R410A
R421A
R502
R717
R744
R507A
ServiceableNo
Type designationSolenoid valve
UL markYes
Valve operationServo-piston
