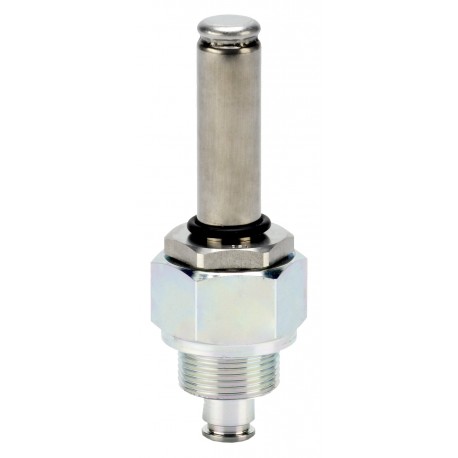

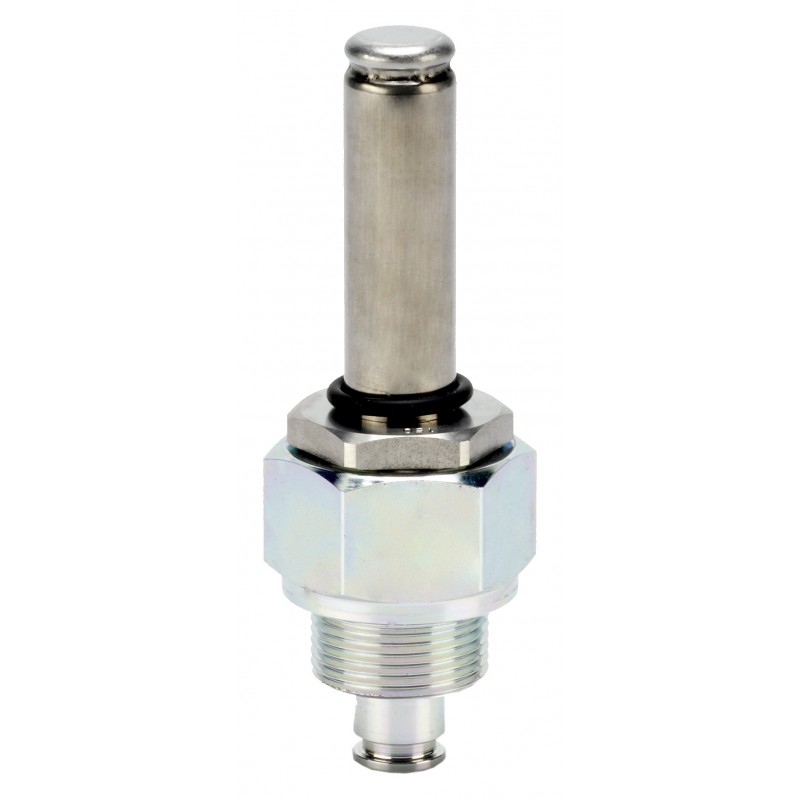

027B112232 DANFOSS REFRIGERATION Pilot valve
027B112232
DANFOSS REFRIGERATION
Pilot valve
EVM PILOT VALVE 220V 50
Pilot valve, EVM
Home > DANFOSS REFRIGERATION
Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS REFRIGERATION
Often bought together
▲Best sellers
▲More info
▲Kv value [m³/h]: 0.28, Max. Working Pressure [bar]: 65
Product details
| Gross weight | 0.602 Kilogram |
| Net weight | 0.549 Kilogram |
| Volume | 0.845 Liter |
| EAN | 5702428043915 |
| Type | EVM |
| Product group | Press. and temp. regul. valves |
| Product Name Description | Pilot valve |
| Gross weight | 0.602 Kilogram |
| Net weight | 0.549 Kilogram |
| Volume | 0.845 Liter |
| EAN | 5702428043915 |
| Type | EVM |
| Product group | Press. and temp. regul. valves |
| Product Name Description | Pilot valve |
| Actuator system [mm] | 13.5 mm |
| Ambient temperature | -40 - 80 °C |
| Ambient temperature range [°F] [max] | 176 °F |
| Ambient temperature range [°F] [min] | -40 °F |
| Approval | LLC CDC TYSK UL |
| Body material | Steel |
| China RoHS compliance | Yes |
| China RoHS exemption clause | No |
| Coil | Yes |
| Coil connection | Connection Box |
| Coil type | BE230CS |
| Contains batteries | No |
| Cv value [gal/min] | 0.324 gal/min |
| Direction | None |
| Enclosure rating IP | IP67 |
| EU RoHS compliance | Yes |
| EU RoHS exemption clause | No |
| Frequency [Hz] | 50/60 Hz |
| Function | NC |
| Inlet connection type | Thread |
| Kv value [m³/h] | 0.28 m³/h |
| Manual operation option | No |
| Max. Working Pressure [bar] | 65 bar |
| Max. Working Pressure [psig] | 943 psig |
| MaxOPD[bar] 10W AC | 21 bar |
| MaxOPD[bar] 20W DC | 14 bar |
| MaxOPD[psi] 10W AC | 305 psi |
| Medium temperature range [°C] [max] | 120 °C |
| Medium temperature range [°C] [min] | -60 °C |
| Medium temperature range [°F] [max] | 248 °F |
| Medium temperature range [°F] [min] | -76 °F |
| Orifice size [mm] | 3.3 mm |
| Packing format | Multi pack |
| Parts Program name | CVH ICS |
| Power consumption | 10 W |
| Power consumption [W] 50Hz | 17 W |
| Power consumption [W] 60Hz | 14 W |
| Product accessories | Pilot valve accessories |
| Quantity per packing format | 16 pc |
| REACH Candidate List substances | No |
| Refrigerants | R134a R22 R401A R402A R404A R407A R407B R407C R407F R409A R410A R421A R502 R717 R744 R507A |
| Serviceable | No |
| Supply voltage 50Hz Max [V] | 230 V |
| Supply voltage 50Hz Min [V] | 220 V |
| Supply voltage 60Hz Max [V] | 230 V |
| Supply voltage 60Hz Min [V] | 220 V |
| Supply voltage [V] AC [max] | 230 V |
| Supply voltage [V] AC [min] | 220 V |
| Type designation | Solenoid valve |
| UL mark | Yes |
| Valve operation | Servo-piston |
| Actuator system [mm] | 13.5 mm |
| Ambient temperature | -40 - 80 °C |
| Ambient temperature range [°F] [max] | 176 °F |
| Ambient temperature range [°F] [min] | -40 °F |
| Approval | LLC CDC TYSK UL |
| Body material | Steel |
| China RoHS compliance | Yes |
| China RoHS exemption clause | No |
| Coil | Yes |
| Coil connection | Connection Box |
| Coil type | BE230CS |
| Contains batteries | No |
| Cv value [gal/min] | 0.324 gal/min |
| Direction | None |
| Enclosure rating IP | IP67 |
| EU RoHS compliance | Yes |
| EU RoHS exemption clause | No |
| Frequency [Hz] | 50/60 Hz |
| Function | NC |
| Inlet connection type | Thread |
| Kv value [m³/h] | 0.28 m³/h |
| Manual operation option | No |
| Max. Working Pressure [bar] | 65 bar |
| Max. Working Pressure [psig] | 943 psig |
| MaxOPD[bar] 10W AC | 21 bar |
| MaxOPD[bar] 20W DC | 14 bar |
| MaxOPD[psi] 10W AC | 305 psi |
| Medium temperature range [°C] [max] | 120 °C |
| Medium temperature range [°C] [min] | -60 °C |
| Medium temperature range [°F] [max] | 248 °F |
| Medium temperature range [°F] [min] | -76 °F |
| Orifice size [mm] | 3.3 mm |
| Packing format | Multi pack |
| Parts Program name | CVH ICS |
| Power consumption | 10 W |
| Power consumption [W] 50Hz | 17 W |
| Power consumption [W] 60Hz | 14 W |
| Product accessories | Pilot valve accessories |
| Quantity per packing format | 16 pc |
| REACH Candidate List substances | No |
| Refrigerants | R134a R22 R401A R402A R404A R407A R407B R407C R407F R409A R410A R421A R502 R717 R744 R507A |
| Serviceable | No |
| Supply voltage 50Hz Max [V] | 230 V |
| Supply voltage 50Hz Min [V] | 220 V |
| Supply voltage 60Hz Max [V] | 230 V |
| Supply voltage 60Hz Min [V] | 220 V |
| Supply voltage [V] AC [max] | 230 V |
| Supply voltage [V] AC [min] | 220 V |
| Type designation | Solenoid valve |
| UL mark | Yes |
| Valve operation | Servo-piston |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE DANFOSS REFRIGERATION AND AIRCONDITIONING EN.pdf | 11 Mbytes |
|
| 027B112232 027B112232 EN_027F1159.pdf | 1 Mbytes |
|
