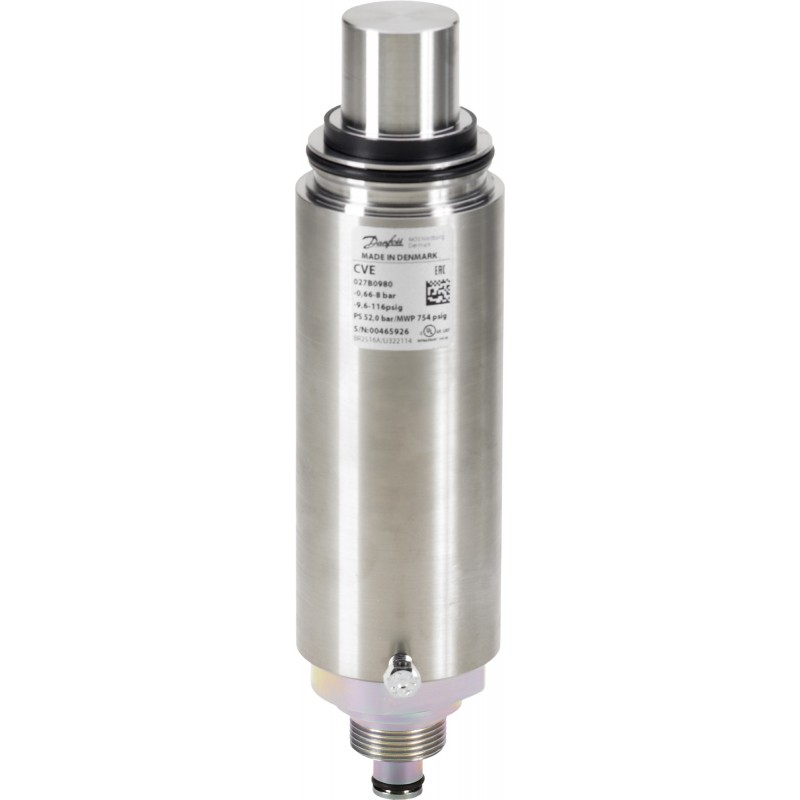

027B0980 DANFOSS REFRIGERATION Pilot valve, CVE-L
027B0980
DANFOSS REFRIGERATION
Pilot valve, CVE-L
CVE-L Pilot valve -0,66 to 8 bar
Pilot valve, CVE-L, Constant-pressure pilot valve
Home > DANFOSS REFRIGERATION
Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS REFRIGERATION
Best sellers
▲More info
▲Pressure range [bar] Pe: -0.66 - 8, Kv value [m³/h]: 0.4, Max. Working Pressure [bar]: 52, Temperature range [°C]: -60 - 120
Product details
| Gross weight | 1.908 Kilogram |
| Net weight | 1.74 Kilogram |
| Volume | 2.97 Liter |
| EAN | 5715162163597 |
| Type | CVE-L |
| Product group | Press. and temp. regul. valves |
| Product Name Description | Pilot valve |
| Gross weight | 1.908 Kilogram |
| Net weight | 1.74 Kilogram |
| Volume | 2.97 Liter |
| EAN | 5715162163597 |
| Type | CVE-L |
| Product group | Press. and temp. regul. valves |
| Product Name Description | Pilot valve |
| Actuator system | ICAD 1200A |
| Approval | EAC UL |
| Brand | ICV Flexline |
| China RoHS compliance | Yes |
| China RoHS exemption clause | No |
| Contains batteries | No |
| Cv value [gal/min] | 0.46 gal/min |
| EU RoHS compliance | Yes |
| EU RoHS exemption clause | No |
| Fluid Group | 1 |
| Kv value [m³/h] | 0.4 m³/h |
| Max. Working Pressure [bar] | 52 bar |
| Max. Working Pressure [psig] | 754 psig |
| Packing format | Multi pack |
| Parts included | Gasket |
| Parts Program name | CVH ICS ICF PM |
| PED category | Art. 3, par. 3 |
| Pressure range [bar] Pe [max] | 8 bar |
| Pressure range [bar] Pe [min] | -0.66 bar |
| Pressure range [psig] Pe [max] | 116 psig |
| Pressure range [psig] Pe [min] | -9.6 psig |
| Product accessories | No |
| Product description | Constant-pressure pilot valve |
| Quantity per packing format | 6 pc |
| REACH Candidate List substances | No |
| Refrigerants | R134a R22 R401A R402A R404A R407A R407B R407C R407F R409A R410A R421A R502 R717 R744 R507A R1234yf R1234ze(E) R125 R227ea R236fa R245fa R32 R407H R417A R422A R422B R422D R438A R442A R444B R447A R447B R448A R449A R449B R450A R452A R452B R454A R454B R454C R455A R463A R513A R513B R515A R515B R516A |
| Regulation range | 19.5inHg - 116psig |
| Serviceable | Pilot valve spare parts |
| Surface coating | Stainless steel |
| Temperature range [°C] [max] | 120 °C |
| Temperature range [°C] [min] | -60 °C |
| Temperature range [°F] [max] | 248 °F |
| Temperature range [°F] [min] | -76 °F |
| UL approval file name | REFRIGERANT VALVE 53R0 |
| UL mark | Yes |
| Valve version | Low pressure |
| Actuator system | ICAD 1200A |
| Approval | EAC UL |
| Brand | ICV Flexline |
| China RoHS compliance | Yes |
| China RoHS exemption clause | No |
| Contains batteries | No |
| Cv value [gal/min] | 0.46 gal/min |
| EU RoHS compliance | Yes |
| EU RoHS exemption clause | No |
| Fluid Group | 1 |
| Kv value [m³/h] | 0.4 m³/h |
| Max. Working Pressure [bar] | 52 bar |
| Max. Working Pressure [psig] | 754 psig |
| Packing format | Multi pack |
| Parts included | Gasket |
| Parts Program name | CVH ICS ICF PM |
| PED category | Art. 3, par. 3 |
| Pressure range [bar] Pe [max] | 8 bar |
| Pressure range [bar] Pe [min] | -0.66 bar |
| Pressure range [psig] Pe [max] | 116 psig |
| Pressure range [psig] Pe [min] | -9.6 psig |
| Product accessories | No |
| Product description | Constant-pressure pilot valve |
| Quantity per packing format | 6 pc |
| REACH Candidate List substances | No |
| Refrigerants | R134a R22 R401A R402A R404A R407A R407B R407C R407F R409A R410A R421A R502 R717 R744 R507A R1234yf R1234ze(E) R125 R227ea R236fa R245fa R32 R407H R417A R422A R422B R422D R438A R442A R444B R447A R447B R448A R449A R449B R450A R452A R452B R454A R454B R454C R455A R463A R513A R513B R515A R515B R516A |
| Regulation range | 19.5inHg - 116psig |
| Serviceable | Pilot valve spare parts |
| Surface coating | Stainless steel |
| Temperature range [°C] [max] | 120 °C |
| Temperature range [°C] [min] | -60 °C |
| Temperature range [°F] [max] | 248 °F |
| Temperature range [°F] [min] | -76 °F |
| UL approval file name | REFRIGERANT VALVE 53R0 |
| UL mark | Yes |
| Valve version | Low pressure |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE DANFOSS REFRIGERATION AND AIRCONDITIONING EN.pdf | 11 Mbytes |
|
| 027B0980 027B0980 EN_027F1159.pdf | 1 Mbytes |
|
