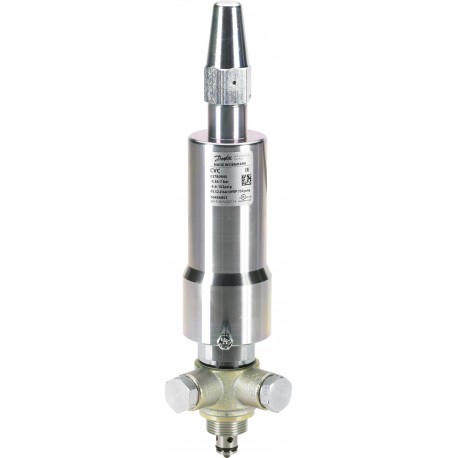

DANFOSS REFRIGERATION 027B0941 027B0941 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

027B0941 DANFOSS REFRIGERATION Pilot valve

Name: 027B0941 DANFOSS REFRIGERATION Pilot valve
Brand: DANFOSS REFRIGERATION
SKU: DAO027B0941
Price: 755.69 USD
Availability: OutOfStock

Reference: 027B0941

Manufacturer: DANFOSS REFRIGERATION

Description:

Pilot valve

CVC Pilot valve 4 to 28 bar

Pilot valve, CVC-M, Pressure-operated pilot valve

Categories:

DANFOSS REFRIGERATION

Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS REFRIGERATION

More Info
PDF
Reviews

Guarantee, repair and return.

Unit Price: 675,07 €

This price is per unit and is the net value (not including taxes if applicable).

Special discounts for registered customers.Login or register and prices will be updated.

Calculate price by quantity

Quantity	Price

Standard lead time: 4-5 days.

These delivery times are an estimate any may vary when the item order has been processed.
You will be notified of any change to delivery times once the order has been processed.
To this delivery time you have to add the time of transport from our logistics centre to your company.

MORE INFO

Pressure range [bar] Pe: 4 - 28, Kv value [m³/h]: 0.2, Max. Working Pressure [bar]: 65, Temperature range [°C]: -60 - 120

Product details

Gross weight	2.072 Kilogram
Net weight	1.78 Kilogram
Volume	3.146 Liter
EAN	5702428557689

Type	CVC-M
Product group	Press. and temp. regul. valves
Product Name Description	Pilot valve

Gross weight	2.072 Kilogram
Net weight	1.78 Kilogram
Volume	3.146 Liter
EAN	5702428557689
Type	CVC-M
Product group	Press. and temp. regul. valves
Product Name Description	Pilot valve

Approval	EAC UL
Brand	ICV Flexline
China RoHS compliance	Out of scope
Contains batteries	No
Cv value [gal/min]	0.23 gal/min
EU RoHS compliance	Out of scope
Fluid Group	1
Kv value [m³/h]	0.2 m³/h
Max. Working Pressure [bar]	65 bar
Max. Working Pressure [psig]	943 psig
Packing format	Multi pack
Parts included	Adapter Gasket
Parts Program name	CVH ICS ICF PM
PED category	Art. 3, par. 3
Pressure range [bar] Pe [max]	28 bar
Pressure range [bar] Pe [min]	4 bar
Pressure range [psig] Pe [max]	406 psig

Pressure range [psig] Pe [min]	58 psig
Product accessories	No
Product description	Pressure-operated pilot valve
Quantity per packing format	6 pc
REACH Candidate List substances	Lead (CAS no. 7439-92-1)
Refrigerants	R134a R22 R401A R402A R404A R407A R407B R407C R407F R409A R410A R421A R502 R717 R744 R507A R1234yf R1234ze(E) R125 R152a R227ea R236fa R245fa R290 R32 R407H R413A R417A R422A R422B R422D R438A R442A R444B R447A R447B R448A R449A R449B R450A R452A R452B R454A R454B R454C R455A R463A R512A R513A R513B R515A R515B R516A R170 R452C R600 R600a
SCIP dossier no.	b8e15de0-f35a-4611-9e37-b94c82eadf1f
SCIP dossier product name	CVPP, CVC, CVPPE, CVCE
Serviceable	Pilot valve spare parts
Surface coating	Zn (TLP)
Temperature range [°C] [max]	120 °C
Temperature range [°C] [min]	-60 °C
Temperature range [°F] [max]	248 °F
Temperature range [°F] [min]	-76 °F
UL approval file name	REFRIGERANT VALVE 53R0
UL evaluated	Yes
Valve version	Medium pressure

Approval	EAC UL
Brand	ICV Flexline
China RoHS compliance	Out of scope
Contains batteries	No
Cv value [gal/min]	0.23 gal/min
EU RoHS compliance	Out of scope
Fluid Group	1
Kv value [m³/h]	0.2 m³/h
Max. Working Pressure [bar]	65 bar
Max. Working Pressure [psig]	943 psig
Packing format	Multi pack
Parts included	Adapter Gasket
Parts Program name	CVH ICS ICF PM
PED category	Art. 3, par. 3
Pressure range [bar] Pe [max]	28 bar
Pressure range [bar] Pe [min]	4 bar
Pressure range [psig] Pe [max]	406 psig
Pressure range [psig] Pe [min]	58 psig
Product accessories	No
Product description	Pressure-operated pilot valve
Quantity per packing format	6 pc
REACH Candidate List substances	Lead (CAS no. 7439-92-1)
Refrigerants	R134a R22 R401A R402A R404A R407A R407B R407C R407F R409A R410A R421A R502 R717 R744 R507A R1234yf R1234ze(E) R125 R152a R227ea R236fa R245fa R290 R32 R407H R413A R417A R422A R422B R422D R438A R442A R444B R447A R447B R448A R449A R449B R450A R452A R452B R454A R454B R454C R455A R463A R512A R513A R513B R515A R515B R516A R170 R452C R600 R600a
SCIP dossier no.	b8e15de0-f35a-4611-9e37-b94c82eadf1f
SCIP dossier product name	CVPP, CVC, CVPPE, CVCE
Serviceable	Pilot valve spare parts
Surface coating	Zn (TLP)
Temperature range [°C] [max]	120 °C
Temperature range [°C] [min]	-60 °C
Temperature range [°F] [max]	248 °F
Temperature range [°F] [min]	-76 °F
UL approval file name	REFRIGERANT VALVE 53R0
UL evaluated	Yes
Valve version	Medium pressure

DATASHEET - PDF

Title

Size

Type

027B0941 027B0941 EN_027F1159.pdf

1 Mbytes

PDF CATALOGUE DANFOSS REFRIGERATION AND AIRCONDITIONING EN

11 Mbytes
