DANFOSS REFRIGERATION027B0090 DANFOSS REFRIGERATION Pilot valve

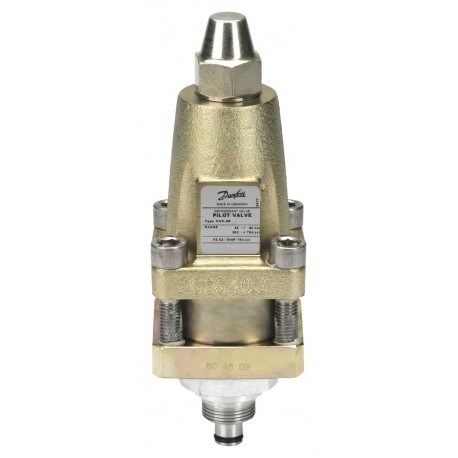

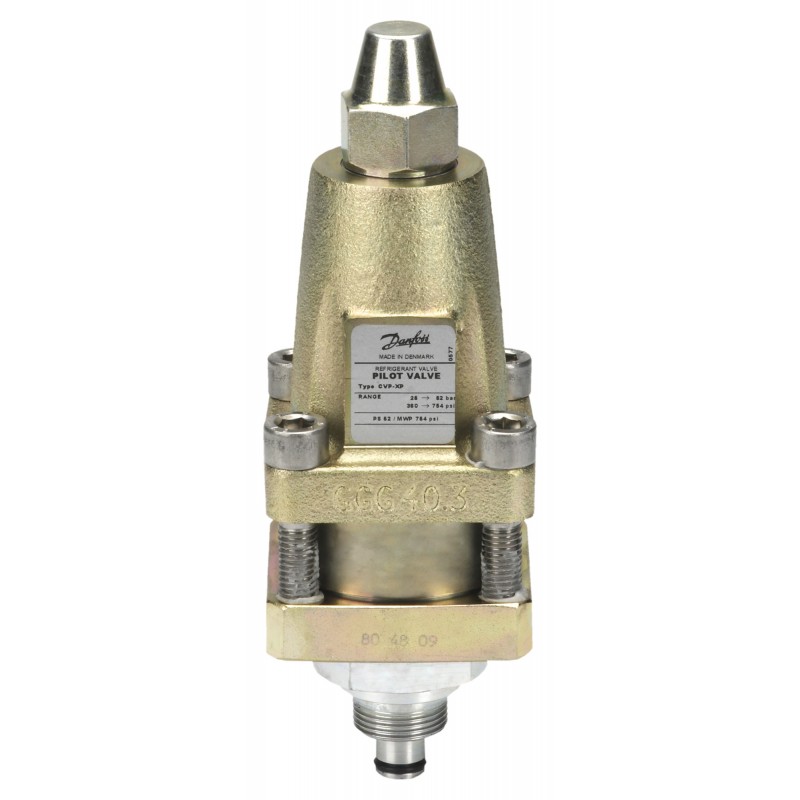

DANFOSS REFRIGERATION 027B0090 027B0090 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

027B0090 DANFOSS REFRIGERATION Pilot valve

Reference: 027B0090

Manufacturer: DANFOSS REFRIGERATION

Description:

Pilot valve
Pilot valve, CVP-XP, Constant-pressure pilot valve

Categories:

  • DANFOSS REFRIGERATION

Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS REFRIGERATION

  • More Info
  • Reviews
Guarantee, repair and return.

* This article may be obsolete. Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

Kv value [m³/h]: 0.45, Max. Working Pressure [bar]: 52, Temperature range [°C]: -50 - 120

Product details

Gross weight2.089 Kilogram
Net weight1.789 Kilogram
Volume6.248 Liter
EAN5702428889315
TypeCVP-XP
Product groupPress. and temp. regul. valves
Product Name DescriptionPilot valve
Gross weight2.089 Kilogram
Net weight1.789 Kilogram
Volume6.248 Liter
EAN5702428889315
TypeCVP-XP
Product groupPress. and temp. regul. valves
Product Name DescriptionPilot valve

ApprovalEAC
LLC CDC TYSK
China RoHS complianceYes
China RoHS exemption clauseNo
Contains batteriesNo
Cv value [gal/min]0.52 gal/min
EU RoHS complianceYes
EU RoHS exemption clauseNo
Fluid Group1
Kv value [m³/h]0.45 m³/h
Max. Working Pressure [bar]52 bar
Max. Working Pressure [psig]754 psig
Packing formatSingle pack
PED categoryArt. 3, par. 3
Pressure range [bar] Pe [max]40 bar
Pressure range [bar] Pe [min]10 bar
Product accessoriesNo
Product descriptionConstant-pressure pilot valve
Quantity per packing format1 pc
REACH Candidate List substancesNo
RefrigerantsR134a
R22
R401A
R402A
R404A
R407A
R407B
R407C
R407F
R409A
R410A
R421A
R502
R717
R744
R507A
ServiceablePilot valve spare parts
Temperature range [°C] [max]120 °C
Temperature range [°C] [min]-50 °C
Temperature range [°F] [max]248 °F
Temperature range [°F] [min]-58 °F
Valve versionHigh pressure
ApprovalEAC
LLC CDC TYSK
China RoHS complianceYes
China RoHS exemption clauseNo
Contains batteriesNo
Cv value [gal/min]0.52 gal/min
EU RoHS complianceYes
EU RoHS exemption clauseNo
Fluid Group1
Kv value [m³/h]0.45 m³/h
Max. Working Pressure [bar]52 bar
Max. Working Pressure [psig]754 psig
Packing formatSingle pack
PED categoryArt. 3, par. 3
Pressure range [bar] Pe [max]40 bar
Pressure range [bar] Pe [min]10 bar
Product accessoriesNo
Product descriptionConstant-pressure pilot valve
Quantity per packing format1 pc
REACH Candidate List substancesNo
RefrigerantsR134a
R22
R401A
R402A
R404A
R407A
R407B
R407C
R407F
R409A
R410A
R421A
R502
R717
R744
R507A
ServiceablePilot valve spare parts
Temperature range [°C] [max]120 °C
Temperature range [°C] [min]-50 °C
Temperature range [°F] [max]248 °F
Temperature range [°F] [min]-58 °F
Valve versionHigh pressure

DATASHEET - PDF

Title
Size
Type
PDF CATALOGUE DANFOSS REFRIGERATION AND AIRCONDITIONING EN
11 Mbytes
