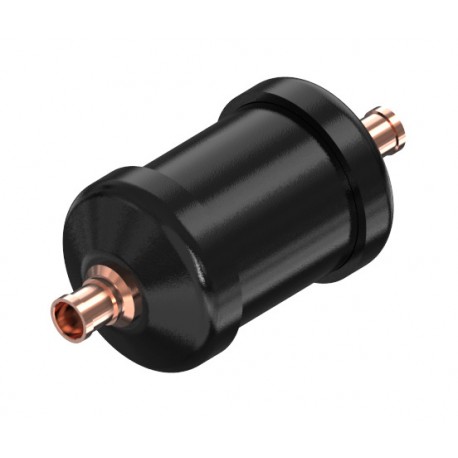

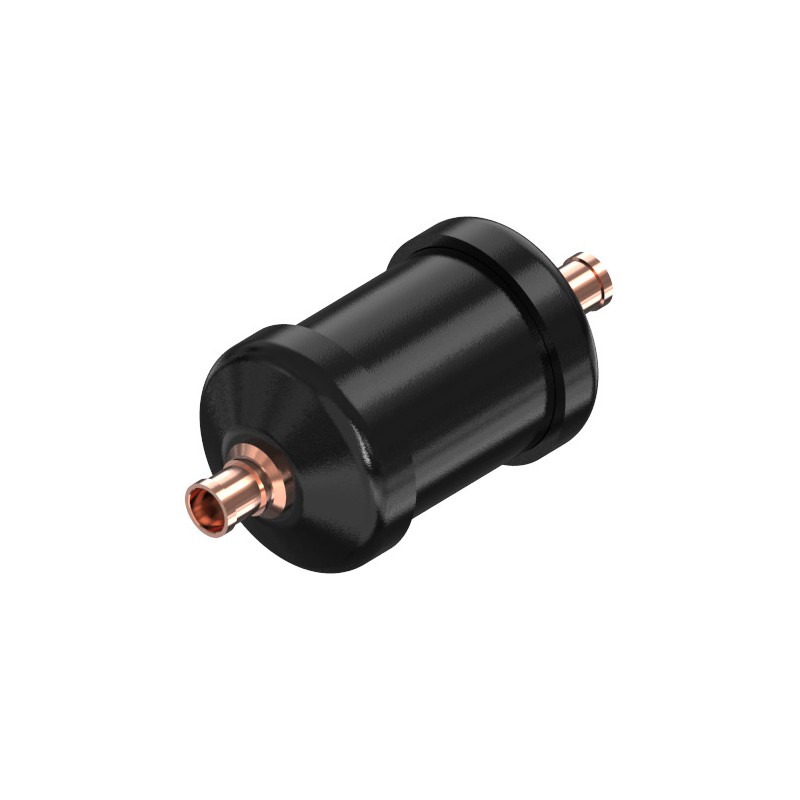

023Z8412 DANFOSS REFRIGERATION Hermetic filter drier, DMT
023Z8412
DANFOSS REFRIGERATION
12
Hermetic filter drier, DMT
Hermetic filter drier, DMT, 08 cu.in., Steel Cu-plated
Home > DANFOSS REFRIGERATION
* Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS REFRIGERATION
Best sellers
▲More info
▲Inlet connection type: Solder, ODF, Outlet connection type: Solder, ODF, Core Size code: 08 cu.in.
Product details
| Gross weight | 0.996 Kg |
| Net weight | 0.94 Kg |
| Volume | 1.874 Liter |
| EAN | 5702428913409 |
| Gross weight | 0.996 Kg |
| Net weight | 0.94 Kg |
| Volume | 1.874 Liter |
| EAN | 5702428913409 |
| Acid capacity [g] | 0.54 g |
| Acid capacity [oz] | 0.019 oz |
| Body material | Steel |
| Braket | No |
| Connection material | Steel Cu-plated |
| Core Size code | 08 cu.in. |
| Drying Cap[Drops of Water]24°C | R744:197 |
| EU RoHS compliance | Yes with exemptions |
| Flow capacity [kW] | R744: 15.9 |
| Flow capacity [TR] | R744: 4.5 |
| In scope of WEEE and contain batteries | No |
| Inlet 1 connection size [in] | 1/2 in |
| Inlet connection type | Solder, ODF |
| LiqCap Cond (ARI 710-2009)[SI] | Delta p=0.07bar tliq= 30°C tvap=-15°C |
| LiqCapCond (ARI 710-2009)[IMP] | Delta p=1psi tliq= 86°F tvap=5°F |
| Max. Working Pressure [bar] | 140 bar |
| Max. Working Pressure [psig] | 2030 psig |
| Net volume [foz US] | 3.87 Fluid Ounce US |
| Net volume [l] | 0.114 L |
| Outlet 1 connection size [in] | 1/2 in |
| Outlet connection type | Solder, ODF |
| Packing format | Industrial pack |
| PED category | Art. 4, par. 3 |
| Product description | Liquid line filter drier |
| Product group | Filter driers |
| Product Name Description | Hermetic filter drier |
| Quantity per packing format | 12 pc |
| REACH Candidate List substances | No |
| Refrigerants | R744 |
| Serviceable | No |
| Shell volume [foz US] | 5.85 Fluid Ounce US |
| Shell volume [l] | 0.17 L |
| Solid core surface [cm2] | 118 cm² |
| Solid core surface [in2] | 18.29 in² |
| Solid core volume [cm3] | 59 cm³ |
| Solid core volume [in3] | 3.57 in³ |
| Temperature range [°C] [max] | 100 °C |
| Temperature range [°C] [min] | -40 °C |
| Temperature range [°F] [max] | 212 °F |
| Temperature range [°F] [min] | -40 °F |
| Type | DMT |
| Type designation | DMT 084S |
| Acid capacity [g] | 0.54 g |
| Acid capacity [oz] | 0.019 oz |
| Body material | Steel |
| Braket | No |
| Connection material | Steel Cu-plated |
| Core Size code | 08 cu.in. |
| Drying Cap[Drops of Water]24°C | R744:197 |
| EU RoHS compliance | Yes with exemptions |
| Flow capacity [kW] | R744: 15.9 |
| Flow capacity [TR] | R744: 4.5 |
| In scope of WEEE and contain batteries | No |
| Inlet 1 connection size [in] | 1/2 in |
| Inlet connection type | Solder, ODF |
| LiqCap Cond (ARI 710-2009)[SI] | Delta p=0.07bar tliq= 30°C tvap=-15°C |
| LiqCapCond (ARI 710-2009)[IMP] | Delta p=1psi tliq= 86°F tvap=5°F |
| Max. Working Pressure [bar] | 140 bar |
| Max. Working Pressure [psig] | 2030 psig |
| Net volume [foz US] | 3.87 Fluid Ounce US |
| Net volume [l] | 0.114 L |
| Outlet 1 connection size [in] | 1/2 in |
| Outlet connection type | Solder, ODF |
| Packing format | Industrial pack |
| PED category | Art. 4, par. 3 |
| Product description | Liquid line filter drier |
| Product group | Filter driers |
| Product Name Description | Hermetic filter drier |
| Quantity per packing format | 12 pc |
| REACH Candidate List substances | No |
| Refrigerants | R744 |
| Serviceable | No |
| Shell volume [foz US] | 5.85 Fluid Ounce US |
| Shell volume [l] | 0.17 L |
| Solid core surface [cm2] | 118 cm² |
| Solid core surface [in2] | 18.29 in² |
| Solid core volume [cm3] | 59 cm³ |
| Solid core volume [in3] | 3.57 in³ |
| Temperature range [°C] [max] | 100 °C |
| Temperature range [°C] [min] | -40 °C |
| Temperature range [°F] [max] | 212 °F |
| Temperature range [°F] [min] | -40 °F |
| Type | DMT |
| Type designation | DMT 084S |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| 023Z8412 023Z8412 ES_023Z8512.pdf | 1 Mbytes |
 |
