DANFOSS REFRIGERATION023Z8408 DANFOSS REFRIGERATION Hermetic filter drier, DMT

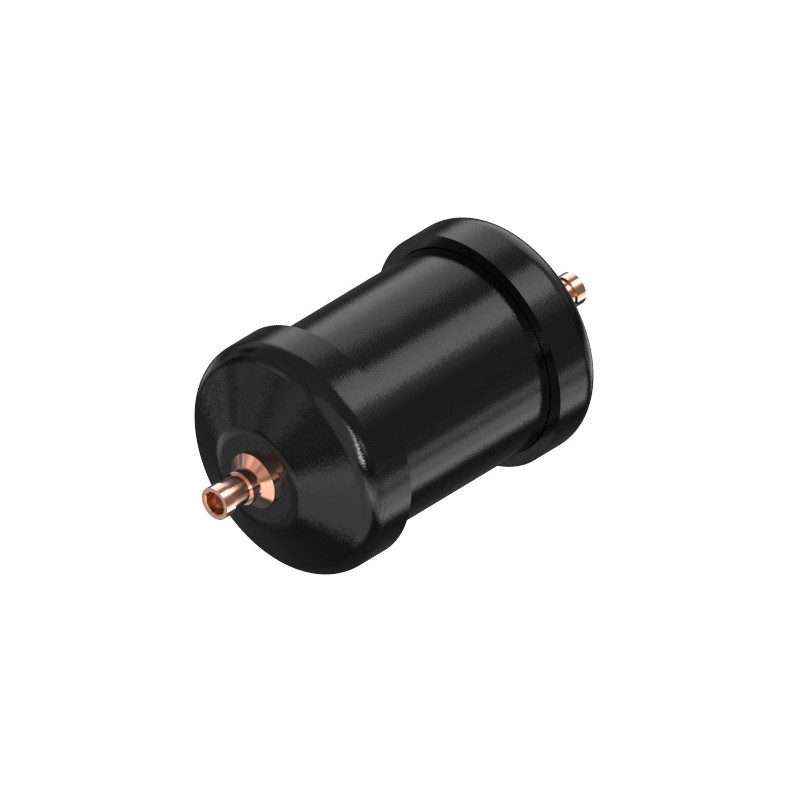

DANFOSS REFRIGERATION 023Z8408 023Z8408 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

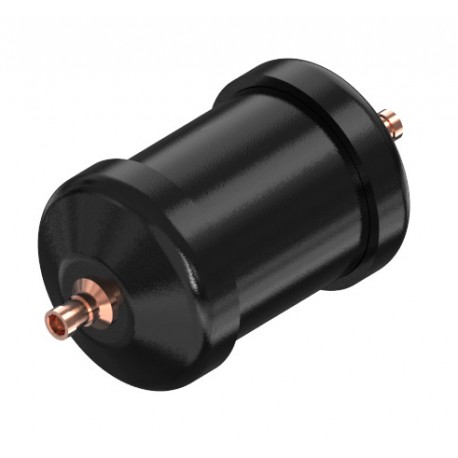

023Z8408 DANFOSS REFRIGERATION Hermetic filter drier, DMT

Reference: 023Z8408

Manufacturer: DANFOSS REFRIGERATION

Description:

Hermetic filter drier, DMT
Filter drier DMT 082S I/12
Hermetic filter drier, DMT, 08 cu.in., Steel Cu-plated

Categories:

  • DANFOSS REFRIGERATION

Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS REFRIGERATION

  • More Info
  • PDF
  • Reviews
Guarantee, repair and return.

Total: 1.120,72 €

Unit Price: 93,394 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 4-5 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

LAST VIEWED

MORE INFO

Inlet connection type: Solder, ODF, Outlet connection type: Solder, ODF, Core Size code: 08 cu.in., Packing format: Industrial pack, Quantity per packing format: 12

Product details

Gross weight0.987 Kilogram
Net weight0.914 Kilogram
Volume1.874 Liter
EAN5702428932400
TypeDMT
Product groupFilter driers
Product Name DescriptionHermetic filter drier
Gross weight0.987 Kilogram
Net weight0.914 Kilogram
Volume1.874 Liter
EAN5702428932400
TypeDMT
Product groupFilter driers
Product Name DescriptionHermetic filter drier

Acid capacity [g]0.54 g
Acid capacity [oz]0.019 oz
Activated alumina [%]0 %
Body materialSteel
BraketNo
China RoHS complianceYes
China RoHS exemption clauseNo
Connection materialSteel Cu-plated
Contains batteriesNo
Core Size code08 cu.in.
Core typeSolid core
Drying Cap[Drops of Water]24°CR744:197
EU RoHS complianceYes
EU RoHS exemption clauseNo
Filter applicationHigh Moisture Capacity
Flow capacity [kW]R744: 4.6
Flow capacity [TR]R744: 1.3
Inlet 1 connection size [in]1/4 in
Inlet connection typeSolder, ODF
LiqCap Cond (ARI 710-2009)[SI]Delta p=0.07bar
tliq= 30°C
tvap=-15°C
LiqCapCond (ARI 710-2009)[IMP]Delta p=1psi
tliq= 86°F
tvap=5°F
Max. Working Pressure [bar]140 bar
Max. Working Pressure [psig]2030 psig
Molecular sieve [%]100 %
Net volume [foz US]3.87 Fluid Ounce US
Net volume [l]0.114 L
Outlet 1 connection size [in]1/4 in
Outlet connection typeSolder, ODF
Packing formatIndustrial pack
PED categoryArt. 4, par. 3
Product descriptionLiquid line filter drier
Quantity per packing format12 pc
REACH Candidate List substancesNo
RefrigerantsR744
ServiceableNo
Shell volume [foz US]5.85 Fluid Ounce US
Shell volume [l]0.17 L
Solid core surface [cm2]118 cm²
Solid core surface [in2]18.29 in²
Solid core volume [cm3]59 cm³
Solid core volume [in3]3.57 in³
Temperature range [°C] [max]100 °C
Temperature range [°C] [min]-40 °C
Temperature range [°F] [max]212 °F
Temperature range [°F] [min]-40 °F
Type designationDMT 082S
Acid capacity [g]0.54 g
Acid capacity [oz]0.019 oz
Activated alumina [%]0 %
Body materialSteel
BraketNo
China RoHS complianceYes
China RoHS exemption clauseNo
Connection materialSteel Cu-plated
Contains batteriesNo
Core Size code08 cu.in.
Core typeSolid core
Drying Cap[Drops of Water]24°CR744:197
EU RoHS complianceYes
EU RoHS exemption clauseNo
Filter applicationHigh Moisture Capacity
Flow capacity [kW]R744: 4.6
Flow capacity [TR]R744: 1.3
Inlet 1 connection size [in]1/4 in
Inlet connection typeSolder, ODF
LiqCap Cond (ARI 710-2009)[SI]Delta p=0.07bar
tliq= 30°C
tvap=-15°C
LiqCapCond (ARI 710-2009)[IMP]Delta p=1psi
tliq= 86°F
tvap=5°F
Max. Working Pressure [bar]140 bar
Max. Working Pressure [psig]2030 psig
Molecular sieve [%]100 %
Net volume [foz US]3.87 Fluid Ounce US
Net volume [l]0.114 L
Outlet 1 connection size [in]1/4 in
Outlet connection typeSolder, ODF
Packing formatIndustrial pack
PED categoryArt. 4, par. 3
Product descriptionLiquid line filter drier
Quantity per packing format12 pc
REACH Candidate List substancesNo
RefrigerantsR744
ServiceableNo
Shell volume [foz US]5.85 Fluid Ounce US
Shell volume [l]0.17 L
Solid core surface [cm2]118 cm²
Solid core surface [in2]18.29 in²
Solid core volume [cm3]59 cm³
Solid core volume [in3]3.57 in³
Temperature range [°C] [max]100 °C
Temperature range [°C] [min]-40 °C
Temperature range [°F] [max]212 °F
Temperature range [°F] [min]-40 °F
Type designationDMT 082S

DATASHEET - PDF

Title
Size
Type
023Z8408 023Z8408 ES_023Z8503.pdf
611 Kbytes
PDF CATALOGUE DANFOSS REFRIGERATION AND AIRCONDITIONING EN
11 Mbytes
