DANFOSS REFRIGERATION023Z8255 DANFOSS REFRIGERATION Hermetic filter drier, DCL

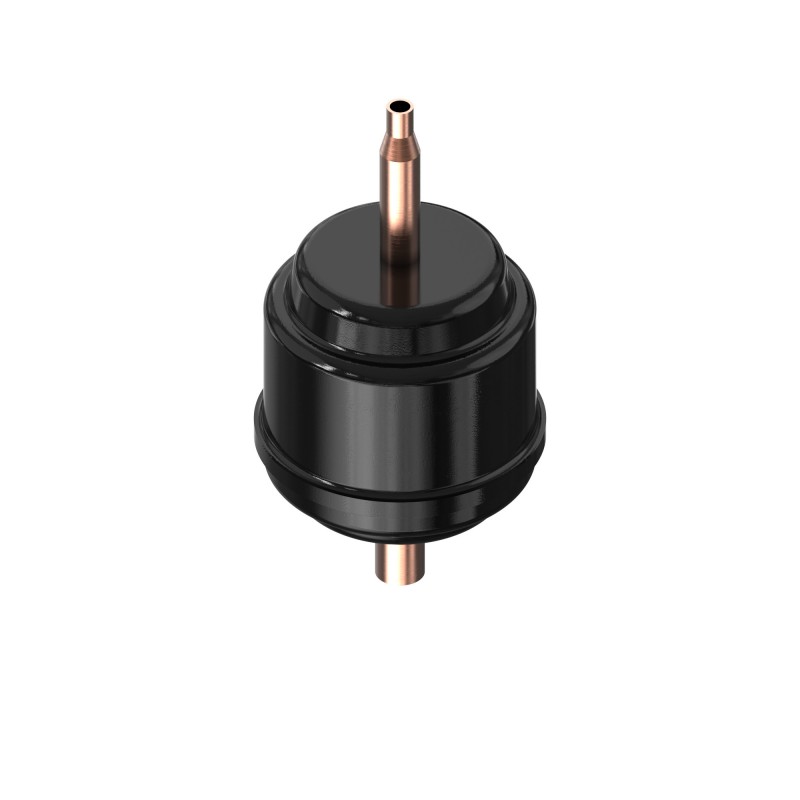

DANFOSS REFRIGERATION 023Z8255 023Z8255 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

023Z8255 DANFOSS REFRIGERATION Hermetic filter drier, DCL

Reference: 023Z8255

Manufacturer: DANFOSS REFRIGERATION

Description:

Hermetic filter drier, DCL
Filter drier DCL 1.52/2.8mmS M/32
Hermetic filter drier, DCL, 1.5 cu.in, Copper

Categories:

  • DANFOSS REFRIGERATION

Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS REFRIGERATION

  • More Info
  • PDF
  • Reviews
Guarantee, repair and return.

Unit Price: 20,31 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 4-5 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

LAST VIEWED

MORE INFO

Inlet connection type: Solder, ODF, Outlet connection type: Solder, ODF, Core Size code: 1.5 cu.in

Product details

Gross weight0.136 Kg
Net weight0.117 Kg
Volume0.322 Liter
EAN5702428931021
Gross weight0.136 Kg
Net weight0.117 Kg
Volume0.322 Liter
EAN5702428931021

Acid capacity [g]0.33 g
Acid capacity [oz]0.012 oz
Activated alum/Molec sieve [%]20% / 80%
ApprovalUL
Body materialSteel
BraketNo
BrandELIMINATOR
Connection materialCopper
CoreSolid core
Core Size code1.5 cu.in
Drying Cap[Drops of Water]24°CR134a: 47
Drying Cap[Drops of Water]52°CR134a: 43
EU RoHS complianceYes with exemptions
Flow direction indicatorLabel printed 1-way arrow
Fluid Group2
In scope of WEEE and contain batteriesNo
Inlet 1 connection size [in]1/4 in
Inlet connection typeSolder, ODF
LiqCap Cond (ARI 710-2009)[SI]Delta p=0.07bar
tliq= 30°C
tvap=-15°C
LiqCapCond (ARI 710-2009)[IMP]Delta p=1psi
tliq= 86°F
tvap=5°F
Lubricants compatibilityOilfree applications
Max. Working Pressure [bar]46 bar
Max. Working Pressure [psig]667 psig
Net volume [foz US]1.16 Fluid Ounce US
Net volume [l]0.034 L
Oil free refrigerantsR1234ze(E)
R134a
R513A
R515A
Outlet connection size [mm]2.8 mm
Outlet connection typeSolder, ODF
Packing formatMulti pack
PED categoryArt. 4, par. 3
Product descriptionLiquid line filter drier
Product groupFilter driers
Product Name DescriptionHermetic filter drier
Quantity per packing format32 pc
REACH Candidate List substancesNo
RefrigerantsR1234yf
R125
R134a
R22/R407C
R23
R290
R32
R404A
R407A
R407F
R410A
R422B
R422D
R438A
R444B
R448A
R449A
R449B
R450A
R452A
R452B
R454B
R455A
R507A
R513A
R600
R1234ze(E)
R1233zd(E)
R407H
R454A
R463A
R515B
R516A
R454C
ServiceableNo
Shell volume [foz US]1.61 Fluid Ounce US
Shell volume [l]0.05 L
Solid core surface [cm2]40 cm²
Solid core surface [in2]6.12 in²
Solid core volume [cm3]13 cm³
Solid core volume [in3]0.82 in³
Temperature range [°C] [max]70 °C
Temperature range [°C] [min]-40 °C
Temperature range [°F] [max]160 °F
Temperature range [°F] [min]-40 °F
TypeDCL
Type designationDCL 1.52/2.8mmS
UL approval file nameSA6398
UL approved refrigerantsR125
R134a
R22
R23
R404A
R407A
R407C
R407F
R410A
R422B
R422D
R438A
R448A
R449A
R449B
R450A
R452A
R507A
R513A
Acid capacity [g]0.33 g
Acid capacity [oz]0.012 oz
Activated alum/Molec sieve [%]20% / 80%
ApprovalUL
Body materialSteel
BraketNo
BrandELIMINATOR
Connection materialCopper
CoreSolid core
Core Size code1.5 cu.in
Drying Cap[Drops of Water]24°CR134a: 47
Drying Cap[Drops of Water]52°CR134a: 43
EU RoHS complianceYes with exemptions
Flow direction indicatorLabel printed 1-way arrow
Fluid Group2
In scope of WEEE and contain batteriesNo
Inlet 1 connection size [in]1/4 in
Inlet connection typeSolder, ODF
LiqCap Cond (ARI 710-2009)[SI]Delta p=0.07bar
tliq= 30°C
tvap=-15°C
LiqCapCond (ARI 710-2009)[IMP]Delta p=1psi
tliq= 86°F
tvap=5°F
Lubricants compatibilityOilfree applications
Max. Working Pressure [bar]46 bar
Max. Working Pressure [psig]667 psig
Net volume [foz US]1.16 Fluid Ounce US
Net volume [l]0.034 L
Oil free refrigerantsR1234ze(E)
R134a
R513A
R515A
Outlet connection size [mm]2.8 mm
Outlet connection typeSolder, ODF
Packing formatMulti pack
PED categoryArt. 4, par. 3
Product descriptionLiquid line filter drier
Product groupFilter driers
Product Name DescriptionHermetic filter drier
Quantity per packing format32 pc
REACH Candidate List substancesNo
RefrigerantsR1234yf
R125
R134a
R22/R407C
R23
R290
R32
R404A
R407A
R407F
R410A
R422B
R422D
R438A
R444B
R448A
R449A
R449B
R450A
R452A
R452B
R454B
R455A
R507A
R513A
R600
R1234ze(E)
R1233zd(E)
R407H
R454A
R463A
R515B
R516A
R454C
ServiceableNo
Shell volume [foz US]1.61 Fluid Ounce US
Shell volume [l]0.05 L
Solid core surface [cm2]40 cm²
Solid core surface [in2]6.12 in²
Solid core volume [cm3]13 cm³
Solid core volume [in3]0.82 in³
Temperature range [°C] [max]70 °C
Temperature range [°C] [min]-40 °C
Temperature range [°F] [max]160 °F
Temperature range [°F] [min]-40 °F
TypeDCL
Type designationDCL 1.52/2.8mmS
UL approval file nameSA6398
UL approved refrigerantsR125
R134a
R22
R23
R404A
R407A
R407C
R407F
R410A
R422B
R422D
R438A
R448A
R449A
R449B
R450A
R452A
R507A
R513A

DATASHEET - PDF

Title
Size
Type
023Z8255 023Z8255 ES_023Z4570.pdf
2 Mbytes
PDF CATALOGUE DANFOSS REFRIGERATION AND AIRCONDITIONING EN
11 Mbytes
