023Z506891
DANFOSS REFRIGERATION
1
Home > DANFOSS REFRIGERATION
* Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS REFRIGERATION
Thank you for your interest in our products; we hope the delivery time indicated is to your convenience.
While the order is being processed you can select the type of shipment that best suits your needs: 24-hour air express, standard 48-72 hour land, etc.
Inlet connection type: SOLDER, ODF, Outlet connection type: SOLDER, ODF, Core Size code: 16 cu.in.
Gross weight | 0.75 kg |
Net weight | 0.66 kg |
EAN | 5702428650380 |
Gross weight | 0.75 kg |
Net weight | 0.66 kg |
EAN | 5702428650380 |
Acid capacity [g] | 1.2 g |
Acid capacity [oz] | 0.042 oz |
Activated alum/Molec sieve [%] | 0% / 100% |
Approval | UL |
Body material | Steel |
Brand | ELIMINATOR |
Category | Art. 3, par. 3 |
Connection material | Copper |
Core | Solid core |
Core Size code | 16 cu.in. |
Drying Cap[Drops of Water]24°C | R134a: 559 R290: -- R32: 470 R404A: 582 R407C: 543 R410A: 506 R507: 610 |
Drying Cap[Drops of Water]52°C | R134a: 512 R290: -- R404A: 551 R407C: 500 R410A: 450 R507: 548 R32: 433 |
Flow capacity [kW] | R134a: 38.7 R290: 46.6 R32: 58.9 R404A: 27.2 R407C: 39.6 R410A: 40.2 R507: 26.4 |
Flow capacity [TR] | R134a: 11.0 R290: 13.2 R32: 16.8 R404A: 7.7 R407C: 11.3 R410A: 11.4 R507: 7.5 |
Flow direction indicator | Label printed 1-way arrow |
Fluid Group | II |
Inlet 1 connection size [in] | 5/8 in |
Inlet connection type | SOLDER, ODF |
LiqCap Cond (ARI 710-2009)[SI] | Delta p=0.07bar tliq= 30°C tvap=-15°C |
LiqCapCond (ARI 710-2009)[IMP] | Delta p=1psi tliq= 86°F tvap=5°F |
Lubricants compatibility | Oilfree applications |
Max. Working Pressure [bar] | 46 bar |
Max. Working Pressure [psig] | 667 psig |
Net volume [foz US] | 7.63 oz |
Net volume [l] | 0.226 L |
Oil free refrigerants | R1234ze(E) R134a R513A R515A |
Outlet 1 connection size [in] | 5/8 in |
Outlet connection type | SOLDER, ODF |
Packing format | Multi pack |

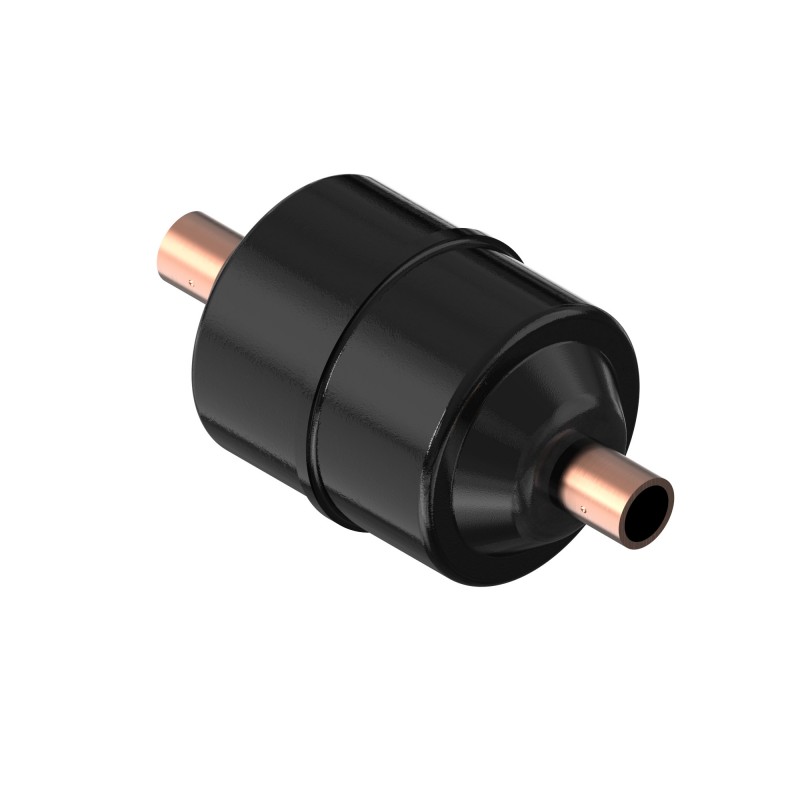

Product description | Liquid line filter drier |
Product group | Filter driers |
Product name | Hermetic filter drier |
Quantity per packing format | 12 pc |
Refrigerant oil compatibility | Oilfree applications R1234ze(E) R134a R513A R515A |
Refrigerants | R1234yf R125 R134a R22/R407C R23 R290 R32 R404A R407A R407F R410A R422B R422D R438A R444B R448A R449A R449B R450A R452A R452B R454B R455A R507A R513A R600 R1234ze(E) |
Serviceable | No |
Shell volume [foz US] | 11.97 oz |
Shell volume [l] | 0.35 L |
Solid core surface [cm2] | 183 cm² |
Solid core surface [in2] | 28.34 in² |
Solid core volume [cm3] | 128 cm³ |
Solid core volume [in3] | 7.84 in³ |
Specification key | DML 165S |
Temperature range [°C] [Max] | 70 °C |
Temperature range [°C] [Min] | -40 °C |
Temperature range [°F] [Max] | 160 °F |
Temperature range [°F] [Min] | -40 °F |
Type | DML |
Type designation | DML 165S |
UL approval file name | SA6398 |
UL approved refrigerants | R125 R134a R22 R23 R404A R407A R407C R407F R410A R422B R422D R438A R448A R449A R449B R450A R452A R507A R513A |
Acid capacity [g] | 1.2 g |
Acid capacity [oz] | 0.042 oz |
Activated alum/Molec sieve [%] | 0% / 100% |
Approval | UL |
Body material | Steel |
Brand | ELIMINATOR |
Category | Art. 3, par. 3 |
Connection material | Copper |
Core | Solid core |
Core Size code | 16 cu.in. |
Drying Cap[Drops of Water]24°C | R134a: 559 R290: -- R32: 470 R404A: 582 R407C: 543 R410A: 506 R507: 610 |
Drying Cap[Drops of Water]52°C | R134a: 512 R290: -- R404A: 551 R407C: 500 R410A: 450 R507: 548 R32: 433 |
Flow capacity [kW] | R134a: 38.7 R290: 46.6 R32: 58.9 R404A: 27.2 R407C: 39.6 R410A: 40.2 R507: 26.4 |
Flow capacity [TR] | R134a: 11.0 R290: 13.2 R32: 16.8 R404A: 7.7 R407C: 11.3 R410A: 11.4 R507: 7.5 |
Flow direction indicator | Label printed 1-way arrow |
Fluid Group | II |
Inlet 1 connection size [in] | 5/8 in |
Inlet connection type | SOLDER, ODF |
LiqCap Cond (ARI 710-2009)[SI] | Delta p=0.07bar tliq= 30°C tvap=-15°C |
LiqCapCond (ARI 710-2009)[IMP] | Delta p=1psi tliq= 86°F tvap=5°F |
Lubricants compatibility | Oilfree applications |
Max. Working Pressure [bar] | 46 bar |
Max. Working Pressure [psig] | 667 psig |
Net volume [foz US] | 7.63 oz |
Net volume [l] | 0.226 L |
Oil free refrigerants | R1234ze(E) R134a R513A R515A |
Outlet 1 connection size [in] | 5/8 in |
Outlet connection type | SOLDER, ODF |
Packing format | Multi pack |
Product description | Liquid line filter drier |
Product group | Filter driers |
Product name | Hermetic filter drier |
Quantity per packing format | 12 pc |
Refrigerant oil compatibility | Oilfree applications R1234ze(E) R134a R513A R515A |
Refrigerants | R1234yf R125 R134a R22/R407C R23 R290 R32 R404A R407A R407F R410A R422B R422D R438A R444B R448A R449A R449B R450A R452A R452B R454B R455A R507A R513A R600 R1234ze(E) |
Serviceable | No |
Shell volume [foz US] | 11.97 oz |
Shell volume [l] | 0.35 L |
Solid core surface [cm2] | 183 cm² |
Solid core surface [in2] | 28.34 in² |
Solid core volume [cm3] | 128 cm³ |
Solid core volume [in3] | 7.84 in³ |
Specification key | DML 165S |
Temperature range [°C] [Max] | 70 °C |
Temperature range [°C] [Min] | -40 °C |
Temperature range [°F] [Max] | 160 °F |
Temperature range [°F] [Min] | -40 °F |
Type | DML |
Type designation | DML 165S |
UL approval file name | SA6398 |
UL approved refrigerants | R125 R134a R22 R23 R404A R407A R407C R407F R410A R422B R422D R438A R448A R449A R449B R450A R452A R507A R513A |
Title: | Size: | Type: |
---|---|---|
023Z506891 ES_023Z506891.pdf | 2 Mbytes |
