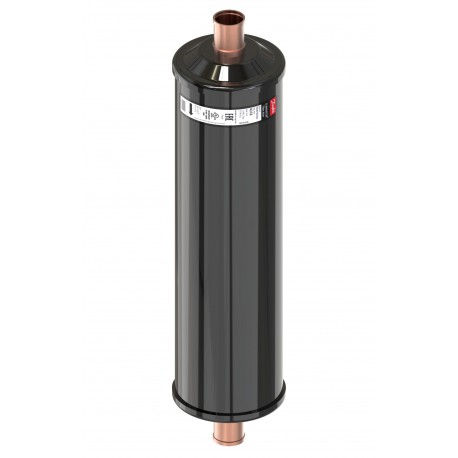

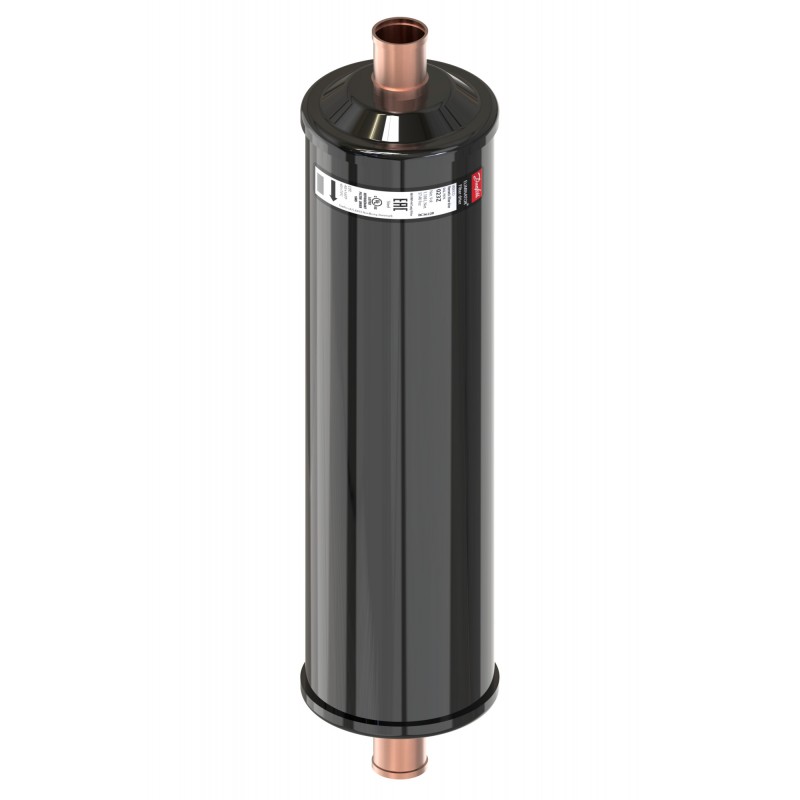

023Z4905 DANFOSS REFRIGERATION Hermetic filter drier, DML
023Z4905
DANFOSS REFRIGERATION
4
Hermetic filter drier, DML
Hermetic filter drier, DML, 75 cu.in., Steel Cu-plated
Home > DANFOSS REFRIGERATION
Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS REFRIGERATION
Best sellers
▲More info
▲Inlet connection type: Solder, ODF, Outlet connection type: Solder, ODF, Core Size code: 75 cu.in., Packing format: Industrial pack, Quantity per packing format: 4
Product details
| Gross weight | 3.374 Kilogram |
| Net weight | 3.054 Kilogram |
| Volume | 6.12 Liter |
| EAN | 5702428156134 |
| Type | DML |
| Product group | Filter driers |
| Product Name Description | Hermetic filter drier |
| Gross weight | 3.374 Kilogram |
| Net weight | 3.054 Kilogram |
| Volume | 6.12 Liter |
| EAN | 5702428156134 |
| Type | DML |
| Product group | Filter driers |
| Product Name Description | Hermetic filter drier |
| Acid capacity [g] | 6.55 g |
| Acid capacity [oz] | 0.231 oz |
| Activated alumina [%] | 0 % |
| Approval | UL |
| Body material | Steel |
| Braket | No |
| Brand | ELIMINATOR |
| China RoHS compliance | Yes |
| China RoHS exemption clause | No |
| Connection material | Steel Cu-plated |
| Contains batteries | No |
| Core | Solid core |
| Core Size code | 75 cu.in. |
| Core type | Solid core |
| Drying Cap[Drops of Water]24°C | R134a: 3043 R290: -- R32: -- R404A: 3170 R407C: 2955 R410A: 2755 R507: 3320 |
| Drying Cap[Drops of Water]52°C | R134a: 2786 R290: -- R32: -- R404A: 3003 R407C: 2724 R410A: 2450 R507: 2987 |
| EU RoHS compliance | Yes |
| EU RoHS exemption clause | No |
| Filter application | High Moisture Capacity |
| Flow capacity [kW] | R134a: 82.2 R290: -- R32: 125.2 R404A: 57.8 R407C: 84.2 R410A: 85.5 R507: 56.1 |
| Flow capacity [TR] | R134a: 23.4 R290: -- R32: 35.6 R404A: 16.4 R407C: 23.9 R410A: 24.3 R507: 15.9 |
| Flow direction indicator | Label printed 1-way arrow |
| Fluid Group | 2 |
| Identical product | 023Z4605 |
| Inlet 1 connection size [in] | 7/8 in |
| Inlet connection type | Solder, ODF |
| LiqCap Cond (ARI 710-2009)[SI] | Delta p=0.07bar tliq= 30°C tvap=-15°C |
| LiqCapCond (ARI 710-2009)[IMP] | Delta p=1psi tliq= 86°F tvap=5°F |
| Lubricants compatibility | Oilfree applications |
| Max. Working Pressure [bar] | 46 bar |
| Max. Working Pressure [psig] | 667 psig |
| Molecular sieve [%] | 100 % |
| Net volume [foz US] | 37.46 Fluid Ounce US |
| Net volume [l] | 1.108 L |
| Oil free refrigerants | R1234ze(E) R134a R513A R515A |
| Outlet 1 connection size [in] | 7/8 in |
| Outlet connection type | Solder, ODF |
| Packing format | Industrial pack |
| PED category | Art. 4, par. 3 |
| Product description | Liquid line filter drier |
| Quantity per packing format | 4 pc |
| REACH Candidate List substances | No |
| Refrigerants | R1233zd(E) R1234yf R1234ze(E) R125 R134a R22/R407C R23 R290 R32 R404A R407A R407F R407H R410A R422B R422D R438A R444B R448A R449A R449B R450A R452A R452B R454B R455A R463A R507A R513A R515B R600 |
| Serviceable | No |
| Shell volume [foz US] | 61.49 Fluid Ounce US |
| Shell volume [l] | 1.82 L |
| Solid core surface [cm2] | 829 cm² |
| Solid core surface [in2] | 128.53 in² |
| Solid core volume [cm3] | 711 cm³ |
| Solid core volume [in3] | 43.37 in³ |
| Temperature range [°C] [max] | 70 °C |
| Temperature range [°C] [min] | -40 °C |
| Temperature range [°F] [max] | 160 °F |
| Temperature range [°F] [min] | -40 °F |
| Type designation | DML 757S |
| UL approval file name | SA6398 |
| UL approved refrigerants | R125 R134a R22 R23 R404A R407A R407C R407F R410A R422B R422D R438A R448A R449A R449B R450A R452A R507A R513A |
| UL evaluated | Yes |
| Acid capacity [g] | 6.55 g |
| Acid capacity [oz] | 0.231 oz |
| Activated alumina [%] | 0 % |
| Approval | UL |
| Body material | Steel |
| Braket | No |
| Brand | ELIMINATOR |
| China RoHS compliance | Yes |
| China RoHS exemption clause | No |
| Connection material | Steel Cu-plated |
| Contains batteries | No |
| Core | Solid core |
| Core Size code | 75 cu.in. |
| Core type | Solid core |
| Drying Cap[Drops of Water]24°C | R134a: 3043 R290: -- R32: -- R404A: 3170 R407C: 2955 R410A: 2755 R507: 3320 |
| Drying Cap[Drops of Water]52°C | R134a: 2786 R290: -- R32: -- R404A: 3003 R407C: 2724 R410A: 2450 R507: 2987 |
| EU RoHS compliance | Yes |
| EU RoHS exemption clause | No |
| Filter application | High Moisture Capacity |
| Flow capacity [kW] | R134a: 82.2 R290: -- R32: 125.2 R404A: 57.8 R407C: 84.2 R410A: 85.5 R507: 56.1 |
| Flow capacity [TR] | R134a: 23.4 R290: -- R32: 35.6 R404A: 16.4 R407C: 23.9 R410A: 24.3 R507: 15.9 |
| Flow direction indicator | Label printed 1-way arrow |
| Fluid Group | 2 |
| Identical product | 023Z4605 |
| Inlet 1 connection size [in] | 7/8 in |
| Inlet connection type | Solder, ODF |
| LiqCap Cond (ARI 710-2009)[SI] | Delta p=0.07bar tliq= 30°C tvap=-15°C |
| LiqCapCond (ARI 710-2009)[IMP] | Delta p=1psi tliq= 86°F tvap=5°F |
| Lubricants compatibility | Oilfree applications |
| Max. Working Pressure [bar] | 46 bar |
| Max. Working Pressure [psig] | 667 psig |
| Molecular sieve [%] | 100 % |
| Net volume [foz US] | 37.46 Fluid Ounce US |
| Net volume [l] | 1.108 L |
| Oil free refrigerants | R1234ze(E) R134a R513A R515A |
| Outlet 1 connection size [in] | 7/8 in |
| Outlet connection type | Solder, ODF |
| Packing format | Industrial pack |
| PED category | Art. 4, par. 3 |
| Product description | Liquid line filter drier |
| Quantity per packing format | 4 pc |
| REACH Candidate List substances | No |
| Refrigerants | R1233zd(E) R1234yf R1234ze(E) R125 R134a R22/R407C R23 R290 R32 R404A R407A R407F R407H R410A R422B R422D R438A R444B R448A R449A R449B R450A R452A R452B R454B R455A R463A R507A R513A R515B R600 |
| Serviceable | No |
| Shell volume [foz US] | 61.49 Fluid Ounce US |
| Shell volume [l] | 1.82 L |
| Solid core surface [cm2] | 829 cm² |
| Solid core surface [in2] | 128.53 in² |
| Solid core volume [cm3] | 711 cm³ |
| Solid core volume [in3] | 43.37 in³ |
| Temperature range [°C] [max] | 70 °C |
| Temperature range [°C] [min] | -40 °C |
| Temperature range [°F] [max] | 160 °F |
| Temperature range [°F] [min] | -40 °F |
| Type designation | DML 757S |
| UL approval file name | SA6398 |
| UL approved refrigerants | R125 R134a R22 R23 R404A R407A R407C R407F R410A R422B R422D R438A R448A R449A R449B R450A R452A R507A R513A |
| UL evaluated | Yes |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE DANFOSS REFRIGERATION AND AIRCONDITIONING EN.pdf | 11 Mbytes |
|
| 023Z4905 023Z4905 ES_023Z4570.pdf | 2 Mbytes |
|
