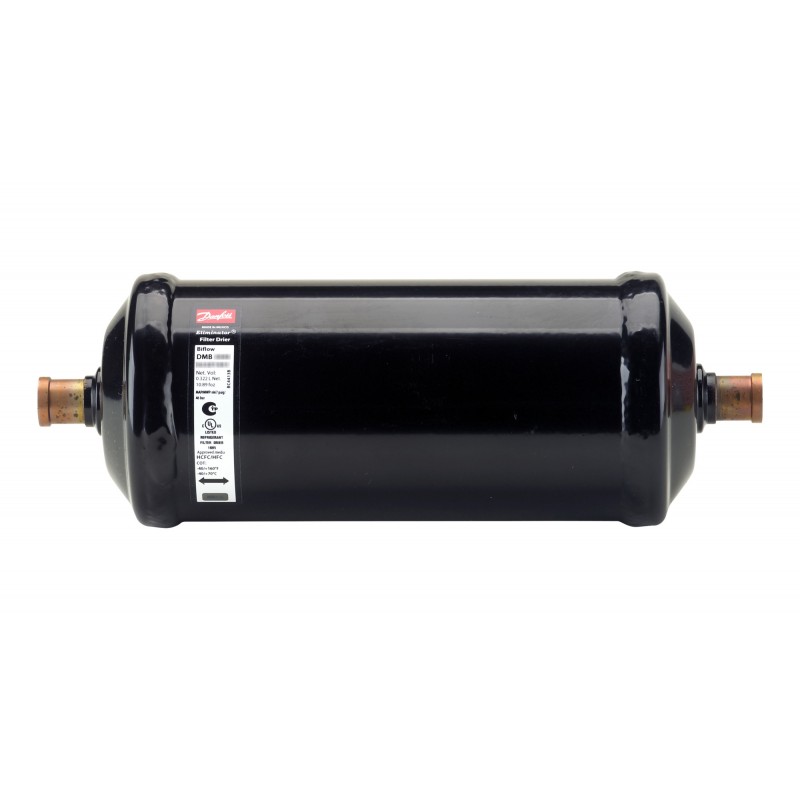

023Z1493 DANFOSS REFRIGERATION Hermetic bi-flow filter drier, DMB
023Z1493
DANFOSS REFRIGERATION
8
Hermetic bi-flow filter drier, DMB
Hermetic bi-flow filter drier, DMB, 30 cu.in., Steel Cu-plated
Home > DANFOSS REFRIGERATION
Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS REFRIGERATION
Best sellers
▲More info
▲Inlet connection type: Solder, ODF, Outlet connection type: Solder, ODF, Core Size code: 30 cu.in.
Product details
| Gross weight | 1.491 Kilogram |
| Net weight | 1.444 Kilogram |
| Volume | 2.812 Liter |
| EAN | 5702428158220 |
| Type | DMB |
| Product group | Filter driers |
| Product Name Description | Hermetic bi-flow filter drier |
| Gross weight | 1.491 Kilogram |
| Net weight | 1.444 Kilogram |
| Volume | 2.812 Liter |
| EAN | 5702428158220 |
| Type | DMB |
| Product group | Filter driers |
| Product Name Description | Hermetic bi-flow filter drier |
| Acid capacity [g] | 1.77 g |
| Acid capacity [oz] | 0.062 oz |
| Activated alumina [%] | 0 % |
| Approval | UL |
| Body material | Steel |
| Braket | No |
| Brand | ELIMINATOR |
| China RoHS compliance | Yes |
| China RoHS exemption clause | No |
| Connection material | Steel Cu-plated |
| Contains batteries | No |
| Core Size code | 30 cu.in. |
| Core type | Solid core |
| Drying Cap[Drops of Water]24°C | R134a: 821 R290: -- R32: 691 R404A: 855 R407C: 798 R410A: 744 R507: 896 |
| Drying Cap[Drops of Water]52°C | R134a: 752 R290: -- R32: 636 R404A: 810 R407C: 735 R410A: 661 R507: 806 |
| EU RoHS compliance | Yes |
| EU RoHS exemption clause | No |
| Filter application | High Moisture Capacity |
| Inlet 1 connection size [in] | 1 1/8 in |
| Inlet connection type | Solder, ODF |
| LiqCap Cond (ARI 710-2009)[SI] | Delta p=0.07bar tliq= 30°C tvap=-15°C |
| LiqCapCond (ARI 710-2009)[IMP] | Delta p=1psi tliq= 86°F tvap=5°F |
| Lubricants compatibility | Oilfree applications |
| Max. Working Pressure [bar] | 46 bar |
| Max. Working Pressure [psig] | 667 psig |
| Molecular sieve [%] | 100 % |
| Net volume [foz US] | 16.95 Fluid Ounce US |
| Net volume [l] | 0.501 L |
| Oil free refrigerants | R1234ze(E) R134a R513A R515A |
| Outlet 1 connection size [in] | 1 1/8 in |
| Outlet connection type | Solder, ODF |
| Packing format | Industrial pack |
| PED category | Art. 4, par. 3 |
| Product description | Biflow filter drier |
| Quantity per packing format | 8 pc |
| REACH Candidate List substances | No |
| Refrigerants | R1233zd(E) R125 R134a R22/R407C R23 R404A R407A R407F R407H R410A R422B R422D R438A R448A R449A R449B R452A R455A R463A R507A R513A R515B |
| Serviceable | No |
| Shell volume [foz US] | 24.73 Fluid Ounce US |
| Shell volume [l] | 0.73 L |
| Solid core surface [cm2] | 275 cm² |
| Solid core surface [in2] | 42.6 in² |
| Solid core volume [cm3] | 204 cm³ |
| Solid core volume [in3] | 12.43 in³ |
| Temperature range [°C] [max] | 70 °C |
| Temperature range [°C] [min] | -40 °C |
| Temperature range [°F] [max] | 160 °F |
| Temperature range [°F] [min] | -40 °F |
| Type designation | DMB 309S |
| UL approved refrigerants | R125 R134a R22 R23 R404A R407A R407C R407F R410A R422B R422D R438A R448A R449A R449B R452A R507A R513A |
| UL mark | Yes |
| Acid capacity [g] | 1.77 g |
| Acid capacity [oz] | 0.062 oz |
| Activated alumina [%] | 0 % |
| Approval | UL |
| Body material | Steel |
| Braket | No |
| Brand | ELIMINATOR |
| China RoHS compliance | Yes |
| China RoHS exemption clause | No |
| Connection material | Steel Cu-plated |
| Contains batteries | No |
| Core Size code | 30 cu.in. |
| Core type | Solid core |
| Drying Cap[Drops of Water]24°C | R134a: 821 R290: -- R32: 691 R404A: 855 R407C: 798 R410A: 744 R507: 896 |
| Drying Cap[Drops of Water]52°C | R134a: 752 R290: -- R32: 636 R404A: 810 R407C: 735 R410A: 661 R507: 806 |
| EU RoHS compliance | Yes |
| EU RoHS exemption clause | No |
| Filter application | High Moisture Capacity |
| Inlet 1 connection size [in] | 1 1/8 in |
| Inlet connection type | Solder, ODF |
| LiqCap Cond (ARI 710-2009)[SI] | Delta p=0.07bar tliq= 30°C tvap=-15°C |
| LiqCapCond (ARI 710-2009)[IMP] | Delta p=1psi tliq= 86°F tvap=5°F |
| Lubricants compatibility | Oilfree applications |
| Max. Working Pressure [bar] | 46 bar |
| Max. Working Pressure [psig] | 667 psig |
| Molecular sieve [%] | 100 % |
| Net volume [foz US] | 16.95 Fluid Ounce US |
| Net volume [l] | 0.501 L |
| Oil free refrigerants | R1234ze(E) R134a R513A R515A |
| Outlet 1 connection size [in] | 1 1/8 in |
| Outlet connection type | Solder, ODF |
| Packing format | Industrial pack |
| PED category | Art. 4, par. 3 |
| Product description | Biflow filter drier |
| Quantity per packing format | 8 pc |
| REACH Candidate List substances | No |
| Refrigerants | R1233zd(E) R125 R134a R22/R407C R23 R404A R407A R407F R407H R410A R422B R422D R438A R448A R449A R449B R452A R455A R463A R507A R513A R515B |
| Serviceable | No |
| Shell volume [foz US] | 24.73 Fluid Ounce US |
| Shell volume [l] | 0.73 L |
| Solid core surface [cm2] | 275 cm² |
| Solid core surface [in2] | 42.6 in² |
| Solid core volume [cm3] | 204 cm³ |
| Solid core volume [in3] | 12.43 in³ |
| Temperature range [°C] [max] | 70 °C |
| Temperature range [°C] [min] | -40 °C |
| Temperature range [°F] [max] | 160 °F |
| Temperature range [°F] [min] | -40 °F |
| Type designation | DMB 309S |
| UL approved refrigerants | R125 R134a R22 R23 R404A R407A R407C R407F R410A R422B R422D R438A R448A R449A R449B R452A R507A R513A |
| UL mark | Yes |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE DANFOSS REFRIGERATION AND AIRCONDITIONING EN.pdf | 11 Mbytes |
|
| 023Z1493 023Z1493 DE_023Z1403.pdf | 891 Kbytes |
|
