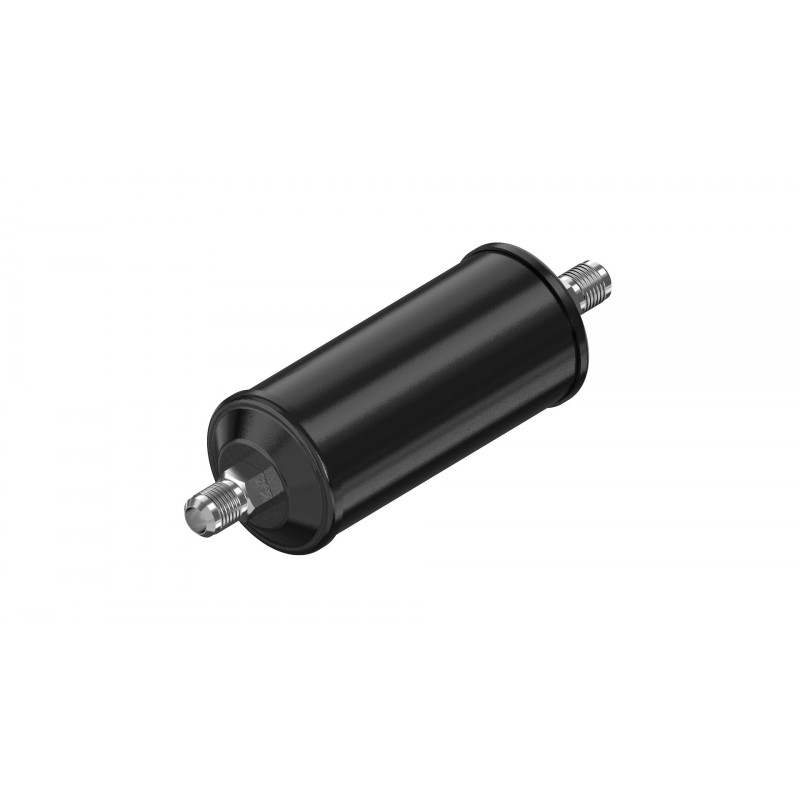

DANFOSS REFRIGERATION 023Z0156 023Z0156 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

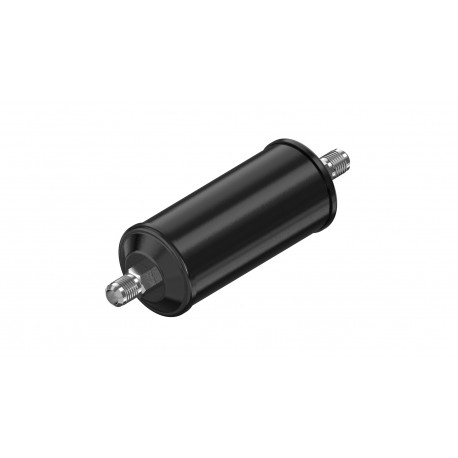

023Z0156 DANFOSS REFRIGERATION Hermetic filter drier, DCL

Name: 023Z0156 DANFOSS REFRIGERATION Hermetic filter drier, DCL
Brand: DANFOSS REFRIGERATION
SKU: DAO023Z0156
Price: 64.66 USD
Availability: OutOfStock

Reference: 023Z0156

Manufacturer: DANFOSS REFRIGERATION

Description:

Hermetic filter drier, DCL

Filter drier DCL 306 M/8

Hermetic filter drier, DCL, 30 cu.in., Steel

Categories:

DANFOSS REFRIGERATION

Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS REFRIGERATION

More Info
PDF
Reviews

Guarantee, repair and return.

Unit Price: 57,76 €

This price is per unit and is the net value (not including taxes if applicable).

Special discounts for registered customers.Login or register and prices will be updated.

Calculate price by quantity

Quantity	Price

Standard lead time: 4-5 days.

These delivery times are an estimate any may vary when the item order has been processed.
You will be notified of any change to delivery times once the order has been processed.
To this delivery time you have to add the time of transport from our logistics centre to your company.

LAST VIEWED

MORE INFO

Inlet connection type: Flare, Outlet connection type: Flare, Core Size code: 30 cu.in., Packing format: Multi pack, Quantity per packing format: 8

Product details

Gross weight	1.588 Kilogram
Net weight	1.448 Kilogram
Volume	1.942 Liter
EAN	5702428159234

Type	DCL
Product group	Filter driers
Product Name Description	Hermetic filter drier

Gross weight	1.588 Kilogram
Net weight	1.448 Kilogram
Volume	1.942 Liter
EAN	5702428159234
Type	DCL
Product group	Filter driers
Product Name Description	Hermetic filter drier

Acid capacity [g]	6.23 g
Acid capacity [oz]	0.22 oz
Activated alumina [%]	20 %
Approval	UL
Body material	Steel
Braket	No
Brand	ELIMINATOR
China RoHS compliance	Yes
China RoHS exemption clause	No
Connection material	Steel
Contains batteries	No
Core	Solid core
Core Size code	30 cu.in.
Core type	Solid core
Drying Cap[Drops of Water]24°C	R134a: 888 R290: -- R32: 748 R404A: 925 R407C: 863 R410A: 804 R507: 969
Drying Cap[Drops of Water]52°C	R134a: 813 R290: -- R32: 688 R404A: 877 R407C: 795 R410A: 715 R507: 872
EU RoHS compliance	Yes
EU RoHS exemption clause	No
Filter application	Std Moisture & Acid Capacity
Flow capacity [kW]	R134a: 59.0 R290: -- R32: 89.9 R404A: 41.5 R407C: 60.4 R410A: 61.4 R507: 40.2
Flow capacity [TR]	R134a: 16.8 R290: -- R32: 25.6 R404A: 11.8 R407C: 17.2 R410A: 17.4 R507: 11.4
Flow direction indicator	Label printed 1-way arrow
Fluid Group	2
Inlet 1 connection size [in]	3/4 in
Inlet connection size [mm]	19 mm
Inlet connection type	Flare
LiqCap Cond (ARI 710-2009)[SI]	Delta p=0.07bar tliq= 30°C tvap=-15°C
LiqCapCond (ARI 710-2009)[IMP]	Delta p=1psi tliq= 86°F tvap=5°F
Lubricants compatibility	Oilfree applications
Max. Working Pressure [bar]	46 bar

Max. Working Pressure [psig]	667 psig
Molecular sieve [%]	80 %
Net volume [foz US]	15.68 Fluid Ounce US
Net volume [l]	0.464 L
Oil free refrigerants	R1234ze(E) R134a R513A R515A
Outlet 1 connection size [in]	3/4 in
Outlet connection size [mm]	19 mm
Outlet connection type	Flare
Packing format	Multi pack
PED category	Art. 4, par. 3
Product accessories	Generic accessories
Product description	Liquid line filter drier
Quantity per packing format	8 pc
REACH Candidate List substances	No
Refrigerants	R1233zd(E) R1234yf R1234ze(E) R125 R134a R22/R407C R23 R32 R404A R407A R407F R407H R410A R422B R422D R438A R444B R448A R449A R449B R450A R452A R452B R454A R454B R454C R455A R463A R507A R513A R515B R516A
Serviceable	No
Shell volume [foz US]	24.42 Fluid Ounce US
Shell volume [l]	0.72 L
Solid core surface [cm2]	340 cm²
Solid core surface [in2]	52.7 in²
Solid core volume [cm3]	258 cm³
Solid core volume [in3]	15.77 in³
Temperature range [°C] [max]	70 °C
Temperature range [°C] [min]	-40 °C
Temperature range [°F] [max]	160 °F
Temperature range [°F] [min]	-40 °F
Type designation	DCL 306
UL approval file name	SA6398
UL approved refrigerants	R125 R134a R22 R23 R404A R407A R407C R407F R410A R422B R422D R438A R448A R449A R449B R450A R452A R507A R513A
UL mark	Yes

Acid capacity [g]	6.23 g
Acid capacity [oz]	0.22 oz
Activated alumina [%]	20 %
Approval	UL
Body material	Steel
Braket	No
Brand	ELIMINATOR
China RoHS compliance	Yes
China RoHS exemption clause	No
Connection material	Steel
Contains batteries	No
Core	Solid core
Core Size code	30 cu.in.
Core type	Solid core
Drying Cap[Drops of Water]24°C	R134a: 888 R290: -- R32: 748 R404A: 925 R407C: 863 R410A: 804 R507: 969
Drying Cap[Drops of Water]52°C	R134a: 813 R290: -- R32: 688 R404A: 877 R407C: 795 R410A: 715 R507: 872
EU RoHS compliance	Yes
EU RoHS exemption clause	No
Filter application	Std Moisture & Acid Capacity
Flow capacity [kW]	R134a: 59.0 R290: -- R32: 89.9 R404A: 41.5 R407C: 60.4 R410A: 61.4 R507: 40.2
Flow capacity [TR]	R134a: 16.8 R290: -- R32: 25.6 R404A: 11.8 R407C: 17.2 R410A: 17.4 R507: 11.4
Flow direction indicator	Label printed 1-way arrow
Fluid Group	2
Inlet 1 connection size [in]	3/4 in
Inlet connection size [mm]	19 mm
Inlet connection type	Flare
LiqCap Cond (ARI 710-2009)[SI]	Delta p=0.07bar tliq= 30°C tvap=-15°C
LiqCapCond (ARI 710-2009)[IMP]	Delta p=1psi tliq= 86°F tvap=5°F
Lubricants compatibility	Oilfree applications
Max. Working Pressure [bar]	46 bar
Max. Working Pressure [psig]	667 psig
Molecular sieve [%]	80 %
Net volume [foz US]	15.68 Fluid Ounce US
Net volume [l]	0.464 L
Oil free refrigerants	R1234ze(E) R134a R513A R515A
Outlet 1 connection size [in]	3/4 in
Outlet connection size [mm]	19 mm
Outlet connection type	Flare
Packing format	Multi pack
PED category	Art. 4, par. 3
Product accessories	Generic accessories
Product description	Liquid line filter drier
Quantity per packing format	8 pc
REACH Candidate List substances	No
Refrigerants	R1233zd(E) R1234yf R1234ze(E) R125 R134a R22/R407C R23 R32 R404A R407A R407F R407H R410A R422B R422D R438A R444B R448A R449A R449B R450A R452A R452B R454A R454B R454C R455A R463A R507A R513A R515B R516A
Serviceable	No
Shell volume [foz US]	24.42 Fluid Ounce US
Shell volume [l]	0.72 L
Solid core surface [cm2]	340 cm²
Solid core surface [in2]	52.7 in²
Solid core volume [cm3]	258 cm³
Solid core volume [in3]	15.77 in³
Temperature range [°C] [max]	70 °C
Temperature range [°C] [min]	-40 °C
Temperature range [°F] [max]	160 °F
Temperature range [°F] [min]	-40 °F
Type designation	DCL 306
UL approval file name	SA6398
UL approved refrigerants	R125 R134a R22 R23 R404A R407A R407C R407F R410A R422B R422D R438A R448A R449A R449B R450A R452A R507A R513A
UL mark	Yes
