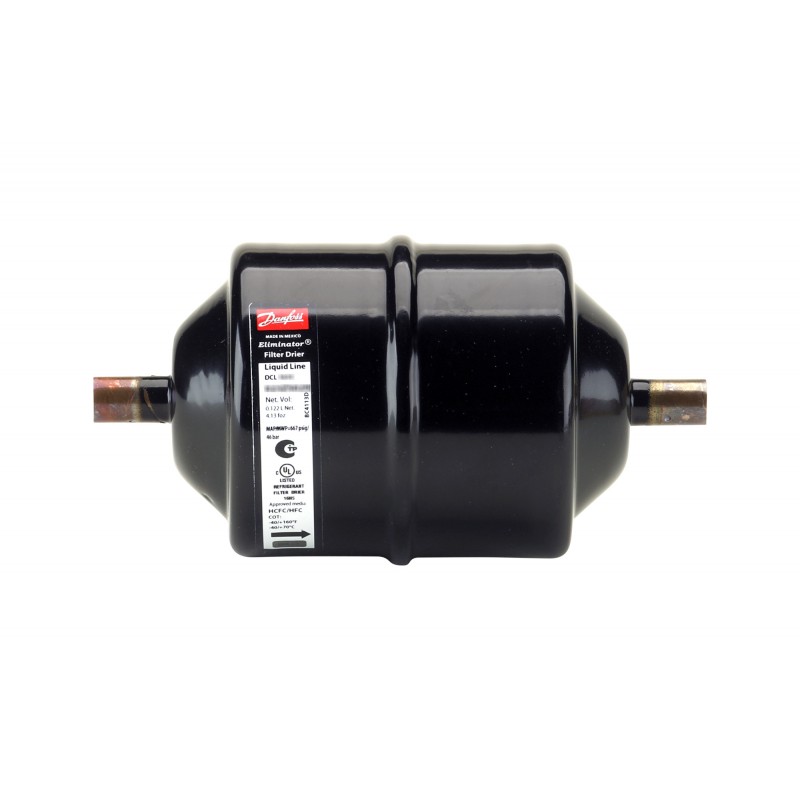

DANFOSS REFRIGERATION 023Z0116 023Z0116 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

023Z0116 DANFOSS REFRIGERATION Hermetic filter drier

Name: 023Z0116 DANFOSS REFRIGERATION Hermetic filter drier
Brand: DANFOSS REFRIGERATION
SKU: DAO023Z0116
Price: 112.82 USD
Availability: OutOfStock

Reference: 023Z0116

Manufacturer: DANFOSS REFRIGERATION

Description:

Hermetic filter drier

Filter drier DCL 759S M/12

Hermetic filter drier, DCL, 75 cu.in., Copper

Categories:

DANFOSS REFRIGERATION

Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS REFRIGERATION

More Info
Reviews

Guarantee, repair and return.

Unit Price: 100,79 €

This price is per unit and is the net value (not including taxes if applicable).

Special discounts for registered customers.Login or register and prices will be updated.

Calculate price by quantity

Quantity	Price

Standard lead time: 4-5 days.

These delivery times are an estimate any may vary when the item order has been processed.
You will be notified of any change to delivery times once the order has been processed.
To this delivery time you have to add the time of transport from our logistics centre to your company.

LAST VIEWED

MORE INFO

Inlet connection type: Solder, ODF, Outlet connection type: Solder, ODF, Core Size code: 75 cu.in., Packing format: Multi pack, Quantity per packing format: 12

Product details

Gross weight	3.45 Kilogram
Net weight	3.45 Kilogram
Volume	4.263 Liter
EAN	5702428159371

Type	DCL
Product group	Filter driers
Product Name Description	Hermetic filter drier

Gross weight	3.45 Kilogram
Net weight	3.45 Kilogram
Volume	4.263 Liter
EAN	5702428159371
Type	DCL
Product group	Filter driers
Product Name Description	Hermetic filter drier

Acid capacity [g]	16.98 g
Acid capacity [oz]	0.599 oz
Activated alumina [%]	20 %
Approval	UL
Body material	Steel
Braket	No
Brand	ELIMINATOR
China RoHS compliance	Yes
China RoHS exemption clause	No
Connection material	Copper
Contains batteries	No
Core	Solid core
Core Size code	75 cu.in.
Core type	Solid core
Drying Cap[Drops of Water]24°C	R134a: 2421 R290: -- R32: -- R404A: 2522 R407C: 2351 R410A: 2192 R507: 2641
Drying Cap[Drops of Water]52°C	R134a: 2216 R290: -- R32: -- R404A: 2389 R407C: 2167 R410A: 1949 R507: 2376
EU RoHS compliance	Yes
EU RoHS exemption clause	No
Filter application	Std Moisture & Acid Capacity
Flow capacity [kW]	R134a: 98.6 R290: -- R32: 150.3 R404A: 69.4 R407C: 101.1 R410A: 102.6 R507: 67.3
Flow capacity [TR]	R134a: 28.0 R290: -- R32: 42.7 R404A: 19.7 R407C: 28.7 R410A: 29.2 R507: 19.1
Flow direction indicator	Label printed 1-way arrow
Fluid Group	2
Inlet 1 connection size [in]	1 1/8 in
Inlet connection type	Solder, ODF
LiqCap Cond (ARI 710-2009)[SI]	Delta p=0.07bar tliq= 30°C tvap=-15°C
LiqCapCond (ARI 710-2009)[IMP]	Delta p=1psi tliq= 86°F tvap=5°F
Lubricants compatibility	Oilfree applications
Max. Working Pressure [bar]	30 bar

Max. Working Pressure [psig]	435 psig
Molecular sieve [%]	80 %
Net volume [foz US]	37.46 Fluid Ounce US
Net volume [l]	1.108 L
Oil free refrigerants	R1234ze(E) R134a R513A R515A
Outlet 1 connection size [in]	1 1/8 in
Outlet connection type	Solder, ODF
Packing format	Multi pack
PED category	Art. 4, par. 3
Product accessories	No
Product description	Liquid line filter drier
Quantity per packing format	12 pc
REACH Candidate List substances	No
Refrigerants	R1233zd(E) R125 R134a R22/R407C R23 R404A R407A R407F R407H R410A R422B R422D R438A R448A R449A R449B R452A R463A R507A R513A R515B
Serviceable	No
Shell volume [foz US]	61.49 Fluid Ounce US
Shell volume [l]	1.82 L
Solid core surface [cm2]	829 cm²
Solid core surface [in2]	128.53 in²
Solid core volume [cm3]	711 cm³
Solid core volume [in3]	43.37 in³
Temperature range [°C] [max]	70 °C
Temperature range [°C] [min]	-40 °C
Temperature range [°F] [max]	160 °F
Temperature range [°F] [min]	-40 °F
Type designation	DCL 759S
UL approval file name	SA6398
UL approved refrigerants	R125 R134a R22 R23 R404A R407A R407C R407F R410A R422B R422D R438A R448A R449A R449B R452A R507A R513A
UL mark	Yes

Acid capacity [g]	16.98 g
Acid capacity [oz]	0.599 oz
Activated alumina [%]	20 %
Approval	UL
Body material	Steel
Braket	No
Brand	ELIMINATOR
China RoHS compliance	Yes
China RoHS exemption clause	No
Connection material	Copper
Contains batteries	No
Core	Solid core
Core Size code	75 cu.in.
Core type	Solid core
Drying Cap[Drops of Water]24°C	R134a: 2421 R290: -- R32: -- R404A: 2522 R407C: 2351 R410A: 2192 R507: 2641
Drying Cap[Drops of Water]52°C	R134a: 2216 R290: -- R32: -- R404A: 2389 R407C: 2167 R410A: 1949 R507: 2376
EU RoHS compliance	Yes
EU RoHS exemption clause	No
Filter application	Std Moisture & Acid Capacity
Flow capacity [kW]	R134a: 98.6 R290: -- R32: 150.3 R404A: 69.4 R407C: 101.1 R410A: 102.6 R507: 67.3
Flow capacity [TR]	R134a: 28.0 R290: -- R32: 42.7 R404A: 19.7 R407C: 28.7 R410A: 29.2 R507: 19.1
Flow direction indicator	Label printed 1-way arrow
Fluid Group	2
Inlet 1 connection size [in]	1 1/8 in
Inlet connection type	Solder, ODF
LiqCap Cond (ARI 710-2009)[SI]	Delta p=0.07bar tliq= 30°C tvap=-15°C
LiqCapCond (ARI 710-2009)[IMP]	Delta p=1psi tliq= 86°F tvap=5°F
Lubricants compatibility	Oilfree applications
Max. Working Pressure [bar]	30 bar
Max. Working Pressure [psig]	435 psig
Molecular sieve [%]	80 %
Net volume [foz US]	37.46 Fluid Ounce US
Net volume [l]	1.108 L
Oil free refrigerants	R1234ze(E) R134a R513A R515A
Outlet 1 connection size [in]	1 1/8 in
Outlet connection type	Solder, ODF
Packing format	Multi pack
PED category	Art. 4, par. 3
Product accessories	No
Product description	Liquid line filter drier
Quantity per packing format	12 pc
REACH Candidate List substances	No
Refrigerants	R1233zd(E) R125 R134a R22/R407C R23 R404A R407A R407F R407H R410A R422B R422D R438A R448A R449A R449B R452A R463A R507A R513A R515B
Serviceable	No
Shell volume [foz US]	61.49 Fluid Ounce US
Shell volume [l]	1.82 L
Solid core surface [cm2]	829 cm²
Solid core surface [in2]	128.53 in²
Solid core volume [cm3]	711 cm³
Solid core volume [in3]	43.37 in³
Temperature range [°C] [max]	70 °C
Temperature range [°C] [min]	-40 °C
Temperature range [°F] [max]	160 °F
Temperature range [°F] [min]	-40 °F
Type designation	DCL 759S
UL approval file name	SA6398
UL approved refrigerants	R125 R134a R22 R23 R404A R407A R407C R407F R410A R422B R422D R438A R448A R449A R449B R452A R507A R513A
UL mark	Yes
