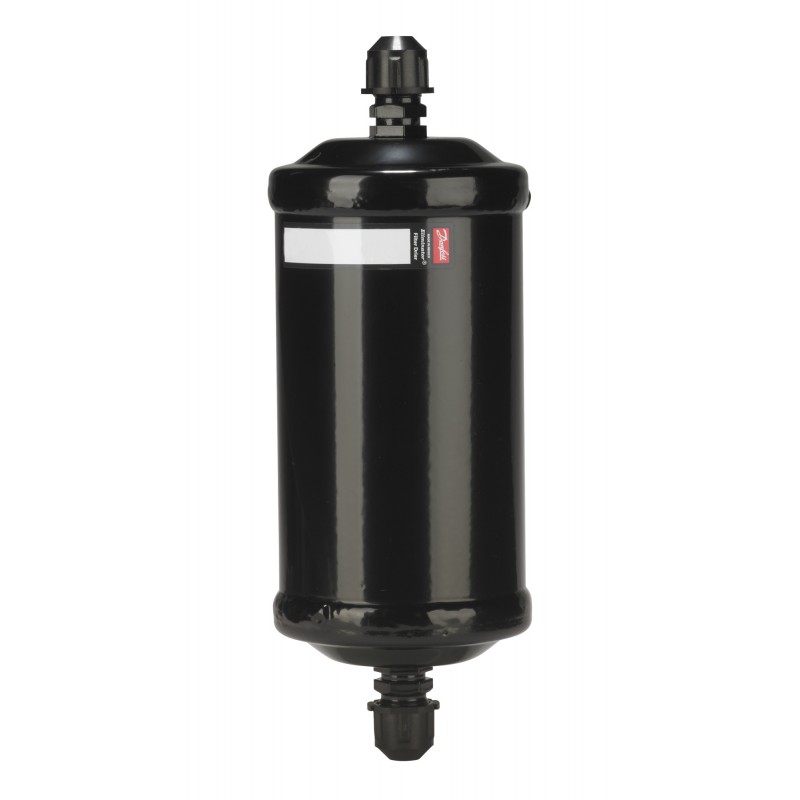

023Z0102 DANFOSS REFRIGERATION Hermetic filter drier, DCL
023Z0102
DANFOSS REFRIGERATION
Hermetic filter drier, DCL
Filter drier DCL 414 M/8
Hermetic filter drier, DCL, 41 cu.in., Steel
Home > DANFOSS REFRIGERATION
Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS REFRIGERATION
Best sellers
▲More info
▲Inlet connection type: Flare, Outlet connection type: Flare, Core Size code: 41 cu.in., Packing format: Multi pack, Quantity per packing format: 8
Product details
| Gross weight | 1.958 Kilogram |
| Net weight | 1.89 Kilogram |
| Volume | 2.764 Liter |
| EAN | 5702428159500 |
| Type | DCL |
| Product group | Filter driers |
| Product Name Description | Hermetic filter drier |
| Gross weight | 1.958 Kilogram |
| Net weight | 1.89 Kilogram |
| Volume | 2.764 Liter |
| EAN | 5702428159500 |
| Type | DCL |
| Product group | Filter driers |
| Product Name Description | Hermetic filter drier |
| Acid capacity [g] | 8.49 g |
| Acid capacity [oz] | 0.299 oz |
| Activated alumina [%] | 20 % |
| Approval | UL |
| Body material | Steel |
| Braket | No |
| Brand | ELIMINATOR |
| China RoHS compliance | Yes |
| China RoHS exemption clause | No |
| Connection material | Steel |
| Contains batteries | No |
| Core | Solid core |
| Core Size code | 41 cu.in. |
| Core type | Solid core |
| Drying Cap[Drops of Water]24°C | R134a: 1210 R290: -- R32: 1019 R404A: 1261 R407C: 1175 R410A: 1096 R507: 1321 |
| Drying Cap[Drops of Water]52°C | R134a: 1108 R290: -- R32: 937 R404A: 1194 R407C: 1083 R410A: 975 R507: 1188 |
| EU RoHS compliance | Yes |
| EU RoHS exemption clause | No |
| Filter application | Std Moisture & Acid Capacity |
| Flow capacity [kW] | R134a: 33.8 R290: -- R32: 51.6 R404A: 23.8 R407C: 34.7 R410A: 35.2 R507: 23.1 |
| Flow capacity [TR] | R134a: 9.6 R290: -- R32: 14.7 R404A: 6.8 R407C: 9.9 R410A: 10.0 R507: 6.6 |
| Flow direction indicator | Label printed 1-way arrow |
| Fluid Group | 2 |
| Inlet 1 connection size [in] | 1/2 in |
| Inlet connection size [mm] | 12 mm |
| Inlet connection type | Flare |
| LiqCap Cond (ARI 710-2009)[SI] | Delta p=0.07bar tliq= 30°C tvap=-15°C |
| LiqCapCond (ARI 710-2009)[IMP] | Delta p=1psi tliq= 86°F tvap=5°F |
| Lubricants compatibility | Oilfree applications |
| Max. Working Pressure [bar] | 46 bar |
| Max. Working Pressure [psig] | 667 psig |
| Molecular sieve [%] | 80 % |
| Net volume [foz US] | 20.97 Fluid Ounce US |
| Net volume [l] | 0.62 L |
| Oil free refrigerants | R1234ze(E) R134a R513A R515A |
| Outlet 1 connection size [in] | 1/2 in |
| Outlet connection size [mm] | 12 mm |
| Outlet connection type | Flare |
| Packing format | Multi pack |
| PED category | Art. 4, par. 3 |
| Product accessories | Generic accessories |
| Product description | Liquid line filter drier |
| Quantity per packing format | 8 pc |
| REACH Candidate List substances | No |
| Refrigerants | R1233zd(E) R1234yf R1234ze(E) R125 R134a R22/R407C R23 R32 R404A R407A R407F R407H R410A R422B R422D R438A R444B R448A R449A R449B R450A R452A R452B R454A R454B R454C R455A R463A R507A R513A R515B R516A |
| Serviceable | No |
| Shell volume [foz US] | 32.98 Fluid Ounce US |
| Shell volume [l] | 0.97 L |
| Solid core surface [cm2] | 415 cm² |
| Solid core surface [in2] | 64.26 in² |
| Solid core volume [cm3] | 355 cm³ |
| Solid core volume [in3] | 21.69 in³ |
| Temperature range [°C] [max] | 70 °C |
| Temperature range [°C] [min] | -40 °C |
| Temperature range [°F] [max] | 160 °F |
| Temperature range [°F] [min] | -40 °F |
| Type designation | DCL 414 |
| UL approval file name | SA6398 |
| UL approved refrigerants | R125 R134a R22 R23 R404A R407A R407C R407F R410A R422B R422D R438A R448A R449A R449B R450A R452A R507A R513A |
| UL mark | Yes |
| Acid capacity [g] | 8.49 g |
| Acid capacity [oz] | 0.299 oz |
| Activated alumina [%] | 20 % |
| Approval | UL |
| Body material | Steel |
| Braket | No |
| Brand | ELIMINATOR |
| China RoHS compliance | Yes |
| China RoHS exemption clause | No |
| Connection material | Steel |
| Contains batteries | No |
| Core | Solid core |
| Core Size code | 41 cu.in. |
| Core type | Solid core |
| Drying Cap[Drops of Water]24°C | R134a: 1210 R290: -- R32: 1019 R404A: 1261 R407C: 1175 R410A: 1096 R507: 1321 |
| Drying Cap[Drops of Water]52°C | R134a: 1108 R290: -- R32: 937 R404A: 1194 R407C: 1083 R410A: 975 R507: 1188 |
| EU RoHS compliance | Yes |
| EU RoHS exemption clause | No |
| Filter application | Std Moisture & Acid Capacity |
| Flow capacity [kW] | R134a: 33.8 R290: -- R32: 51.6 R404A: 23.8 R407C: 34.7 R410A: 35.2 R507: 23.1 |
| Flow capacity [TR] | R134a: 9.6 R290: -- R32: 14.7 R404A: 6.8 R407C: 9.9 R410A: 10.0 R507: 6.6 |
| Flow direction indicator | Label printed 1-way arrow |
| Fluid Group | 2 |
| Inlet 1 connection size [in] | 1/2 in |
| Inlet connection size [mm] | 12 mm |
| Inlet connection type | Flare |
| LiqCap Cond (ARI 710-2009)[SI] | Delta p=0.07bar tliq= 30°C tvap=-15°C |
| LiqCapCond (ARI 710-2009)[IMP] | Delta p=1psi tliq= 86°F tvap=5°F |
| Lubricants compatibility | Oilfree applications |
| Max. Working Pressure [bar] | 46 bar |
| Max. Working Pressure [psig] | 667 psig |
| Molecular sieve [%] | 80 % |
| Net volume [foz US] | 20.97 Fluid Ounce US |
| Net volume [l] | 0.62 L |
| Oil free refrigerants | R1234ze(E) R134a R513A R515A |
| Outlet 1 connection size [in] | 1/2 in |
| Outlet connection size [mm] | 12 mm |
| Outlet connection type | Flare |
| Packing format | Multi pack |
| PED category | Art. 4, par. 3 |
| Product accessories | Generic accessories |
| Product description | Liquid line filter drier |
| Quantity per packing format | 8 pc |
| REACH Candidate List substances | No |
| Refrigerants | R1233zd(E) R1234yf R1234ze(E) R125 R134a R22/R407C R23 R32 R404A R407A R407F R407H R410A R422B R422D R438A R444B R448A R449A R449B R450A R452A R452B R454A R454B R454C R455A R463A R507A R513A R515B R516A |
| Serviceable | No |
| Shell volume [foz US] | 32.98 Fluid Ounce US |
| Shell volume [l] | 0.97 L |
| Solid core surface [cm2] | 415 cm² |
| Solid core surface [in2] | 64.26 in² |
| Solid core volume [cm3] | 355 cm³ |
| Solid core volume [in3] | 21.69 in³ |
| Temperature range [°C] [max] | 70 °C |
| Temperature range [°C] [min] | -40 °C |
| Temperature range [°F] [max] | 160 °F |
| Temperature range [°F] [min] | -40 °F |
| Type designation | DCL 414 |
| UL approval file name | SA6398 |
| UL approved refrigerants | R125 R134a R22 R23 R404A R407A R407C R407F R410A R422B R422D R438A R448A R449A R449B R450A R452A R507A R513A |
| UL mark | Yes |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE DANFOSS REFRIGERATION AND AIRCONDITIONING EN.pdf | 11 Mbytes |
|
| 023Z0102 023Z0102 ES_023Z4570.pdf | 2 Mbytes |
|
