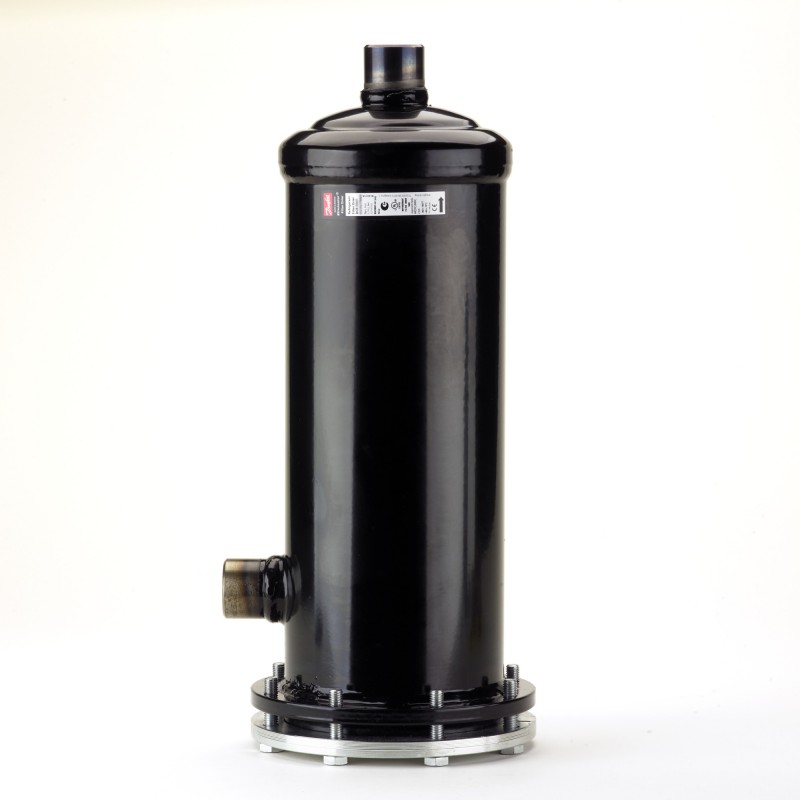

023U7464 DANFOSS REFRIGERATION Filter drier, shell, DCR
023U7464
DANFOSS REFRIGERATION
Filter drier, shell, DCR
DCR Filter 09617 Assy.
Home > DANFOSS REFRIGERATION
Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS REFRIGERATION
Best sellers
▲More info
▲Core Size code: 96 cu.in., Connection material: Steel, Connection Solder size [in]: 2 1/8 in, Connection Solder size [mm]: 54
Product details
| Gross weight | 8.441 Kilogram |
| Net weight | 6.608 Kilogram |
| Volume | 20.339 Liter |
| EAN | 5702428202329 |
| Type | DCR |
| Product group | Filter driers |
| Product Name Description | Filter drier, shell |
| Gross weight | 8.441 Kilogram |
| Net weight | 6.608 Kilogram |
| Volume | 20.339 Liter |
| EAN | 5702428202329 |
| Type | DCR |
| Product group | Filter driers |
| Product Name Description | Filter drier, shell |
| Body material | Steel |
| Braket | No |
| Brand | ELIMINATOR |
| CE mark | Yes |
| China RoHS compliance | Yes |
| China RoHS exemption clause | No |
| Connection material | Steel |
| Connection Solder size [in] | 2 1/8 in |
| Connection Solder size [mm] | 54 mm |
| Connection standard | ANSI/ASME B36.10M |
| Connection type | Butt weld/Solder, ODF |
| Connection Weld size [in] | 2 in |
| Contains batteries | No |
| Core Size code | 96 cu.in. |
| Cover | Plug |
| EU RoHS compliance | Yes |
| EU RoHS exemption clause | No |
| Flow direction indicator | Label printed 1-way arrow |
| Fluid Group | 2 |
| Liq Cap [Kw] | R1234ze: 317.8 R134a: 358.0 R404A: 251.8 R407C: 366.9 R410A: 372.5 R452A: 255.0 R507: 244.2 |
| Liq Cap [TR] | R1234ze: 90.4 R134a: 101.8 R404A: 71.6 R407C: 104.3 R410A: 105.9 R452A: 72.5 R507: 69.4 |
| LiqCap Cond (ARI 710-2009)[SI] | Delta p=0.07bar tliq= 30°C tvap=-15°C |
| LiqCapCond (ARI 710-2009)[IMP] | Delta p=1psi tliq= 86°F tvap=5°F |
| Lubricants compatibility | Oilfree applications |
| Max. Working Pressure [bar] | 46 bar |
| Max. Working Pressure [psig] | 667 psig |
| Net volume [foz US] | 85.05 Fluid Ounce US |
| Net volume [l] | 2.515 L |
| Number of cores | 2 |
| Oil free refrigerants | R134a R513A R515A |
| Packing format | Single pack |
| Parts included | 1 cov 4 felt gaskets 8 Bolts |
| Parts Program name | DCR |
| PED category | I |
| Product accessories | DCR accessories |
| Product description | Refrigerant Filter Drier |
| Quantity per packing format | 1 pc |
| REACH Candidate List substances | No |
| Refrigerants | R1234ze(E) R125 R134a R22/R407C R23 R404A R407A R407F R410A R438A R448A R449A R449B R450A R452A R507A R513A |
| Serviceable | DCR spare parts |
| Shell volume [foz US] | 114.48 Fluid Ounce US |
| Shell volume [l] | 3.38 L |
| Temperature range [°C] [max] | 70 °C |
| Temperature range [°C] [min] | -40 °C |
| Temperature range [°F] [max] | 160 °F |
| Temperature range [°F] [min] | -40 °F |
| Type designation | DCR 09617 |
| UL approval file name | SA6398 |
| UL approved refrigerants | R125 R134a R22 R23 R404A R407A R407C R407F R410A R438A R448A R449A R449B R450A R452A R507A R513A |
| UL mark | Yes |
| Body material | Steel |
| Braket | No |
| Brand | ELIMINATOR |
| CE mark | Yes |
| China RoHS compliance | Yes |
| China RoHS exemption clause | No |
| Connection material | Steel |
| Connection Solder size [in] | 2 1/8 in |
| Connection Solder size [mm] | 54 mm |
| Connection standard | ANSI/ASME B36.10M |
| Connection type | Butt weld/Solder, ODF |
| Connection Weld size [in] | 2 in |
| Contains batteries | No |
| Core Size code | 96 cu.in. |
| Cover | Plug |
| EU RoHS compliance | Yes |
| EU RoHS exemption clause | No |
| Flow direction indicator | Label printed 1-way arrow |
| Fluid Group | 2 |
| Liq Cap [Kw] | R1234ze: 317.8 R134a: 358.0 R404A: 251.8 R407C: 366.9 R410A: 372.5 R452A: 255.0 R507: 244.2 |
| Liq Cap [TR] | R1234ze: 90.4 R134a: 101.8 R404A: 71.6 R407C: 104.3 R410A: 105.9 R452A: 72.5 R507: 69.4 |
| LiqCap Cond (ARI 710-2009)[SI] | Delta p=0.07bar tliq= 30°C tvap=-15°C |
| LiqCapCond (ARI 710-2009)[IMP] | Delta p=1psi tliq= 86°F tvap=5°F |
| Lubricants compatibility | Oilfree applications |
| Max. Working Pressure [bar] | 46 bar |
| Max. Working Pressure [psig] | 667 psig |
| Net volume [foz US] | 85.05 Fluid Ounce US |
| Net volume [l] | 2.515 L |
| Number of cores | 2 |
| Oil free refrigerants | R134a R513A R515A |
| Packing format | Single pack |
| Parts included | 1 cov 4 felt gaskets 8 Bolts |
| Parts Program name | DCR |
| PED category | I |
| Product accessories | DCR accessories |
| Product description | Refrigerant Filter Drier |
| Quantity per packing format | 1 pc |
| REACH Candidate List substances | No |
| Refrigerants | R1234ze(E) R125 R134a R22/R407C R23 R404A R407A R407F R410A R438A R448A R449A R449B R450A R452A R507A R513A |
| Serviceable | DCR spare parts |
| Shell volume [foz US] | 114.48 Fluid Ounce US |
| Shell volume [l] | 3.38 L |
| Temperature range [°C] [max] | 70 °C |
| Temperature range [°C] [min] | -40 °C |
| Temperature range [°F] [max] | 160 °F |
| Temperature range [°F] [min] | -40 °F |
| Type designation | DCR 09617 |
| UL approval file name | SA6398 |
| UL approved refrigerants | R125 R134a R22 R23 R404A R407A R407C R407F R410A R438A R448A R449A R449B R450A R452A R507A R513A |
| UL mark | Yes |
