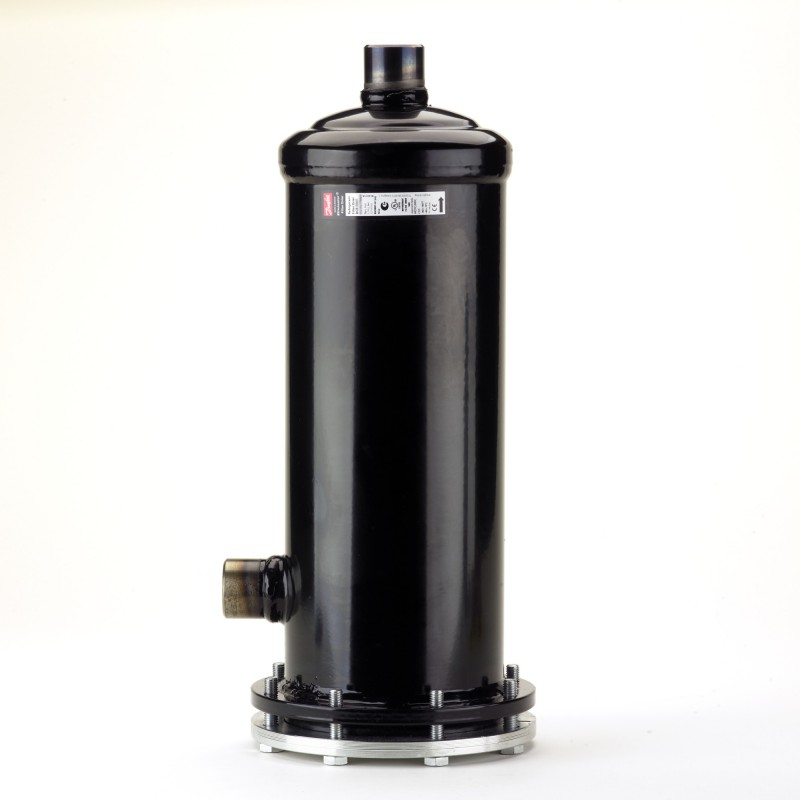

023U7459 DANFOSS REFRIGERATION Filter drier, shell, DCR
Reference: 023U7459
Manufacturer: DANFOSS REFRIGERATION
Description:
Filter drier, shell, DCR
DCR Filter 0969 Assy.
Categories:
- DANFOSS REFRIGERATION
Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS REFRIGERATION
- More Info
- Reviews
* This article may be obsolete. Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.
Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.
- These delivery times are an estimate any may vary when the item order has been processed.
MORE INFO
Core Size code: 96 cu.in., Connection material: Steel, Connection Solder size [mm]: 28
Product details
| Gross weight | 6.568 Kilogram |
| Net weight | 6.25 Kilogram |
| Volume | 20.339 Liter |
| EAN | 5702428202350 |
| Type | DCR |
| Product group | Filter driers |
| Product Name Description | Filter drier, shell |
| Gross weight | 6.568 Kilogram |
| Net weight | 6.25 Kilogram |
| Volume | 20.339 Liter |
| EAN | 5702428202350 |
| Type | DCR |
| Product group | Filter driers |
| Product Name Description | Filter drier, shell |
| Body material | Steel |
| Braket | No |
| Brand | ELIMINATOR |
| CE mark | Yes |
| China RoHS compliance | Yes |
| China RoHS exemption clause | No |
| Connection material | Steel |
| Connection Solder size [mm] | 28 mm |
| Connection standard | ANSI/ASME B36.10M |
| Connection type | Butt weld/Solder, ODF |
| Connection Weld size [in] | 1 in |
| Contains batteries | No |
| Core Size code | 96 cu.in. |
| Cover | Plug |
| EU RoHS compliance | Yes |
| EU RoHS exemption clause | No |
| Flow direction indicator | Label printed 1-way arrow |
| Fluid Group | 2 |
| Liq Cap [Kw] | R1234ze: 188.5 R134a: 212.3 R404A: 149.3 R407C: 217.6 R410A: 220.9 R452A: 151.2 R507: 144.8 |
| Liq Cap [TR] | R1234ze: 53.6 R134a: 60.4 R404A: 42.5 R407C: 61.9 R410A: 62.8 R452A: 43.0 R507: 41.2 |
| LiqCap Cond (ARI 710-2009)[SI] | Delta p=0.07bar tliq= 30°C tvap=-15°C |
| LiqCapCond (ARI 710-2009)[IMP] | Delta p=1psi tliq= 86°F tvap=5°F |
| Lubricants compatibility | Oilfree applications |
| Max. Working Pressure [bar] | 46 bar |
| Max. Working Pressure [psig] | 667 psig |
| Net volume [foz US] | 85.05 Fluid Ounce US |
| Net volume [l] | 2.515 L |
| Number of cores | 2 |
| Oil free refrigerants | R134a R513A R515A |
| Packing format | Single pack |
| Parts included | 1 cov 4 felt gaskets 8 Bolts |
| Parts Program name | DCR |
| PED category | I |
| Product accessories | DCR accessories |
| Product description | Refrigerant Filter Drier |
| Quantity per packing format | 1 pc |
| REACH Candidate List substances | No |
| Refrigerants | R1234ze(E) R125 R134a R22/R407C R23 R404A R407A R407F R410A R438A R448A R449A R449B R450A R452A R507A R513A |
| Serviceable | DCR spare parts |
| Shell volume [foz US] | 114.48 Fluid Ounce US |
| Shell volume [l] | 3.38 L |
| Temperature range [°C] [max] | 70 °C |
| Temperature range [°C] [min] | -40 °C |
| Temperature range [°F] [max] | 160 °F |
| Temperature range [°F] [min] | -40 °F |
| Type designation | DCR 0969 |
| UL approval file name | SA6398 |
| UL approved refrigerants | R125 R134a R22 R23 R404A R407A R407C R407F R410A R438A R448A R449A R449B R450A R452A R507A R513A |
| UL mark | Yes |
| Body material | Steel |
| Braket | No |
| Brand | ELIMINATOR |
| CE mark | Yes |
| China RoHS compliance | Yes |
| China RoHS exemption clause | No |
| Connection material | Steel |
| Connection Solder size [mm] | 28 mm |
| Connection standard | ANSI/ASME B36.10M |
| Connection type | Butt weld/Solder, ODF |
| Connection Weld size [in] | 1 in |
| Contains batteries | No |
| Core Size code | 96 cu.in. |
| Cover | Plug |
| EU RoHS compliance | Yes |
| EU RoHS exemption clause | No |
| Flow direction indicator | Label printed 1-way arrow |
| Fluid Group | 2 |
| Liq Cap [Kw] | R1234ze: 188.5 R134a: 212.3 R404A: 149.3 R407C: 217.6 R410A: 220.9 R452A: 151.2 R507: 144.8 |
| Liq Cap [TR] | R1234ze: 53.6 R134a: 60.4 R404A: 42.5 R407C: 61.9 R410A: 62.8 R452A: 43.0 R507: 41.2 |
| LiqCap Cond (ARI 710-2009)[SI] | Delta p=0.07bar tliq= 30°C tvap=-15°C |
| LiqCapCond (ARI 710-2009)[IMP] | Delta p=1psi tliq= 86°F tvap=5°F |
| Lubricants compatibility | Oilfree applications |
| Max. Working Pressure [bar] | 46 bar |
| Max. Working Pressure [psig] | 667 psig |
| Net volume [foz US] | 85.05 Fluid Ounce US |
| Net volume [l] | 2.515 L |
| Number of cores | 2 |
| Oil free refrigerants | R134a R513A R515A |
| Packing format | Single pack |
| Parts included | 1 cov 4 felt gaskets 8 Bolts |
| Parts Program name | DCR |
| PED category | I |
| Product accessories | DCR accessories |
| Product description | Refrigerant Filter Drier |
| Quantity per packing format | 1 pc |
| REACH Candidate List substances | No |
| Refrigerants | R1234ze(E) R125 R134a R22/R407C R23 R404A R407A R407F R410A R438A R448A R449A R449B R450A R452A R507A R513A |
| Serviceable | DCR spare parts |
| Shell volume [foz US] | 114.48 Fluid Ounce US |
| Shell volume [l] | 3.38 L |
| Temperature range [°C] [max] | 70 °C |
| Temperature range [°C] [min] | -40 °C |
| Temperature range [°F] [max] | 160 °F |
| Temperature range [°F] [min] | -40 °F |
| Type designation | DCR 0969 |
| UL approval file name | SA6398 |
| UL approved refrigerants | R125 R134a R22 R23 R404A R407A R407C R407F R410A R438A R448A R449A R449B R450A R452A R507A R513A |
| UL mark | Yes |
