DANFOSS REFRIGERATION 023U7454 023U7454 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

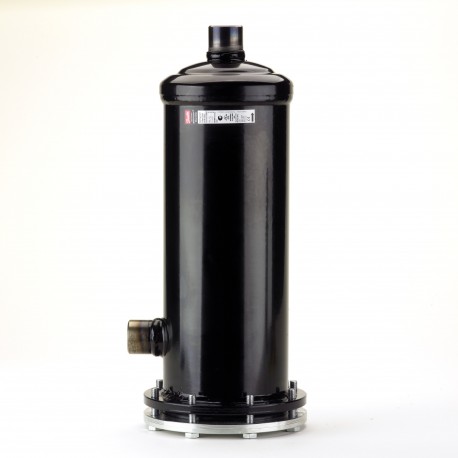

023U7454 DANFOSS REFRIGERATION Filter drier, shell, DCR

Name: 023U7454 DANFOSS REFRIGERATION Filter drier, shell, DCR
Brand: DANFOSS REFRIGERATION
SKU: DAO023U7454
Price: 138.85 USD
Availability: OutOfStock

Reference: 023U7454

Manufacturer: DANFOSS REFRIGERATION

Description:

Filter drier, shell, DCR

DCR Filter 04811 Assy.

Categories:

DANFOSS REFRIGERATION

Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS REFRIGERATION

More Info
PDF
Reviews

Guarantee, repair and return.

Unit Price: 124,04 €

This price is per unit and is the net value (not including taxes if applicable).

Special discounts for registered customers.Login or register and prices will be updated.

Calculate price by quantity

Quantity	Price

Standard lead time: 4-5 days.

These delivery times are an estimate any may vary when the item order has been processed.
You will be notified of any change to delivery times once the order has been processed.
To this delivery time you have to add the time of transport from our logistics centre to your company.

MORE INFO

Core Size code: 48 cu.in., Connection material: Steel, Connection Solder size [in]: 1 3/8 in, Connection Solder size [mm]: 35.00

Product details

Gross weight	5.038 Kg
Net weight	5 Kg

Volume	12.33 Liter
EAN	5702428202398

Gross weight	5.038 Kg
Net weight	5 Kg
Volume	12.33 Liter
EAN	5702428202398

Approval	CE CSA UL UKCA
Body material	Steel
Braket	No
Brand	ELIMINATOR
Connection material	Steel
Connection Solder size [in]	1 3/8 in
Connection Solder size [mm]	35 mm
Connection standard	ANSI/ASME B36.10M
Connection type	Butt weld/Solder, ODF
Core Size code	48 cu.in.
Cover	Plug
EU RoHS compliance	Yes with exemptions
Flow direction indicator	Label printed 1-way arrow
Fluid Group	2
In scope of WEEE and contain batteries	No
Liq Cap [Kw]	R1234ze: 182.0
Liq Cap [TR]	R1234ze: 51.8
LiqCap Cond (ARI 710-2009)[SI]	Delta p=0.07bar tliq= 30°C tvap=-15°C
LiqCapCond (ARI 710-2009)[IMP]	Delta p=1psi tliq= 86°F tvap=5°F
Lubricants compatibility	Oilfree applications
Max. Working Pressure [bar]	46 bar
Max. Working Pressure [psig]	667 psig
Net volume [foz US]	50.44 Fluid Ounce US
Net volume [l]	1.492 L
Number of cores	1

Oil free refrigerants	R134a R513A R515A
Packing format	Single pack
Parts included	1 cov 2 felt gaskets 8 Bolts
Parts Program name	DCR
PED category	I
Product accessories	DCR accessories
Product description	Refrigerant Filter Drier
Product group	Filter driers
Product Name Description	Filter drier, shell
Quantity per packing format	1 pc
REACH Candidate List substances	Lead (CAS no. 7439-92-1)
Refrigerants	R125 R134a R22/R407C R23 R404A R407A R407F R410A R438A R448A R449A R449B R450A R452A R507A R513A R1234ze(E)
SCIP dossier no.	c3a995ba-725e-4eb6-8b7e-6509f3eb9554
SCIP dossier product name	Filters
Serviceable	DCR spare parts
Shell volume [foz US]	65.76 Fluid Ounce US
Shell volume [l]	1.94 L
Temperature range [°C] [max]	70 °C
Temperature range [°C] [min]	-40 °C
Temperature range [°F] [max]	160 °F
Temperature range [°F] [min]	-40 °F
Type	DCR
Type designation	DCR 04811
UL approval file name	SA6398
UL approved refrigerants	R125 R134a R22 R23 R404A R407A R407C R407F R410A R438A R448A R449A R449B R450A R452A R507A R513A

Approval	CE CSA UL UKCA
Body material	Steel
Braket	No
Brand	ELIMINATOR
Connection material	Steel
Connection Solder size [in]	1 3/8 in
Connection Solder size [mm]	35 mm
Connection standard	ANSI/ASME B36.10M
Connection type	Butt weld/Solder, ODF
Core Size code	48 cu.in.
Cover	Plug
EU RoHS compliance	Yes with exemptions
Flow direction indicator	Label printed 1-way arrow
Fluid Group	2
In scope of WEEE and contain batteries	No
Liq Cap [Kw]	R1234ze: 182.0
Liq Cap [TR]	R1234ze: 51.8
LiqCap Cond (ARI 710-2009)[SI]	Delta p=0.07bar tliq= 30°C tvap=-15°C
LiqCapCond (ARI 710-2009)[IMP]	Delta p=1psi tliq= 86°F tvap=5°F
Lubricants compatibility	Oilfree applications
Max. Working Pressure [bar]	46 bar
Max. Working Pressure [psig]	667 psig
Net volume [foz US]	50.44 Fluid Ounce US
Net volume [l]	1.492 L
Number of cores	1
Oil free refrigerants	R134a R513A R515A
Packing format	Single pack
Parts included	1 cov 2 felt gaskets 8 Bolts
Parts Program name	DCR
PED category	I
Product accessories	DCR accessories
Product description	Refrigerant Filter Drier
Product group	Filter driers
Product Name Description	Filter drier, shell
Quantity per packing format	1 pc
REACH Candidate List substances	Lead (CAS no. 7439-92-1)
Refrigerants	R125 R134a R22/R407C R23 R404A R407A R407F R410A R438A R448A R449A R449B R450A R452A R507A R513A R1234ze(E)
SCIP dossier no.	c3a995ba-725e-4eb6-8b7e-6509f3eb9554
SCIP dossier product name	Filters
Serviceable	DCR spare parts
Shell volume [foz US]	65.76 Fluid Ounce US
Shell volume [l]	1.94 L
Temperature range [°C] [max]	70 °C
Temperature range [°C] [min]	-40 °C
Temperature range [°F] [max]	160 °F
Temperature range [°F] [min]	-40 °F
Type	DCR
Type designation	DCR 04811
UL approval file name	SA6398
UL approved refrigerants	R125 R134a R22 R23 R404A R407A R407C R407F R410A R438A R448A R449A R449B R450A R452A R507A R513A

DATASHEET - PDF

Title

Size

Type

023U7454 023U7454 EN_023U7454.pdf

1003 Kbytes

PDF CATALOGUE DANFOSS REFRIGERATION AND AIRCONDITIONING EN

11 Mbytes
