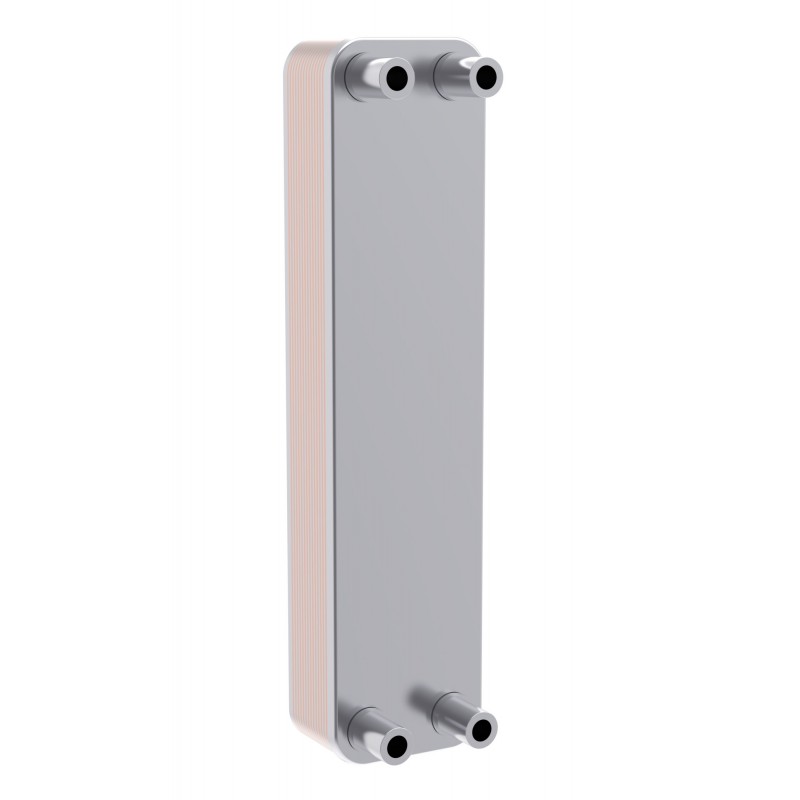

021H7871
DANFOSS REFRIGERATION
1
Home > DANFOSS REFRIGERATION
* Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS REFRIGERATION
Thank you for your interest in our products; we hope the delivery time indicated is to your convenience.
While the order is being processed you can select the type of shipment that best suits your needs: 24-hour air express, standard 48-72 hour land, etc.
Function: Evaporator, Max working pressure [psi]: 435, Number of plates: 22, Brazing material: Copper brazing
Gross weight | 1.806 Kg |
Net weight | 1.4 Kg |
Volume | 4.342 Liter |
EAN | 5702424259020 |
Gross weight | 1.806 Kg |
Net weight | 1.4 Kg |
Volume | 4.342 Liter |
EAN | 5702424259020 |
Application | Chiller |
Approval | EAC UL CRN KRAIA RoHS UA |
Brazing material | Copper brazing |
Design temperature range [°C] [max] | 200 °C |
Design temperature range [°C] [min] | -196 °C |
Design temperature range [°F] [max] | 320 °F |
Design temperature range [°F] [min] | -390 °F |
Equipment | Stud |
EU RoHS compliance | Yes |
Function | Evaporator |
H1 conn. type | External connection |
In scope of WEEE and contain batteries | No |
Max working pressure [psi] | 435 psi |
Max. Working Pressure [bar] | 30 bar |
Model no. | 22 |
Number of plates | 22 |
Packing format | Single pack |
Plate material no. | AISI 316L |
Plate material no. | AISI 316L |
Plate pattern | M |
Product group | Heat exchangers |
Product Name Description | Micro Plate heat exchanger |
Q1 conn. size range | G1/2 |
Q1 conn. type | G Internal thread connection |
Q2 conn. size range | G3/4 |
Q2 conn. type | G External thread connection |
Q3 conn. size range | 3/8 in |
Q3 conn. type | Solder connection |
Q4 conn. size range | 1/2 in |
Q4 conn. type | Solder connection |
Quantity per packing format | 1 pc |
REACH Candidate List substances | No |
Refrigerants | R134a R22 R407C R450A R455A R513A R600a R1233zd(E) R11 R113 R114 R12 R123 R1234yf R1234ze R124 R152a R227ea R245fa R401A R402A R402B R404A R407A R407B R407F R408A R409A R412A R413A R417A R422D R444B R448A R449A R452A R454C R500 R502 R507A R515B R508B |
Type | MPHE C22-E |
Type designation | C22-E |
Application | Chiller |
Approval | EAC UL CRN KRAIA RoHS UA |
Brazing material | Copper brazing |
Design temperature range [°C] [max] | 200 °C |
Design temperature range [°C] [min] | -196 °C |
Design temperature range [°F] [max] | 320 °F |
Design temperature range [°F] [min] | -390 °F |
Equipment | Stud |
EU RoHS compliance | Yes |
Function | Evaporator |
H1 conn. type | External connection |
In scope of WEEE and contain batteries | No |
Max working pressure [psi] | 435 psi |
Max. Working Pressure [bar] | 30 bar |
Model no. | 22 |
Number of plates | 22 |
Packing format | Single pack |
Plate material no. | AISI 316L |
Plate material no. | AISI 316L |
Plate pattern | M |
Product group | Heat exchangers |
Product Name Description | Micro Plate heat exchanger |
Q1 conn. size range | G1/2 |
Q1 conn. type | G Internal thread connection |
Q2 conn. size range | G3/4 |
Q2 conn. type | G External thread connection |
Q3 conn. size range | 3/8 in |
Q3 conn. type | Solder connection |
Q4 conn. size range | 1/2 in |
Q4 conn. type | Solder connection |
Quantity per packing format | 1 pc |
REACH Candidate List substances | No |
Refrigerants | R134a R22 R407C R450A R455A R513A R600a R1233zd(E) R11 R113 R114 R12 R123 R1234yf R1234ze R124 R152a R227ea R245fa R401A R402A R402B R404A R407A R407B R407F R408A R409A R412A R413A R417A R422D R444B R448A R449A R452A R454C R500 R502 R507A R515B R508B |
Type | MPHE C22-E |
Type designation | C22-E |
Title: | Size: | Type: |
---|---|---|
021H7871 021H7871 ES_021H7869.pdf | 1 Mbytes |
