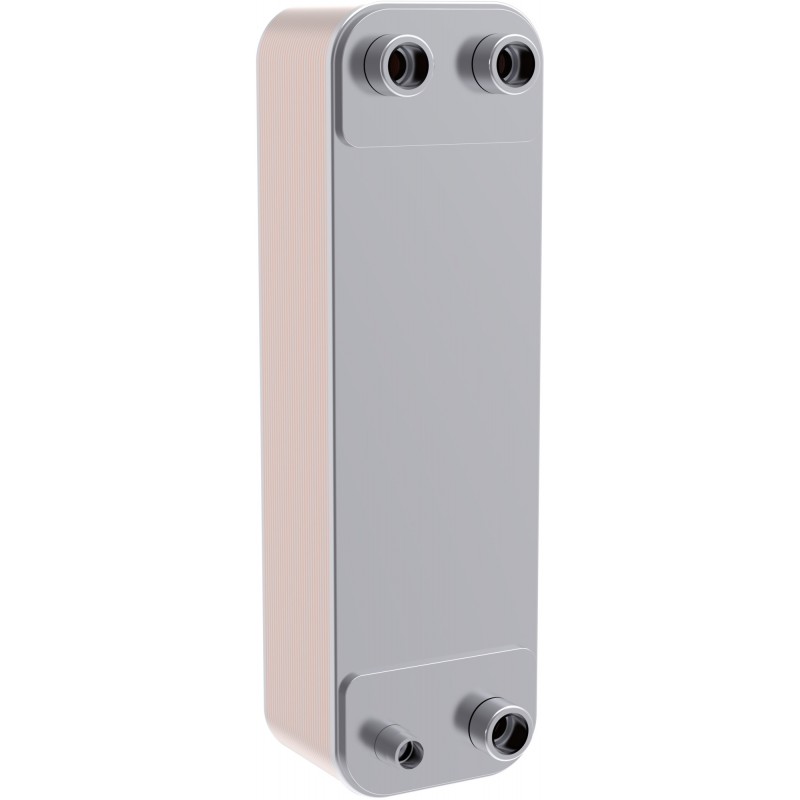

021H2747 DANFOSS REFRIGERATION Micro Plate heat exchanger D118L-80 (STDPG)
021H2747
DANFOSS REFRIGERATION
Micro Plate heat exchanger D118L-80 (STDPG)
Heat Exchanger D118L-80 (STDPG)
Home > DANFOSS REFRIGERATION
* Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS REFRIGERATION
More info
▲Product name: Micro Plate heat exchanger, Type: MPHE, Application: Universal application, Max working pressure [psi]: 653, Type designation: D118L, Number of plates: 80, Brazing material: Copper brazing
| Gross weight | 29.8 Kg |
| Net weight | 29.27 Kg |
| EAN | 5702425088704 |
| Application | Universal application |
| Approval | EAC LLC CDC EURO-TYSK PED UL |
| Brazing material | Copper brazing |
| Code No. | 021H2747 |
| Design temperature range [°C] [Max] | 200 °C |
| Design temperature range [°C] [Min] | -196 °C |
| Design temperature range [°F] [Max] | 320 °F |
| Design temperature range [°F] [Min] | -390 °F |
| Equipment | Stud |
| H1 conn. size | R1 1/2 |
| Max working pressure [psi] | 653 psi |
| Max. Working Pressure [bar] | 45 bar |
| Model no. | 118 |
| Number of plates | 80 |
| Packing format | Single pack |
| Plate material | AISI 316L |
| Plate pattern | Symmetric pattern, type M |
| Product Group | Heat exchangers |
| Product name | Micro Plate heat exchanger |
| Product type | MPHE |
| Q1 conn. size range | G2-1 5/8 in |
| Q1 conn. type | External thread connection |
| Q2 conn. size range | G2-1 5/8 in |
| Q2 conn. type | External connection |
| Q3 conn. size range | G2-1 5/8 in |
| Q3 conn. type | External connection |
| Q4 conn. size range | G2-1 5/8 in |
| Q4 conn. type | External connection |
| Quantity per packing format | 1 pc |
| Refrigerants | R1233zd R1234ze R1336mzz(Z) R134a R22 R290A R32 R404A R407A R407C R407F R407H R410A R438A R444B R448A R449A R450A R452A R452B R454B R455A R513A R513B R515A R600a |
| Type designation | D118L |
