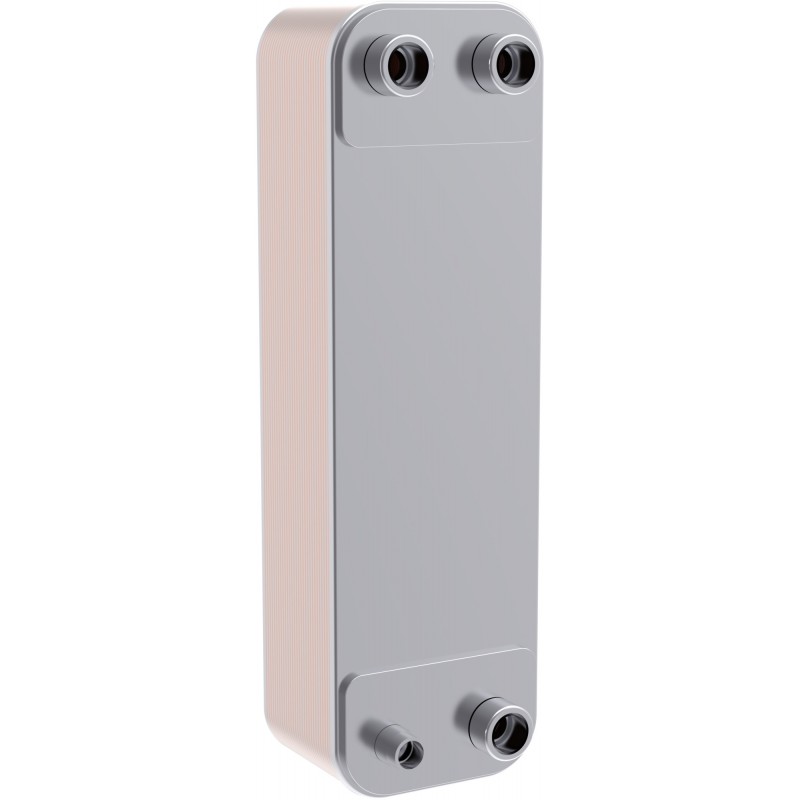

DANFOSS REFRIGERATION 021H2728 021H2728 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

021H2728 DANFOSS REFRIGERATION Micro Plate heat exchanger D118L-E-80 (STDPG)

Name: 021H2728 DANFOSS REFRIGERATION Micro Plate heat exchanger D118L-E-80 (STDPG)
Brand: DANFOSS REFRIGERATION
SKU: DAO021H2728
Price: 2873.06 USD
Availability: OutOfStock

Reference: 021H2728

Manufacturer: DANFOSS REFRIGERATION

Description:

Micro Plate heat exchanger D118L-E-80 (STDPG)

Heat Exchanger D118L-E-80 (STDPG)

Micro Plate heat exchanger, MPHE D118L-E

Categories:

DANFOSS REFRIGERATION

Brand new product in its original packaging covered by the warranties and certifications provided by DANFOSS REFRIGERATION

More Info
PDF
Reviews

Guarantee, repair and return.

Unit Price: 2.422,85 €

This price is per unit and is the net value (not including taxes if applicable).

Special discounts for registered customers.Login or register and prices will be updated.

Calculate price by quantity

Quantity	Price

Standard lead time: 4-5 days.

These delivery times are an estimate any may vary when the item order has been processed.
You will be notified of any change to delivery times once the order has been processed.
To this delivery time you have to add the time of transport from our logistics centre to your company.

LAST VIEWED

MORE INFO

Function: Evaporator, Max working pressure [psi]: 653, Number of plates: 80, Brazing material: Copper brazing

Product details

Gross weight	29.3 Kg
Net weight	28 Kg

Volume	41.113 Liter
EAN	5702424270650

Gross weight	29.3 Kg
Net weight	28 Kg
Volume	41.113 Liter
EAN	5702424270650

Application	Universal
Approval	EAC PED UL AS CRN KRAIA RoHS UA UKCA
Brazing material	Copper brazing
Design temperature range [°C] [max]	200 °C
Design temperature range [°C] [min]	-196 °C
Design temperature range [°F] [max]	320 °F
Design temperature range [°F] [min]	-390 °F
Equipment	Stud
EU RoHS compliance	Yes
Function	Evaporator
Function note	With distributor
In scope of WEEE and contain batteries	No
Max working pressure [psi]	653 psi
Max. Working Pressure [bar]	45 bar
Model No.	118
Number of plates	80
Packing format	Single pack
Plate material no.	AISI 316L

Plate material no.	AISI 316L
Plate pattern	EM
Product group	Heat exchangers
Product Name Description	Micro Plate heat exchanger
Q1 conn. size range	G2-1 5/8 in
Q1 conn. type	External thread connection
Q2 conn. size range	G2-1 5/8 in
Q2 conn. type	External connection
Q3 conn. size range	7/8 in
Q3 conn. type	Solder connection
Q4 conn. size range	1 3/8 in
Q4 conn. type	Solder connection
Quantity per packing format	1 pc
REACH Candidate List substances	No
Refrigerants	R134a R22 R404A R407A R407C R407F R410A R444B R448A R449A R450A R452A R452B R454B R455A R513A R600a R1233zd(E) R290 R11 R113 R114 R12 R123 R1234yf R1234ze R124 R152a R227ea R245fa R401A R402A R402B R407B R408A R409A R412A R413A R417A R422D R454C R500 R502 R507A R515B R508B
Type	MPHE D118L-E
Type designation	D118L-E

Application	Universal
Approval	EAC PED UL AS CRN KRAIA RoHS UA UKCA
Brazing material	Copper brazing
Design temperature range [°C] [max]	200 °C
Design temperature range [°C] [min]	-196 °C
Design temperature range [°F] [max]	320 °F
Design temperature range [°F] [min]	-390 °F
Equipment	Stud
EU RoHS compliance	Yes
Function	Evaporator
Function note	With distributor
In scope of WEEE and contain batteries	No
Max working pressure [psi]	653 psi
Max. Working Pressure [bar]	45 bar
Model No.	118
Number of plates	80
Packing format	Single pack
Plate material no.	AISI 316L
Plate material no.	AISI 316L
Plate pattern	EM
Product group	Heat exchangers
Product Name Description	Micro Plate heat exchanger
Q1 conn. size range	G2-1 5/8 in
Q1 conn. type	External thread connection
Q2 conn. size range	G2-1 5/8 in
Q2 conn. type	External connection
Q3 conn. size range	7/8 in
Q3 conn. type	Solder connection
Q4 conn. size range	1 3/8 in
Q4 conn. type	Solder connection
Quantity per packing format	1 pc
REACH Candidate List substances	No
Refrigerants	R134a R22 R404A R407A R407C R407F R410A R444B R448A R449A R450A R452A R452B R454B R455A R513A R600a R1233zd(E) R290 R11 R113 R114 R12 R123 R1234yf R1234ze R124 R152a R227ea R245fa R401A R402A R402B R407B R408A R409A R412A R413A R417A R422D R454C R500 R502 R507A R515B R508B
Type	MPHE D118L-E
Type designation	D118L-E
